ESP32-S3 Module

sneakylizard123-4·ESP32-S3_Module·kicad/ESP32-S3_Module.kicad_pcb

ESP32-S3 Module layout, top view — open source ESP32 board by sneakylizard123-4

About the ESP32-S3 Module

ESP32-S3 Module is an open source ESP32 PCB design by sneakylizard123-4, published on GitHub. It is a 4-layer board measuring 30 × 73 mm, with 48 components from 20 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the USBLC6-2SC6, IP5306 and TLV75733PDBV. By type, the board carries 17 capacitors, 11 resistors, 8 diodes, 4 ICs, 4 connectors and 3 switches.

It belongs with the iot & wireless and displays & leds designs in this gallery.

From the project

A Feather-like ESP32-S3 Module with IP5306 Battery charging and a built in Neopixel

A Feather-like ESP32-S3 Module with IP5306 Battery charging and a built in Neopixel

The Module is a 4 layer pcb with a dedicated ground inner layer

It is built off the ESP32-S3 series MCU to support WiFi/Bluetooth/Zigbee It has built in USB ESD protection. It can be programmed using UART/FTDI or throught the ESP32-S3's Native USB.

As the Module uses an ESP32, it can be programmed using ESP-IDF, Arduino IDE, or Platformio. To enter program mode: 1. Hold BOOT0 2. Press RESET 3. Release BOOT0 4. Start Flashing

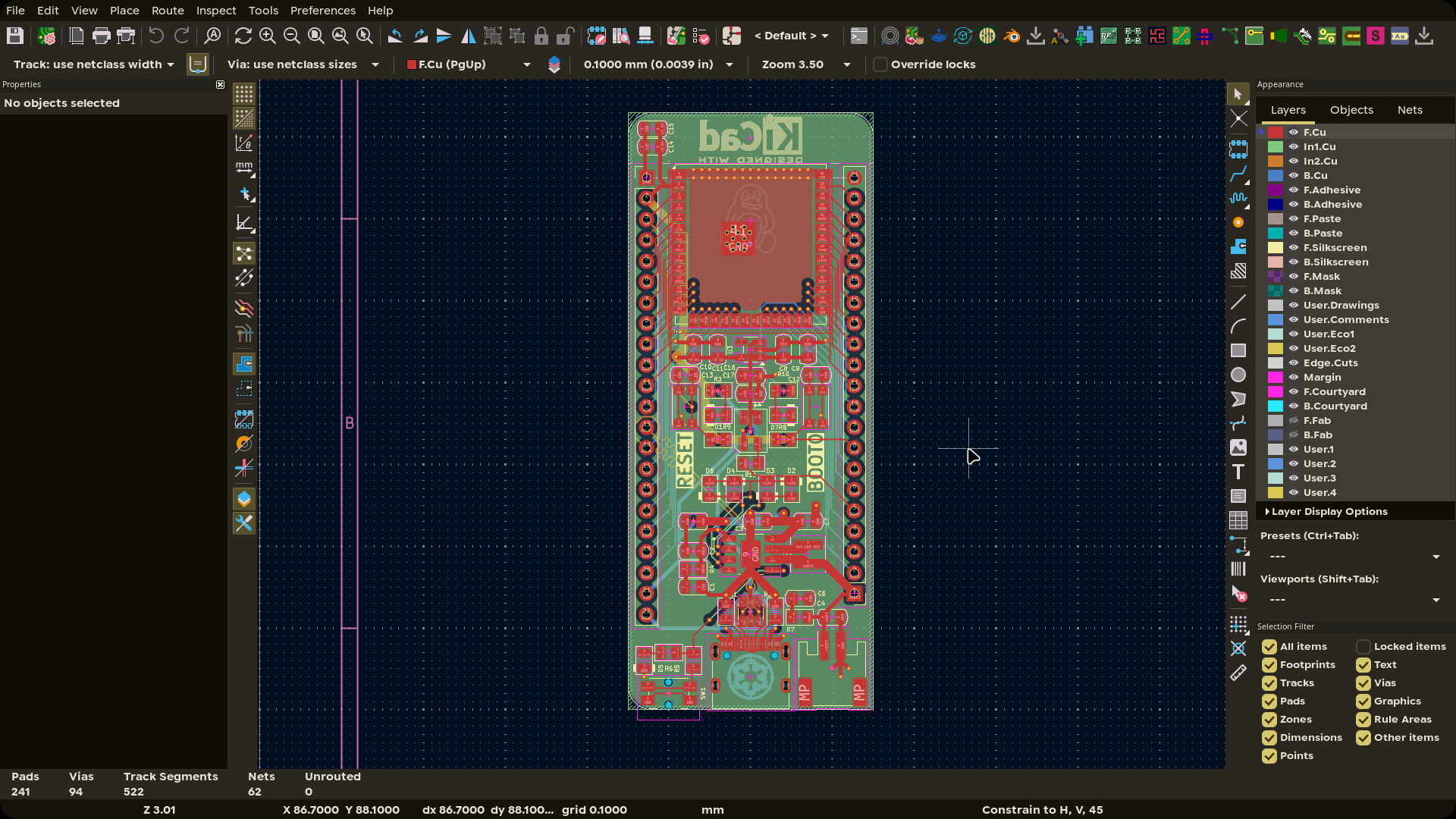

ESP32-S3 Module, from the project README
From the project README

Main components on the ESP32-S3 Module

USBLC6-2SC6IP5306TLV75733PDBVESP32-S3-WROOM-1

ESP32-S3 Module bill of materials (BOM)

48 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
IP5306
U2
1
TLV75733PDBV
U3
1
ESP32-S3-WROOM-1
U4
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
CONN_01X02
Conn_01x02
J2
1
CONN_01X22
Conn_01x22
J3
1
CONN_01X21
Conn_01x21
J4
1
SW_Push
SW1
2
SW_Push
SW2, SW3
7
LED
D1, D2, D3, D4, D5, D6, D7
1
WS2812B
D8
1
1uH XFL4020-102MEC
L1
8
10UF
10uF
C1, C2, C4, C6, C9, C11, C15, C17
3
22UF
22uF
C3, C5, C7
6
100NF
100nF
C8, C10, C12, C13, C14, C16
2
5.1K
5.1k
R1, R2
6
10K
10k
R3, R5, R6, R8, R9, R10
2
2
R4, R7
1
330
R11

ESP32-S3 Module design files

The KiCad project lives in the sneakylizard123-4/ESP32-S3_Module repository on GitHub; these links point at the commit this page was built from.

ESP32-S3 Module: common questions

What microcontroller does the ESP32-S3 Module use?

The ESP32-S3 Module is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the ESP32-S3 Module?

The ESP32-S3 Module measures 30 × 73 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ESP32-S3 Module?

48 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-S3 Module design files?

From the sneakylizard123-4/ESP32-S3_Module repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32-S3 Module design in my own project?

The repository has no license, so all rights stay with sneakylizard123-4. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32-S3 Module without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
