FPGA Board

sneakylizard123-4·FPGA_Board·kicad/FPGA_Board.kicad_pcb

FPGA Board layout, top view — open source FPGA board by sneakylizard123-4

About the FPGA Board

FPGA Board is an open source FPGA PCB design by sneakylizard123-4, published on GitHub. It is a 4-layer board measuring 50 × 70 mm, with 81 components from 29 distinct parts.

Its main chip is the ICE40UP5K-SG48ITR, from the FPGA family. Other key parts include the USBLC6-2SC6, TLV75712PDBV, TLV75725PDBV, TLV75733PDBV and 74AUC2G240. By type, the board carries 38 capacitors, 24 resistors, 9 ICs, 3 connectors, 3 inductors and 2 diodes.

From the project

It is built around the Lattice iCE40 FPGA, designed to be programmed over USB through the on-board FT232H. The SPI flash boots the bitstream on power-up. It is fully supported by the open-source yosys/nextpnr/icestorm flow.

It is built around the Lattice iCE40 FPGA, designed to be programmed over USB through the on-board FT232H. The SPI flash boots the bitstream on power-up. It is fully supported by the open-source yosys/nextpnr/icestorm flow.

As the board uses an iCE40 UltraPlus, it is programmed with yosys + nextpnr-ice40 + icepack + iceprog/icestorm.

Full CSVs: LCSC BOM KiCad generated BOM Pick and place

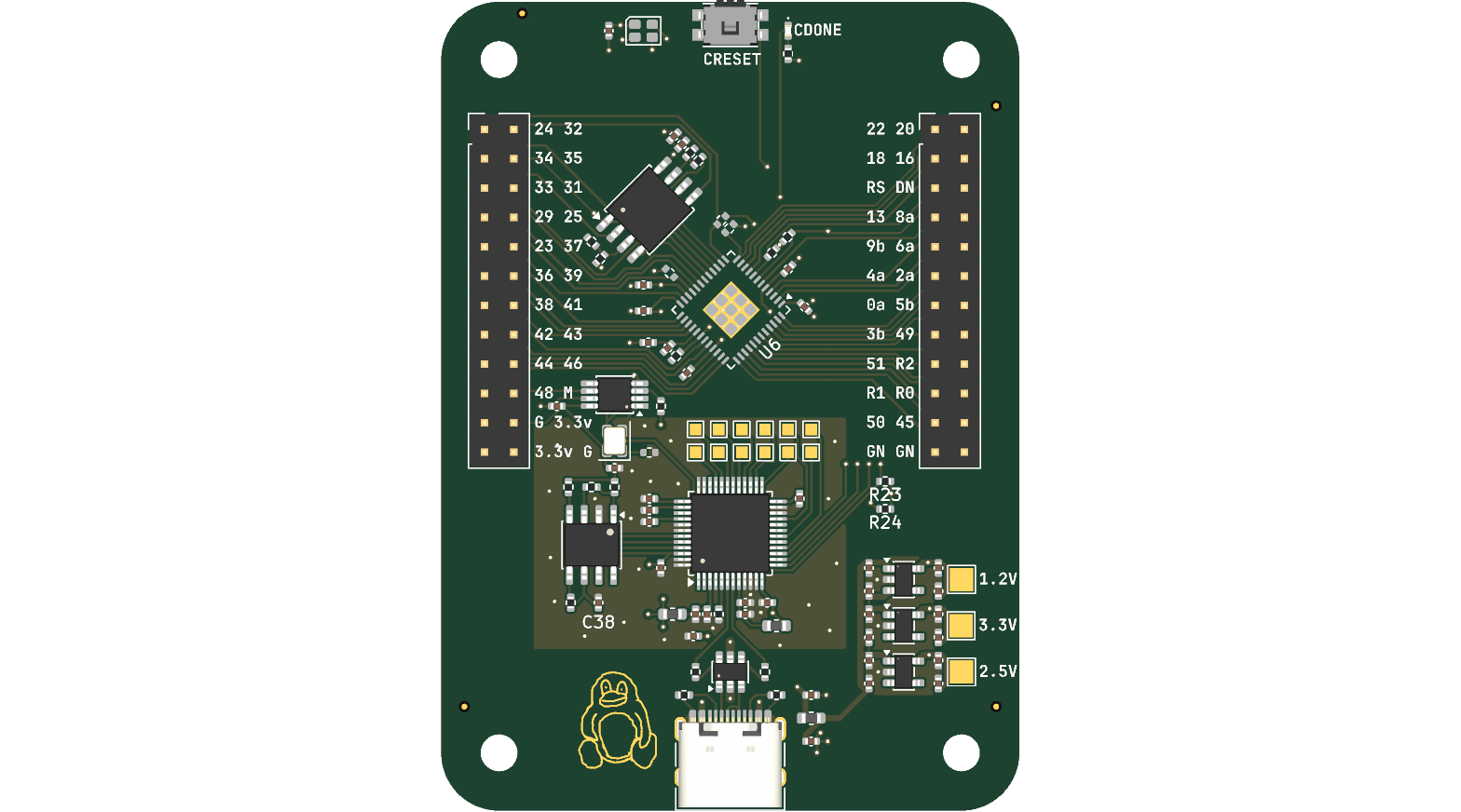

FPGA Board, from the project README
From the project README

Main components on the FPGA Board

USBLC6-2SC6TLV75712PDBVTLV75725PDBVTLV75733PDBV74AUC2G240ICE40UP5K-SG48ITRW25Q128JVSFT232H93LC56BT-I/OT

FPGA Board bill of materials (BOM)

81 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
TLV75712PDBV
U2
1
TLV75725PDBV
U3
1
TLV75733PDBV
U4
1
74AUC2G240
U5
1
ICE40UP5K-SG48ITR
U6
1
W25Q128JVS
U7
1
FT232H
U8
1
93LC56BT-I/OT
U9
1
SG-210STF
Y1
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
2
CONN_02X12_ODD_EVEN
Conn_02x12_Odd_Even
J3, J4
1
SW_Push
SW1
1
C2786
LED_ARGB
D1
1
C2286
GREEN
D2
3
BLM18HE152SN1D
FB1, FB2, FB3
12
10UF
10uF
C1, C2, C3, C4, C5, C12, C13, C14 +4
25
0.1UF
0.1uF
C6, C7, C8, C9, C10, C11, C15, C16 +17
1
4.7UF
4.7uF
C36
2
5.1K
5.1k
R1, R2
Show 9 more
QtyPartRefs
2
22
R3, R4
9
10K
10k
R5, R6, R10, R11, R19, R20, R21, R23 +1
1
1k
R7
3
C25887
0R
R8, R9, R14
1
100
R12
1
0
R13
3
0R
R15, R16, R17
1
12K
12k
R18
1
2.2K
2.2k
R22

FPGA Board design files

The KiCad project lives in the sneakylizard123-4/FPGA_Board repository on GitHub; these links point at the commit this page was built from.

FPGA Board: common questions

What microcontroller does the FPGA Board use?

The FPGA Board is built around the ICE40UP5K-SG48ITR, from the FPGA family.

How big is the FPGA Board?

The FPGA Board measures 50 × 70 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the FPGA Board?

81 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FPGA Board design files?

From the sneakylizard123-4/FPGA_Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FPGA Board design in my own project?

The repository has no license, so all rights stay with sneakylizard123-4. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the FPGA Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
