Keyboard PCB layout, top view — open source RP2040/RP2350 board by souptik-samanta

About the Keyboard PCB

Keyboard is an open source RP2040/RP2350 PCB design by souptik-samanta, published on GitHub. It is a 2-layer board measuring 440 × 150 mm, with 398 components from 38 distinct parts.

Its main chip is the RASPBERRY_PI_PICO, from the RP2040/RP2350 family. Other key parts include the CH224K, ESP-12F, MCP23017_ML, AMS1117-3.3 and CH340C. By type, the board carries 97 capacitors, 95 LEDs, 88 switches, 88 diodes, 11 resistors and 9 connectors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Below is an example Bill of Materials (BOM) for Soup_pad 88‐key keyboard build. This BOM lists the main electronic components, mechanical parts (switches, keycaps, stabilizers), and other necessary hardware ---

Below is an example Bill of Materials (BOM) for Soup_pad 88‐key keyboard build. This BOM lists the main electronic components, mechanical parts (switches, keycaps, stabilizers), and other necessary hardware ---

- keycaps - ssd1306 oled .96" - rpi pico - 79 ws2812b neopixel 5050 - below parts bought from grant (20$) - C1 805 1 1uf - C2, C3, C4, C5 805 4x 20 uf - C6 CPRadialD6.3mmP2.50mm 1x 100uF - usb c Receptacle - R1, R2 805 2x 4.7kΩ - R3 805 1x 220Ω - R4 805 1x 100Ω - R5, R6 805 2x 5.1k - S1, S3, S4 StabilizerCherryMX2.00u 3x MXstab - S2 StabilizerCherryMX6.25u 1x MXstab - S5…

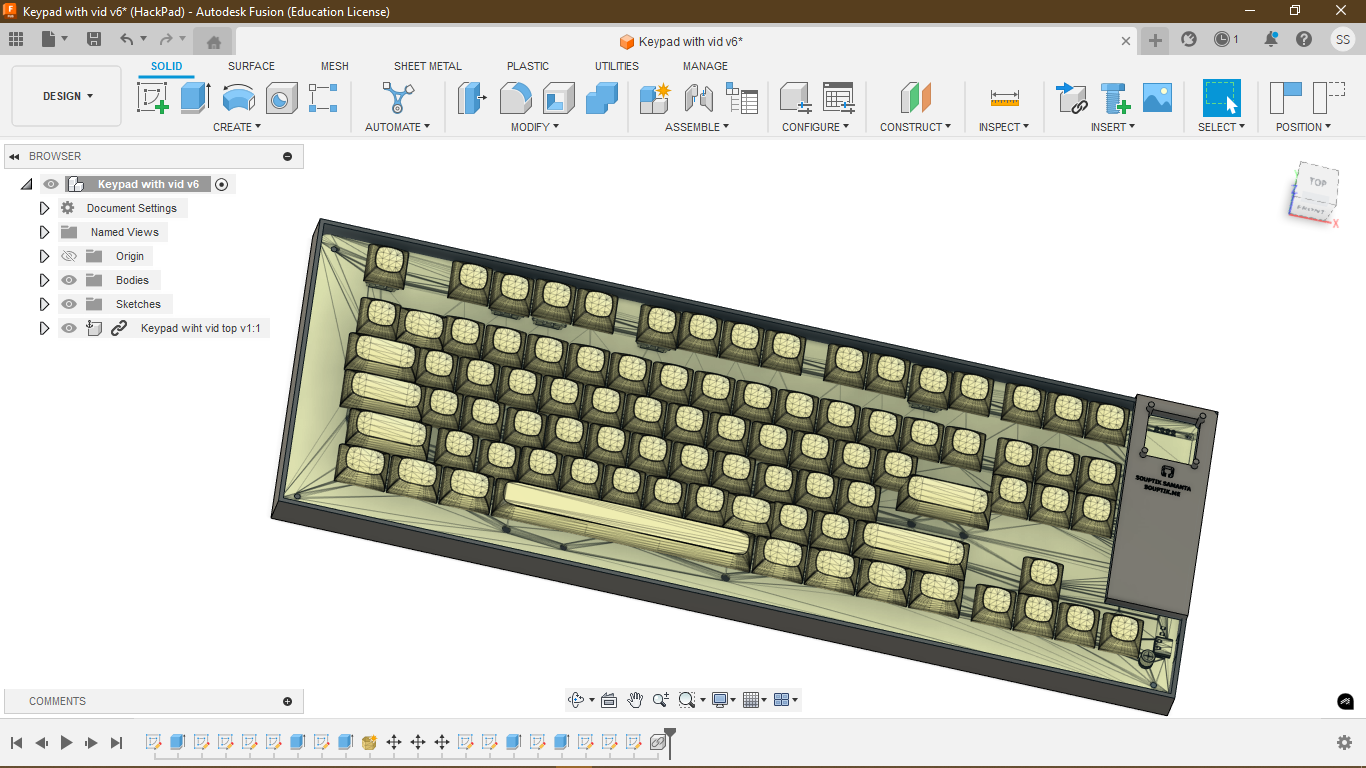

Keyboard, from the project README
From the project README

Main components on the Keyboard

CH224KRASPBERRY_PI_PICOESP-12FMCP23017_MLAMS1117-3.3CH340C

Keyboard bill of materials (BOM)

398 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
CH224K
U1, U7
1
RASPBERRY_PI_PICO
U2
1
ESP-12F
U3
1
MCP23017_ML
U4
1
AMS1117-3.3
U6
1
CH340C
U8
1
BSS138
Q6
2
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1, J9
1
CONN_01X02_PIN
Conn_01x02_Pin
J2
1
CONN_02X01
Conn_02x01
J3
1
USB_C_ESP
J4
1
CONN_01X06_SOCKET
Conn_01x06_Socket
J5
1
Jumper
J7
1
CONN_01X10_PIN
Conn_01x10_Pin
J8
1
CONN_02X06_ODD_EVEN
Conn_02x06_Odd_Even
J10
1
1uF
C_BMP_280
1
10uF
C_CH340
82
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +74
1
SW_Push_BACk
SW30
1
SW_Push_Enter
SW47
Show 18 more
QtyPartRefs
1
SW_Push
SW64
1
SW_Pushs
SW71
1
SW_Push_shift
SW76
1
SW_Push_Space
SW81
1
SSD1306
Brd1
88
SK6812MINI
DL1, DL2, DL3, DL4, DL5, DL6, DL7, DL8 +80
2
LED
Green1, Green2
4
SK6812MINI
Status_0, Status_1, Status_2, Status_3
88
D
D1, D2, D3, D4, D5, D6, D7, D8 +80
88
1UF
1uF
C1, C2, C3, C4, C5, C6, C7, C8 +80
1
10UF
10uF
C89
5
100UF
100uF
C90, C91, C96, C97, C98
1
10uF
C92_mcp1
2
0.1UF
0.1uF
C94, C95
5
10K
R1, R6, R7, R45, R46
2
4.7K
4.7k
R2, R3
2
5.1K
5.1k
R4, R5
2
300
R47, R48
