About the OpenFC PCB
OpenFC is an open source PCB design by tetraethylmethane, published on GitHub. It is a 6-layer board measuring 26.9 × 26.9 mm, with 97 components from 45 distinct parts.
Other key parts include the COS8051SOT, TLV7031DPWR, LMR51430YFDDCR, LP5912-3.3DRVR and SM06B-SRSS-TB(LF)(SN). By type, the board carries 35 capacitors, 34 resistors, 11 ICs, 8 diodes, 3 inductors and 2 transistors.
It belongs with the wearables designs in this gallery.
From the project

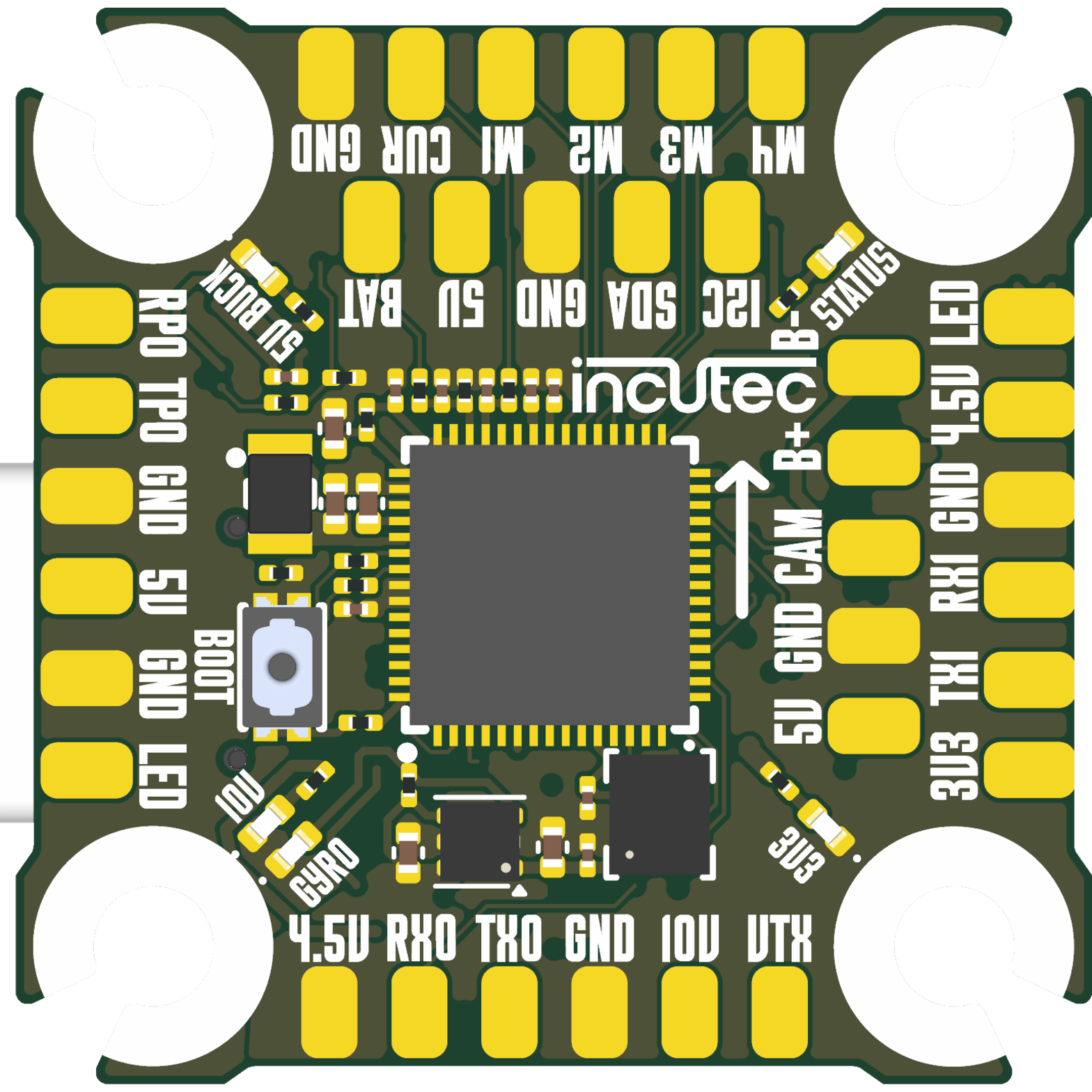

Open source Betaflight flight controller built on the RP2354A, 20 x 20 mm mounting pattern, part of the incutec OpenDrone line.
Open source Betaflight flight controller built on the RP2354A, 20 x 20 mm mounting pattern, part of the incutec OpenDrone line.
Technical write-up, part list and layout constraints: AGENTS.md.
What pairs with what, and what is available: opendrone.be.
Hardware licensed under CERN-OHL-S-2.0, see LICENSE.
Main components on the OpenFC
OpenFC bill of materials (BOM)
97 components, 45 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | COS8051SOT Cosine | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | U1 |
| 1 | TLV7031DPWR TI(德州仪器) | X2SON-4_L0.8-W0.8-P0.48-TL-A | U2 |
| 2 | LMR51430YFDDCR Texas Instruments | SOT-23-6_L2.9-W1.6-P0.95-LS2.9-BL | U3, U4 |
| 1 | LP5912-3.3DRVR Texas Instruments | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U7 |
| 1 | SM06B-SRSS-TB(LF)(SN) JST | CONN-SMD_SM06B-SRSS-TB-LF-SN | U8 |
| 1 | BMI270 Bosch | LGA-14_L3.0-W2.5-P0.50-BR | U9 |
| 1 | RP2354A Raspberry Pi(树莓派) | QFN-60_L7.0-W7.0-P0.40-TL-EP3.4 | U10 |
| 1 | TS2306A 240gf MSM 9 TS2306A 240GF MSM 9_C2976675 SHOU HAN | SW-SMD_4P-L3.0-W2.0-P0.85-LS3.5 | U11 |
| 1 | LP5912-1.8DRVR TI(德州仪器) | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm_ThermalVias | U12 |
| 1 | SN74LVC1G3157DTBR Texas Instruments | X2SON-6_L1.0-W0.8-BL | U18 |
| 2 | AP1606 Diodes Incorporated | DFN-3L_L1.0-W0.6-P0.65-BR | Q5, Q6 |
| 1 | XTM25012000JT00351001 TOGNJING | CRYSTAL-SMD_4P-L2.5-W2.0-BL-A | X1 |
| 1 | SM08B-SRSS-TB(LF)(SN) JST | CONN-TH_SM08B-SRSS-TB-LF-SN | P1 |
| 1 | TF-021B-H265 SOFNG | TF-SMD_TF-021B-H265 | Card1 |
| 1 | TYPE-C 16P QTWT SHOU HAN | USB-TYPE-C-SMD_TYPE-C-16P-QTWT | USB1 |
| 1 | XL-1005UBC LED_1_Blue XINGLIGHT | LED_0402_1005Metric | D2 |
| 4 | XL-1005UGC LED_1_Green XINGLIGHT | LED_0402_1005Metric | D4, D5, D7, D8 |
| 2 | DSK24 MDD | SOD-123_L2.8-W1.8-LS3.7-RD | D6, D10 |
| 1 | SDM02U30LP3-7B Diodes Incorporated | X3-DFN0603-2_L0.6-W0.3-RD | D9 |
| 2 | XRTC303020D4R7MBCA XR | IND-SMD_L3.0-W3.0_AFE303020S | L2, L3 |
Show 25 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AOTA-B201610S3R3-101-T Abracon | IND-SMD_L2.0-W1.6_AOTA-B201610S3R3-101-T | L4 |
| 17 | GRM033R61E104KE14D 100n Murata Electronics | C_0201_0603Metric | C1, C3, C4, C5, C7, C8, C9, C11 +9 |
| 2 | GRM0335C1H200JA01D 20p Murata Electronics | C_0201_0603Metric | C6, C10 |
| 2 | CL21A475KBQNNNE 4.7uF 50v Samsung Electro-Mechanics | C_0805_2012Metric | C24, C25 |
| 2 | CL10A226MO7JZNC 22uF Samsung Electro-Mechanics | C_0603_1608Metric | C28, C29 |
| 5 | CL05A475MP5NRNC 4.7uF Samsung Electro-Mechanics | C_0402_1005Metric | C31, C37, C44, C45, C46 |
| 2 | GRM155R60J226ME11D 22uF Murata | C_0402_1005Metric | C33, C34 |
| 1 | CC0201JRX7R9BB471 470p YAGEO | C_0201_0603Metric | C38 |
| 3 | GRM033R60J104KE19D 100n Murata Electronics | C_0201_0603Metric | C39, C41, C42 |
| 1 | CL05A105KA5NQNC 1uF Samsung Electro-Mechanics | C_0402_1005Metric | C40 |
| 4 | 0201WMF1003TEE 100k UNI-ROYAL | R_0201_0603Metric | R1, R23, R29, R31 |
| 4 | RC0201FR-0710KL 10k YAGEO | R_0201_0603Metric | R2, R38, R39, R49 |
| 4 | 0201WMF5101TEE 5.1k UNI-ROYAL | R_0201_0603Metric | R3, R4, R6, R7 |
| 2 | 0201WMF1001TEE 1k UNI-ROYAL | R_0201_0603Metric | R5, R9 |
| 3 | NQ01WMJ0300TEE 30R UNI-ROYAL | R_0201_0603Metric | R15, R24, R37 |
| 2 | AF0201FR-076K49L 6.49k YAGEO | R_0201_0603Metric | R30, R34 |
| 1 | RC-01W1372FT 13.7k YAGEO | R_0201_0603Metric | R32 |
| 1 | RC0201FR-077K5L 7.5k YAGEO | R_0201_0603Metric | R33 |
| 3 | RC0201FR-07510RL 510R YAGEO | R_0201_0603Metric | R36, R46, R47 |
| 4 | RC0201FR-0775RL 75R YAGEO | R_0201_0603Metric | R41, R48, R52, R53 |
| 1 | RC0201FR-073K9L 3.9k YAGEO | R_0201_0603Metric | R42 |
| 1 | 0201WMF1202TEE 12k UNI-ROYAL | R_0201_0603Metric | R43 |
| 1 | 0201WMF1401TEE 1.4k UNI-ROYAL | R_0201_0603Metric | R44 |
| 1 | 0201WMF6800TEE 680R UNI-ROYAL | R_0201_0603Metric | R45 |
| 2 | RTT012401FTH 2.4k RALEC | R_0201_0603Metric | R50, R51 |
OpenFC design files
The KiCad project lives in the tetraethylmethane/NIDAR-RescueSwarm repository on GitHub; these links point at the commit this page was built from.
OpenFC: common questions
How big is the OpenFC PCB?
The OpenFC measures 26.9 × 26.9 mm, has 6 copper layers and is 1 mm thick.
How many components are on the OpenFC?
97 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OpenFC design files?
From the tetraethylmethane/NIDAR-RescueSwarm repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OpenFC design in my own project?
The repository has no license, so all rights stay with tetraethylmethane. Use it as a reference, and ask the author before reusing the design.
