BLDC Driver 4.6

UofSSpaceTeam·rover-hardware·Projects/Communication/VESC-R/VESC-R.kicad_pcb

BLDC Driver 4.6 PCB layout, top view — open source STM32 board by UofSSpaceTeam

About the BLDC Driver 4.6 PCB

BLDC Driver 4.6 is an open source STM32 PCB design by UofSSpaceTeam, published on GitHub. It is a 2-layer board measuring 75.2 × 49.3 mm, with 112 components from 35 distinct parts.

Its main chip is the STM32F40X_LQFP64, from the STM32 family. Other key parts include the TC2117, DRV8302 and MCP2562FD. By type, the board carries 42 resistors, 41 capacitors, 6 transistors, 4 ICs, 4 diodes and 1 crystal.

It belongs with the robotics & motion designs in this gallery.

From the project

Hardware design files for the Rover project.

VESC -R ============= Forked from the VESC Open Source ESC Project (http://vedder.se/2015/01/vesc-open-source-esc/) This the Hardware for the USST's version of the VESC

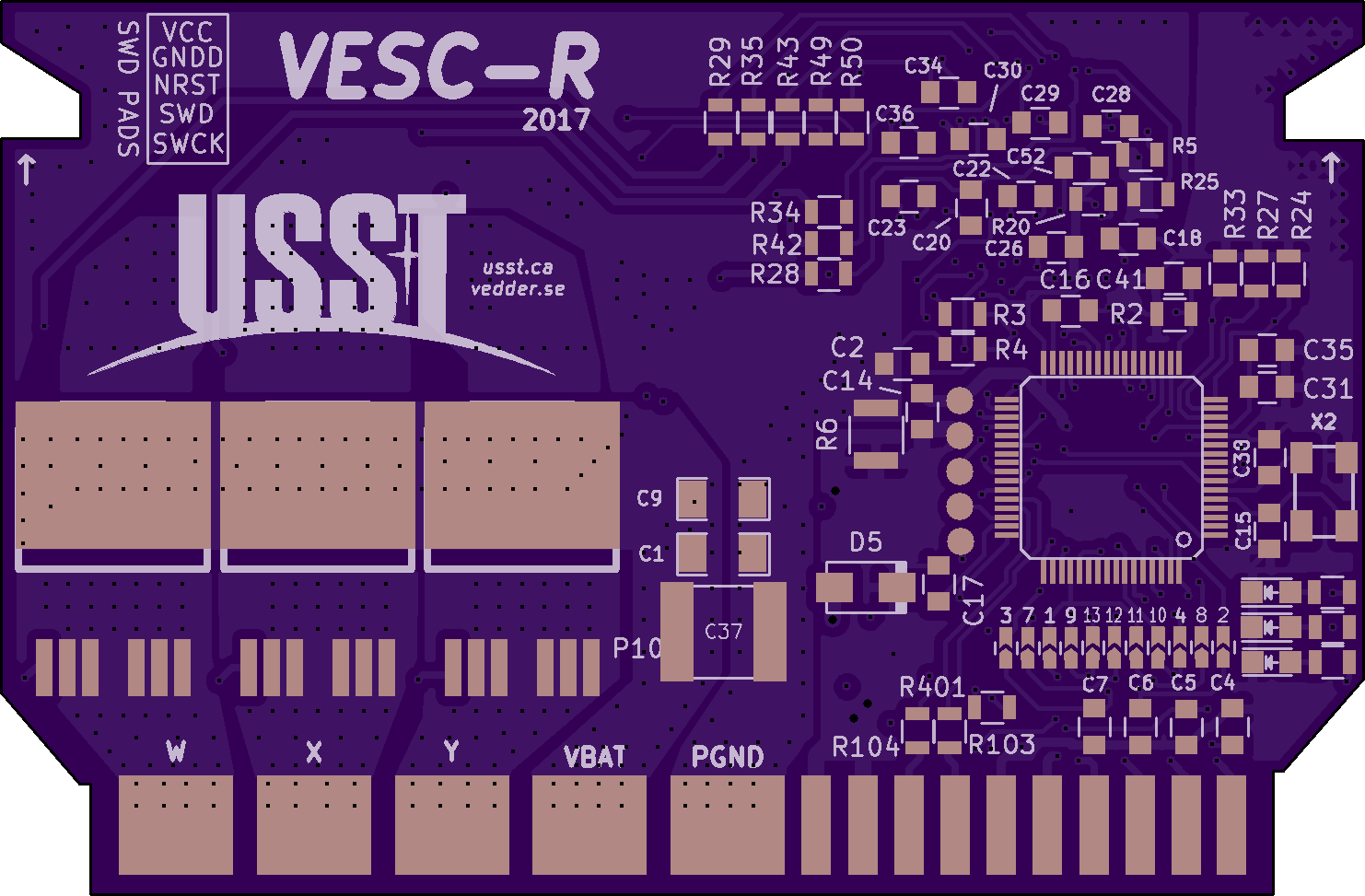

BLDC Driver 4.6, from the project README
From the project README

Main components on the BLDC Driver 4.6

STM32F40X_LQFP64TC2117DRV8302MCP2562FD

BLDC Driver 4.6 bill of materials (BOM)

112 components, 35 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F40X_LQFP64
U1
1
TC2117
U2
1
DRV8302
U3
1
MCP2562FD
U401
6
IRFS7530
Q1, Q2, Q3, Q4, Q5, Q6
1
CRYSTAL_GROUND_PIN
X2
1
AMP17614426-2_EDGE
P10
13
Jumper_NC_Small
1, 2, 3, 4, 5, 6, 7, 8 +5
1
GREEN
D1
1
RED
D2
1
LED
D3
1
TVS 5V
D5
7
10u,50V
C1, C8, C9, C40, C43, C44, C49
2
100n
C2, C32
4
4n7
C4, C5, C6, C7
17
2.2u
C10, C11, C12, C13, C14, C16, C17, C18 +9
2
15p
C15, C38
1
22n
C22
1
100u
C25
3
220n
C28, C29, C30
Show 15 more
QtyPartRefs
2
2.2n
C34, C36
1
15u,100V
C37
1
15u, 100v
C51
1
NTC 10k
R1
6
10k
R2, R7, R8, R9, R10, R20
7
39k
R3, R23, R26, R30, R32, R36, R46
8
2k2
R4, R11, R12, R13, R22, R24, R27, R33
1
1k
R5
1
0
R6
1
1M
R25
6
4R7
R28, R29, R34, R35, R42, R43
6
100R
R37, R38, R48, R49, R50, R51
2
SHUNT
R53, R54
2
22R
R103, R104
1
NI
R401

BLDC Driver 4.6 design files

The KiCad project lives in the UofSSpaceTeam/rover-hardware repository on GitHub; these links point at the commit this page was built from.

BLDC Driver 4.6: common questions

What microcontroller does the BLDC Driver 4.6 use?

The BLDC Driver 4.6 is built around the STM32F40X_LQFP64, from the STM32 family.

How big is the BLDC Driver 4.6 PCB?

The BLDC Driver 4.6 measures 75.2 × 49.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BLDC Driver 4.6?

112 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BLDC Driver 4.6 design files?

From the UofSSpaceTeam/rover-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the BLDC Driver 4.6 design in my own project?

The repository has no license, so all rights stay with UofSSpaceTeam. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the BLDC Driver 4.6 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
