USTSIPIN03 PCB layout, top view — open source board by ust-modules

About the USTSIPIN03 PCB

USTSIPIN03 is an open source PCB design by ust-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 70.6 × 50.3 mm, with 85 components from 31 distinct parts.

Other key parts include the ISL21080CIH341Z-TK, AD8691, LTC1865-MS, SN74LVC2G74 and TS3021ILT. By type, the board carries 48 capacitors, 18 resistors, 14 ICs, 1 module, 1 transistor and 1 connector.

It belongs with the science & space and sensors designs in this gallery.

From the project

Semiconductor based ionizing radiation dosimeter and spectrometer.

The USTSIPIN03 is developed as a single-board improved variant of the PIND02 and PCRD07 modules from the MLAB.cz development system. The analog front-end is the sensing component of the AIRDOS04 cosmic radiation detector and dosimeter.

High-sensitivity silicon semiconductor PIN diode detector front-end Low-noise analog signal chain optimized for wide-energy radiation detection Designed for spectrometric and dosimetric measurements Suitable for connection to system MCU or FPGA via SPI interface * Auxiliary I2C interface for service and calibration data access

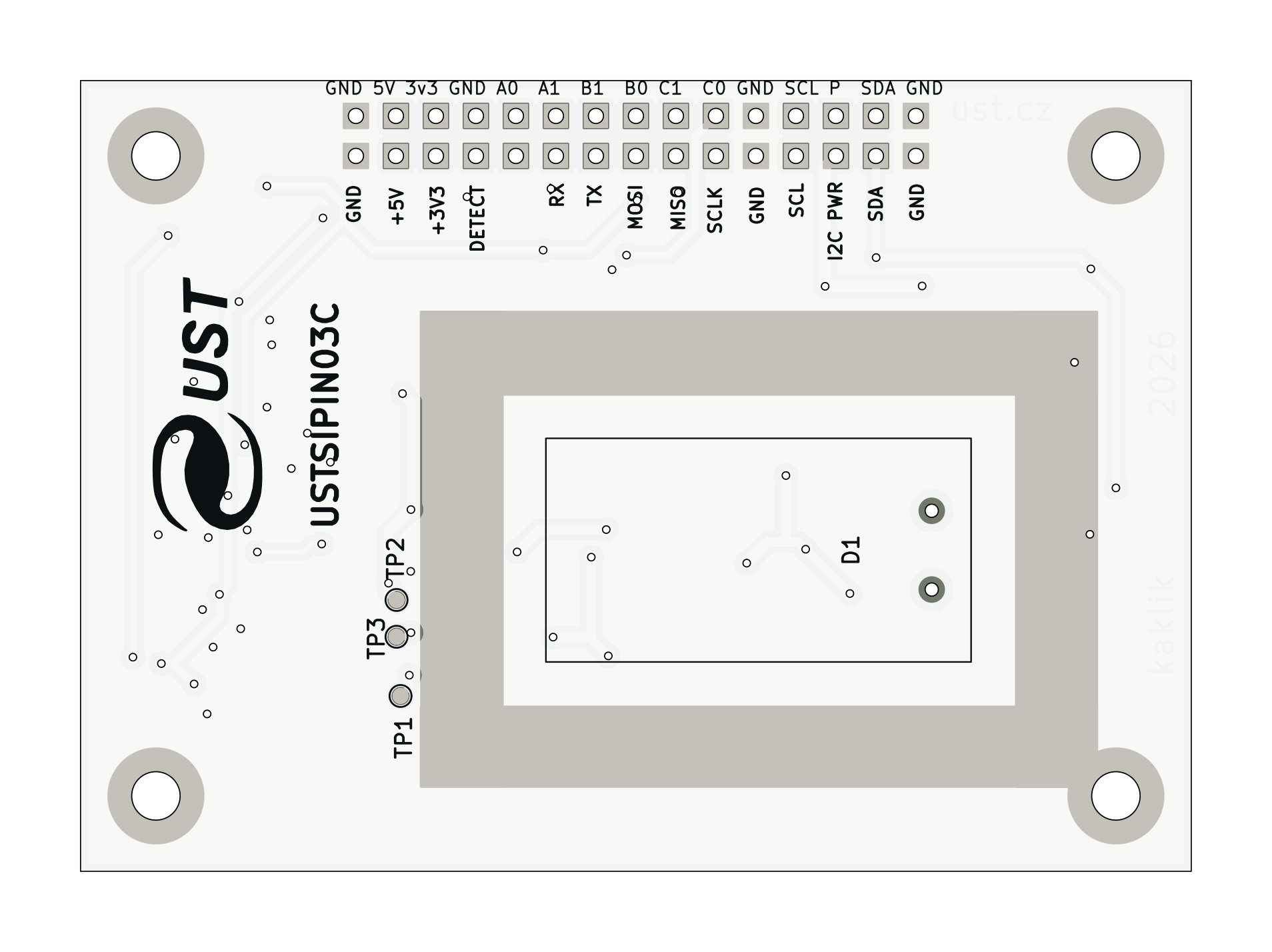

USTSIPIN03, from the project README
From the project README

Main components on the USTSIPIN03

ISL21080CIH341Z-TKAD8691LTC1865-MSSN74LVC2G74TS3021ILTSHT31-DISOPA314ISL21080DIH309AT24CS64-SSHMSN74LVC2T45DCUMIC5504-3.3YM5

USTSIPIN03 bill of materials (BOM)

85 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ISL21080CIH341Z-TK
U1
2
AD8691
U2, U4
1
LTC1865-MS
U3
1
SN74LVC2G74
U5
1
TS3021ILT
U6
1
SHT31-DIS
U7
1
OPA314
U8
1
ISL21080DIH309
U10
1
AT24CS64-SSHM
U11
3
SN74LVC2T45DCU
U12, U13, U14
1
MIC5504-3.3YM5
MIC5504-3.3YM5-TR
U15
1
RFShield_TwoPieces
M5
1
2SK2394-6
Q1
1
HEADER_2X15
HEADER_2x15
J1
1
S2744-09
D1
1
NL03KT330
L1
27
100NF
100nF
C1, C2, C4, C5, C7, C8, C10, C12 +19
9
10UF
10uF
C3, C6, C9, C11, C13, C21, C26, C27 +1
1
3N3
3n3
C15
2
1NF
1nF
C16, C48
Show 11 more
QtyPartRefs
3
1UF
1uF
C22, C29, C32
1
1PF
1pF
C25
1
1UF
1uF
C37
4
10UF
10uF
C39, C40, C49, C51
3
100
R1, R2, R3
4
10K
10k
R4, R5, R29, R30
1
10
R6
1
1k
R7
3
470R
R10, R19, R21
5
4K7
4k7
R12, R14, R15, R16, R17
1
10M
R13

USTSIPIN03 design files

The KiCad project lives in the ust-modules/USTSIPIN03 repository on GitHub; these links point at the commit this page was built from.

USTSIPIN03: common questions

How big is the USTSIPIN03 PCB?

The USTSIPIN03 measures 70.6 × 50.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the USTSIPIN03?

85 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the USTSIPIN03 design files?

From the ust-modules/USTSIPIN03 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the USTSIPIN03 design in my own project?

Yes, under the terms of its GPL-3.0 license, which ust-modules chose for the repository.
