Zx multisound

UzixLS·zx-multisound·pcb/rev.A2/zx-multisound.kicad_pcb

Zx multisound PCB layout, top view — open source board by UzixLS
Simulate this board

About the Zx multisound PCB

Zx multisound is an open source PCB design by UzixLS, published on GitHub under the MIT license. It is a 2-layer board measuring 170 × 64 mm, with 173 components from 33 distinct parts.

Other key parts include the LM358D, AS6C4008-55SIN, YM2203, Z84C0020FEC and YM3014B. By type, the board carries 85 capacitors, 60 resistors, 22 ICs, 4 connectors, 1 crystal and 1 switch.

It belongs with the test & measurement and audio designs in this gallery.

From the project

ZX Spectrum soundcard for NEMOBUS/ZXBUS

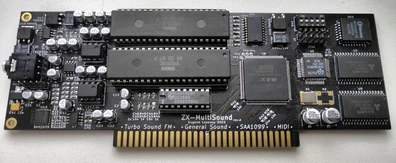

Zx multisound, from the project README
From the project README

Main components on the Zx multisound

LM358DAS6C4008-55SINYM2203Z84C0020FECYM3014BEPM3256ATC14427C512SAM269574HCT245D1117-3.378M05SAA109974AHCT1G125DB

Zx multisound bill of materials (BOM)

173 components, 33 distinct parts.

QtyPartRefs
3
LM358D
U1, U2, U7
2
AS6C4008-55SIN
U3, U9
2
YM2203
U4, U10
1
Z84C0020FEC
U5
2
YM3014B
U6, U12
1
EPM3256ATC144
U8
1
27C512
U11
1
SAM2695
U13
1
74HCT245D
U14
2
1117-3.3
U15, U19
3
78M05
U16, U17, U18
1
SAA1099
U20
2
74AHCT1G125DB
U21, U23
1
32MHz
X1
1
PJ307
J1
2
Conn_01x04
J2, J3
1
Conn_02x05_Odd_Even
J5
1
SW_DIP_x05
SW1
22
10u
C1, C2, C3, C5, C6, C7, C8, C9 +14
39
100n
C4, C15, C24, C25, C28, C48, C49, C50 +31
Show 13 more
QtyPartRefs
2
2.2n
C20, C27
7
10u
C26, C29, C33, C35, C37, C39, C41
8
10n
C30, C31, C32, C43, C44, C45, C46, C47
2
22u
C34, C42
3
100u/10V
C36, C38, C40
2
100u/16V
C75, C76
6
24k
R1, R13, R14, R28, R29, R34
21
10k
R2, R4, R15, R18, R20, R21, R24, R25 +13
14
47k
R5, R6, R7, R12, R16, R17, R19, R26 +6
6
3.3k
R8, R9, R10, R35, R36, R37
1
27k
R11
10
1k
R22, R39, R43, R44, R45, R46, R47, R48 +2
2
470
R23, R40

Zx multisound design files

The KiCad project lives in the UzixLS/zx-multisound repository on GitHub; these links point at the commit this page was built from.

Zx multisound: common questions

How big is the Zx multisound PCB?

The Zx multisound measures 170 × 64 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Zx multisound?

173 components, from 33 distinct parts. The full bill of materials is listed on this page.

Where can I download the Zx multisound design files?

From the UzixLS/zx-multisound repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Zx multisound design in my own project?

Yes, under the terms of its MIT license, which UzixLS chose for the repository.
