Zx sizif-512-ext

UzixLS·zx-sizif-512-ext·pcb/rev.A/sizif512ext.kicad_pcb

Zx sizif-512-ext PCB layout, top view — open source board by UzixLS
Simulate this board

About the Zx sizif-512-ext PCB

Zx sizif-512-ext is an open source PCB design by UzixLS, published on GitHub under the MIT license. It is a 2-layer board measuring 213 × 64 mm, with 145 components from 34 distinct parts.

Other key parts include the MCP602, Z84C0020PEC, YM2203, YM3014B and EPM3256ATC144. By type, the board carries 71 capacitors, 52 resistors, 14 ICs, 3 jumpers, 2 connectors and 2 inductors.

It belongs with the test & measurement designs in this gallery.

From the project

Extension board for Sizif-512

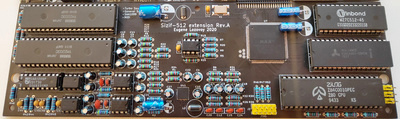

Zx sizif-512-ext, from the project README
From the project README

Main components on the Zx sizif-512-ext

MCP602Z84C0020PECYM2203YM3014BEPM3256ATC14427C512SAM2695AS6C4008-55PCNAMS1117-3.3SAA1099

Zx sizif-512-ext bill of materials (BOM)

145 components, 34 distinct parts.

QtyPartRefs
3
MCP602
U1, U2, U6
1
Z84C0020PEC
U3
2
YM2203
U4, U9
2
YM3014B
U5, U10
1
EPM3256ATC144
U7
1
27C512
U8
1
SAM2695
U11
1
AS6C4008-55PCN
U12
1
AMS1117-3.3
U13
1
SAA1099
U14
1
32MHz
X1
1
Conn_02x25_Odd_Even
J1
1
PinHeader
J2
3
Jumper / Pin header 1x2 Pitch=2.54mm
JP1, JP2, JP3
1
220u/1A
L1
1
220u/0.2A
L2
22
10u/16V
C1, C2, C3, C4, C5, C7, C8, C9 +14
15
100n
C6, C17, C30, C38, C39, C40, C41, C60 +7
4
1n
C12, C20, C24, C25
2
2.2n
C23, C31
Show 14 more
QtyPartRefs
20
100n
C26, C32, C35, C43, C48, C49, C50, C51 +12
2
220u/16V
C34, C36
1
470u/16V
C37
1
47u/16V
C42
4
10n
C44, C45, C46, C47
14
24k
R1, R4, R6, R8, R13, R17, R18, R19 +6
11
10k
R2, R15, R25, R33, R46, R47, R48, R49 +3
5
2k
R3, R26, R32, R35, R39
5
47k
R5, R14, R16, R22, R27
2
2.2k
R7, R20
1
27k
R9
6
3.3k
R10, R11, R12, R36, R37, R38
6
1k
R23, R40, R42, R43, R44, R45
2
470
R24, R41

Zx sizif-512-ext design files

The KiCad project lives in the UzixLS/zx-sizif-512-ext repository on GitHub; these links point at the commit this page was built from.

Zx sizif-512-ext: common questions

How big is the Zx sizif-512-ext PCB?

The Zx sizif-512-ext measures 213 × 64 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Zx sizif-512-ext?

145 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the Zx sizif-512-ext design files?

From the UzixLS/zx-sizif-512-ext repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Zx sizif-512-ext design in my own project?

Yes, under the terms of its MIT license, which UzixLS chose for the repository.
