About the Sbc allwinner F1C200s PCB

Sbc allwinner F1C200s is an open source ESP32 PCB design by vd-rd, published on GitHub. It is a 4-layer board measuring 60 × 44 mm, with 105 components from 38 distinct parts.

Its main chip is the ESP32-S3-MINI-1U, from the ESP32 family. Other key parts include the MCP1640CH, AXP173, AP22811, F1C100s and PCA6408A. By type, the board carries 51 capacitors, 23 resistors, 10 diodes, 8 ICs, 5 connectors and 5 inductors.

It belongs with the iot & wireless designs in this gallery.

From the project

Open hardware board for Allwinner F1C100s/F1C200s processor with 32/64MB RAM, IO expansion and MicroSD storage

This board embeds a SIP (single core 533MHz ARM926EJ-S with 64MB DDR) with AXP173 PMIC, IO headers and microSD/eMMC storage. The board is also compatible with the smaller F1C100s that only embedds 32MB DDR RAM.

Note: The uC has two SDIO controllers (SDIO0 - 4bit wide, SDIO1 - 1bit wide). SDIO0 is used for SDCard. To provide wireless networking, while not sacrificing a large amount of pins, a design decision was made to use ESP32 module to provide WiFi/BT capabilities connected via SPI bus, leveraging ESPHOSTEDNG as a solution. ## Board overview (draft):

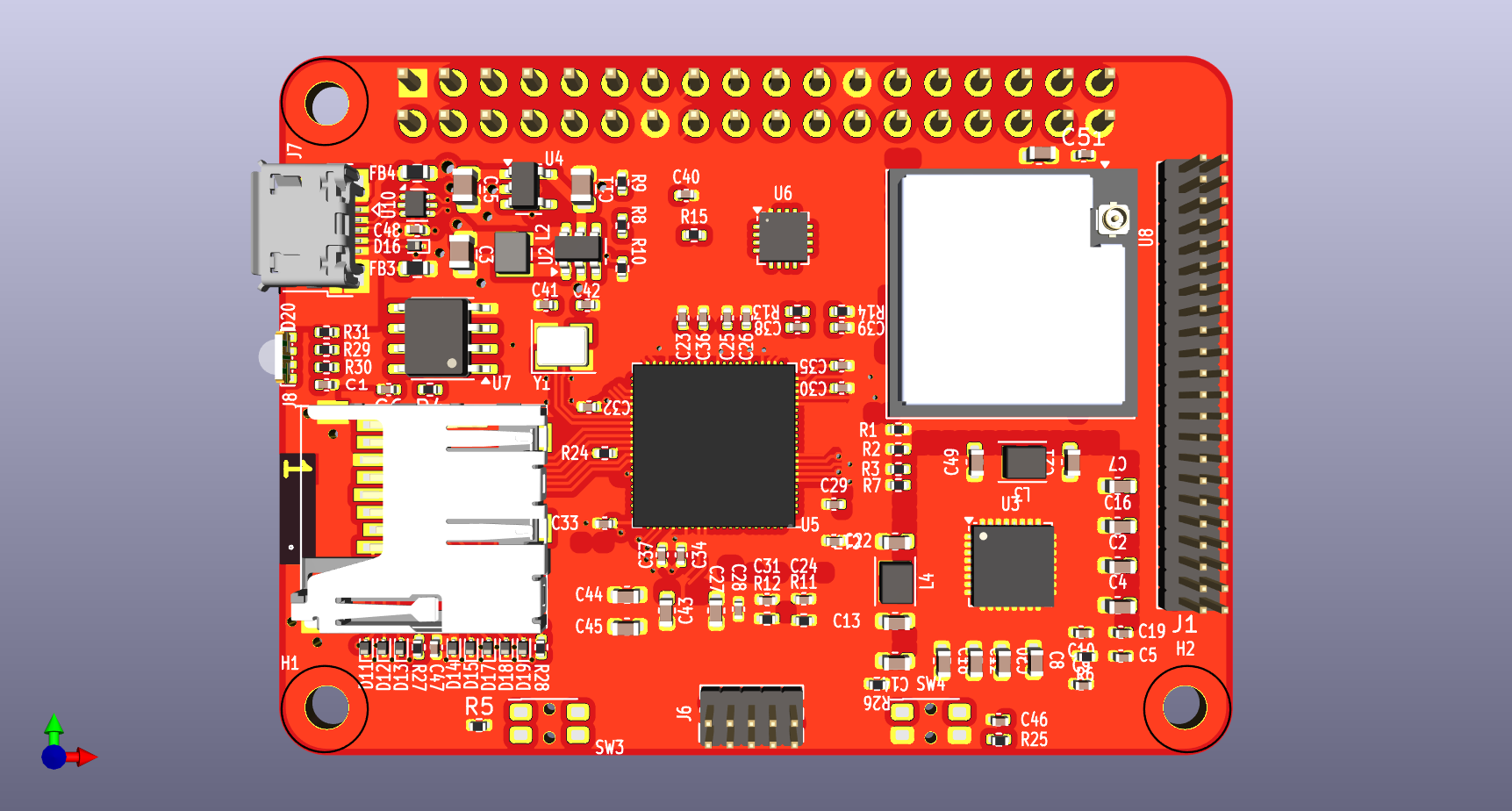

Sbc allwinner F1C200s, from the project README
From the project README

Main components on the Sbc allwinner F1C200s

MCP1640CHAXP173AP22811F1C100sPCA6408AAT25SF081-SSHD-XESP32-S3-MINI-1UUSBLC6-2P6

Sbc allwinner F1C200s bill of materials (BOM)

105 components, 38 distinct parts.

QtyPartRefs
1
MCP1640CH
U2
1
AXP173
U3
1
AP22811
U4
1
F1C100s
U5
1
PCA6408A
U6
1
AT25SF081-SSHD-X
U7
1
ESP32-S3-MINI-1U
U8
1
USBLC6-2P6
U10
1
24MHz
Y1
1
Conn_02x22_Odd_Even
J1
1
Conn_02x18_Odd_Even
J5
1
Conn_02x05_Odd_Even
J6
1
USB_B_Micro
J7
1
Micro_SD_Card_Det
J8
2
SW_Push
SW3, SW4
8
3V3
D11, D12, D13, D14, D15, D17, D18, D19
1
5V
D16
1
LED_RGBA
D20
2
FerriteBead_Small
FB3, FB4
1
L_Small
L2
Show 18 more
QtyPartRefs
2
4.7uH
L3, L4
9
100nF
C1, C9, C25, C28, C38, C39, C46, C48 +1
12
10uF
C2, C4, C7, C13, C16, C17, C20, C21 +4
3
10uF
C3, C11, C15
17
1uF
C5, C6, C10, C19, C22, C23, C24, C29 +9
6
4.7uF
C8, C12, C14, C18, C44, C45
1
1nF
C26
2
22pF
C41, C42
1
10uF
C47
6
10k
R1, R3, R7, R26, R27, R28
4
2.2k
R2, R13, R14, R15
2
100k
R4, R10
2
1k
R5, R25
3
200k
R6, R11, R12
1
976k
R8
1
562k
R9
1
R_Small
R24
3
240
R29, R30, R31

Sbc allwinner F1C200s design files

The KiCad project lives in the vd-rd/sbc_allwinner_F1C200s repository on GitHub; these links point at the commit this page was built from.

Sbc allwinner F1C200s: common questions

What microcontroller does the Sbc allwinner F1C200s use?

The Sbc allwinner F1C200s is built around the ESP32-S3-MINI-1U, from the ESP32 family.

How big is the Sbc allwinner F1C200s PCB?

The Sbc allwinner F1C200s measures 60 × 44 mm, has 4 copper layers and is 0.99 mm thick.

How many components are on the Sbc allwinner F1C200s?

105 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sbc allwinner F1C200s design files?

From the vd-rd/sbc_allwinner_F1C200s repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Sbc allwinner F1C200s design in my own project?

The repository has no license, so all rights stay with vd-rd. Use it as a reference, and ask the author before reusing the design.
