Alcantara

zenitheesc·Alcantara·KiCad_Files/Alcantara_v.1.0.kicad_pcb

Alcantara PCB layout, top view — open source ESP32 board by zenitheesc

About the Alcantara PCB

Alcantara is an open source ESP32 PCB design by zenitheesc, published on GitHub. It is a 4-layer board measuring 101.5 × 43.6 mm, with 88 components from 49 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the TLV809ED29DBZR, MAX17201G+T, TLV803EA30DCKR, TC1264-3.3VDB and PESD2ETH-ADX. By type, the board carries 33 resistors, 20 capacitors, 11 ICs, 6 connectors, 5 transistors and 5 switches.

It belongs with the rf & radio, iot & wireless and power & battery designs in this gallery.

From the project

Mobile Ground Station for stratospheric probe monitoring and rescue. Goes well with the Zenith Monitor app.

The Alcantara board functions as a ground station and data hub for the probe flights .

It is equipped with a EBYTE E22-900M30S 30dB module that carries the Semtech SX1262 transceiver, capable of LoRa, (G)FSK and OOK. The packets received from the probe can then be sent via WiFi, Bluetooth or Serially to a host computer or mobile phone.

The onboard GNSS module carries the NEO-M8N from u-blox, enabling it to be used as a tracking device.

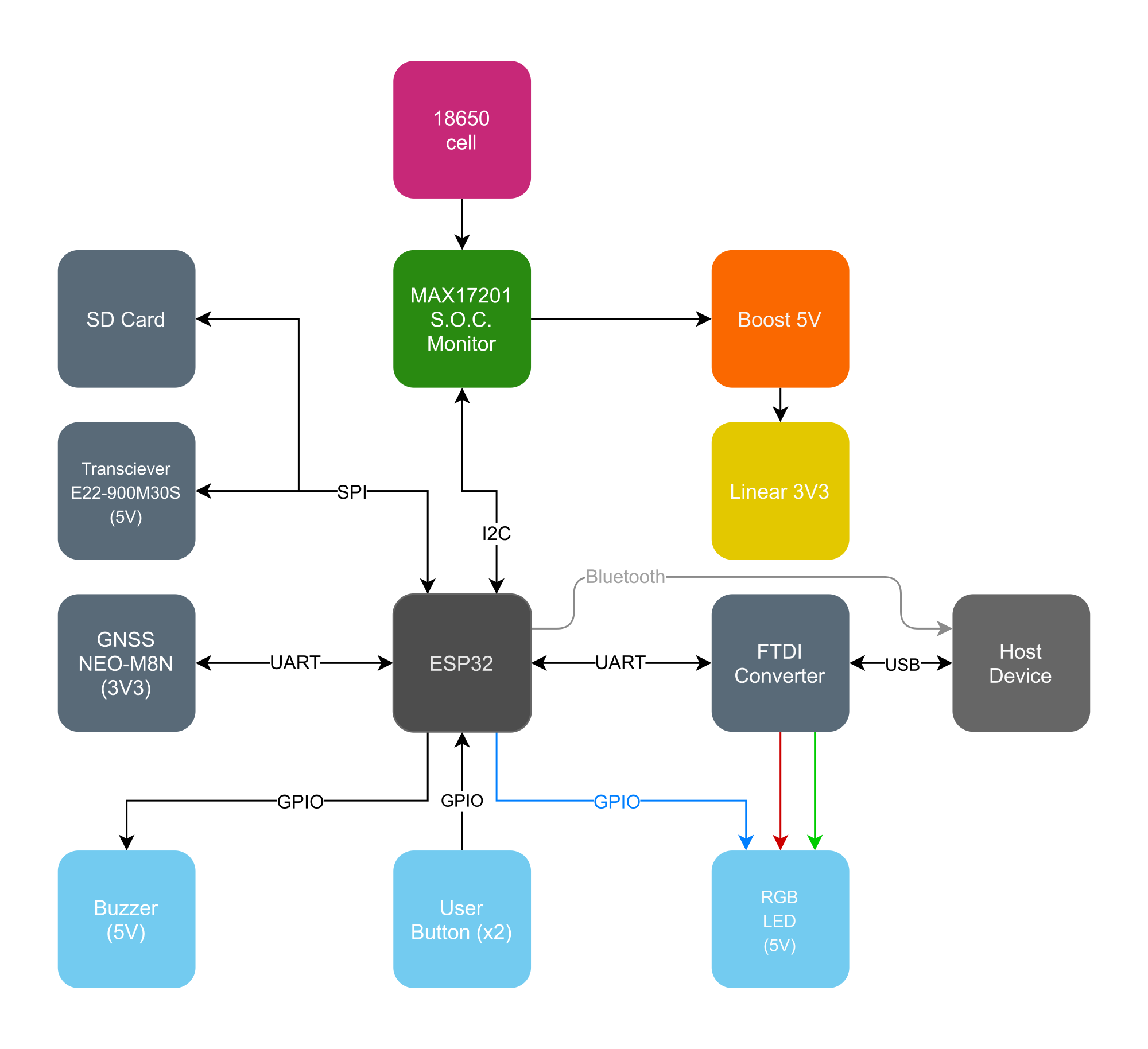

Alcantara, from the project README
From the project README

Main components on the Alcantara

TLV809ED29DBZRMAX17201G+TTLV803EA30DCKRTC1264-3.3VDBPESD2ETH-ADXE22-900M30STPS61092MS560702BA03-50NEO-M8NBuzzer_SMD_AST0760MCTRQFT232RL-REELESP32-WROOM-32

Alcantara bill of materials (BOM)

88 components, 49 distinct parts.

QtyPartRefs
1
TLV809ED29DBZR
IC1
1
MAX17201G+T
IC2
1
TLV803EA30DCKR
IC3
1
TC1264-3.3VDB
IC4
1
PESD2ETH-ADX
IC5
1
E22-900M30S
U1
1
TPS61092
U2
1
MS560702BA03-50
U3
1
NEO-M8N
U4
1
Buzzer_SMD_AST0760MCTRQ
U5
1
FT232RL-REEL
U7
1
ESP32-WROOM-32
MOD1
2
MMSS8050-H-TP
Q1, Q2
2
2N7002NXAKR
Q3, Q7
1
Q_PMOS_GSD
Q4
1
U_FL-R-SMT_10_
J1
2
142-0701-801
J2, J3
1
USB_B_Micro
J4
1
MEM2075-00-140-01-A
J5
1
53261-0527
J8
Show 29 more
QtyPartRefs
1
ML414H_IV01E
BT1
1
Battery_Cell
BT2
2
KSC941JLFS
S1, S2
2
EVP-AAM02W
S4, S5
1
MSS-102545-14A-V-SMT
S6
1
10k
TH1
1
D_Schottky_Small
D1
1
LED_RGBA
D2
1
6.8uH
L1
1
L_Small
L2
4
0.1uF
C1, C3, C4, C9
2
10uF
C2, C5
2
10uF
C6, C12
1
0.47uF
C7
1
2.2uF
C8
1
100uF
C10
4
1uF
C13, C14, C19, C20
1
10nF
C15
3
100nF
C16, C17, C18
1
1uF
C21
15
10K
R1, R2, R3, R4, R5, R6, R10, R11 +7
1
0.01
R7
1
68k
R8
2
10
R9, R18
4
4.7K
R12, R14, R15, R27
6
1K
R16, R20, R21, R22, R30, R31
1
3.3K
R17
2
330
R24, R33
1
100k
R29

Alcantara design files

The KiCad project lives in the zenitheesc/Alcantara repository on GitHub; these links point at the commit this page was built from.

Alcantara: common questions

What microcontroller does the Alcantara use?

The Alcantara is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Alcantara PCB?

The Alcantara measures 101.5 × 43.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Alcantara?

88 components, from 49 distinct parts. The full bill of materials is listed on this page.

Where can I download the Alcantara design files?

From the zenitheesc/Alcantara repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Alcantara design in my own project?

The repository has no license, so all rights stay with zenitheesc. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Alcantara without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
