P4eregrine
About the P4eregrine PCB
P4eregrine is an open source ESP32 PCB design by anticitizn, published on GitHub. It is a 6-layer board measuring 39.5 × 39.5 mm, with 314 components from 53 distinct parts.
Its main chip is the ESP32-P4NRW32X, from the ESP32 family. Other key parts include the LPS22HB, W25Q128JVP, ESP32-C5HF4, LFD182G45DCHD277 and TLV62569DBV. By type, the board carries 131 resistors, 122 capacitors, 24 transistors, 23 ICs, 6 diodes and 4 inductors.
It belongs with the robotics & motion, iot & wireless and power & battery designs in this gallery.
From the project

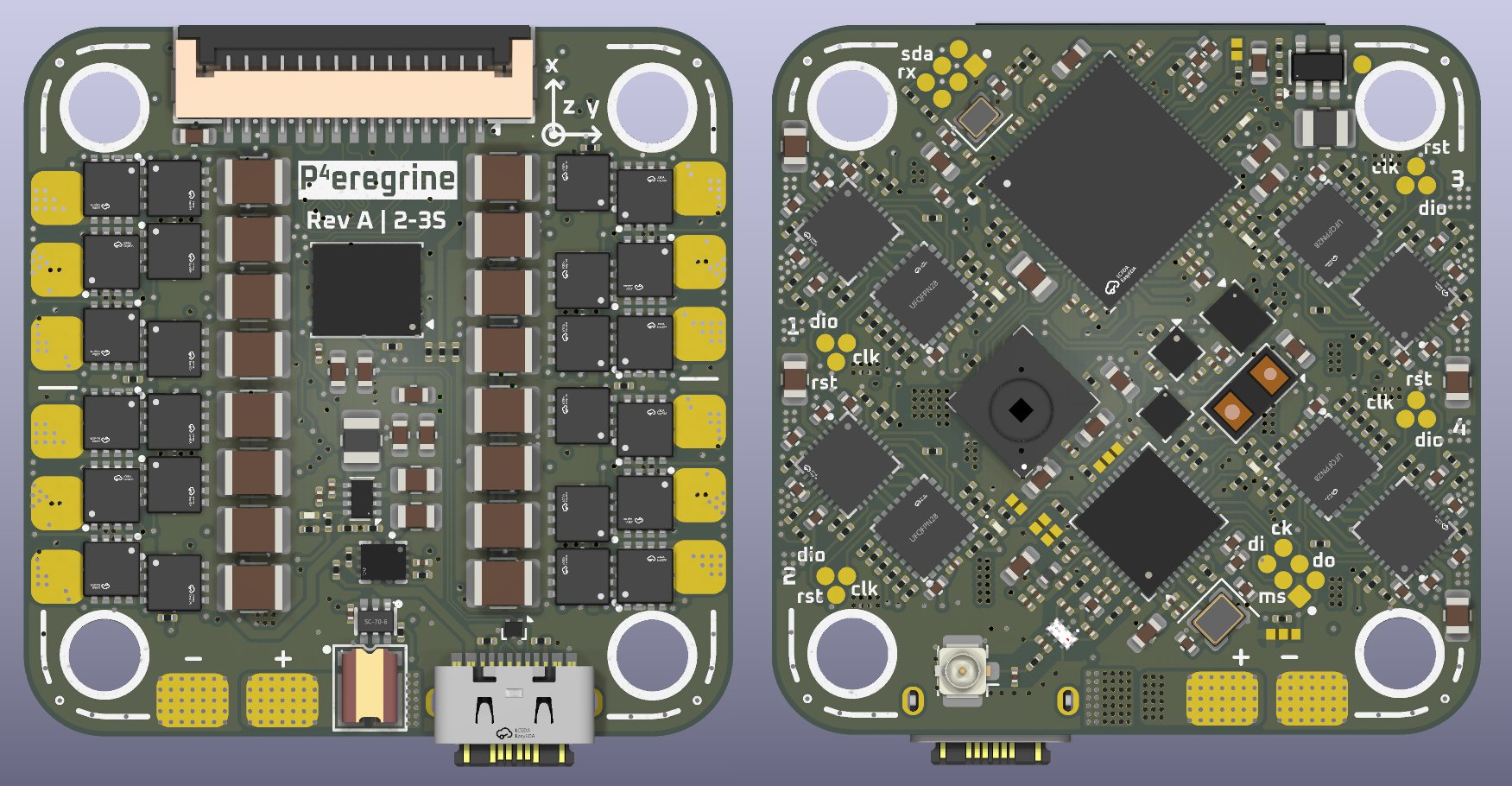

All-in-one ESP32 P4-based drone ESC, flight controller, and video processor
Filled and capped vias are a must, as the board makes extensive use of via-in-pad. All vias are 0.45/0.25 mm or bigger to avoid incurring extra fees from JLCPCB.
Schematics, layer images and BOM are available in docs/, Gerber files in export/.
Main components on the P4eregrine
P4eregrine bill of materials (BOM)
314 components, 53 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-P4NRW32X | ESP32-P4 | U1 |
| 1 | LPS22HB | ST_HLGA-10_2x2mm_P0.5mm_LayoutBorder3x2y | U2 |
| 1 | W25Q128JVP | WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm | U3 |
| 1 | ESP32-C5HF4 | QFN-48-1EP_6x6mm_P0.4mm_EP4.6x4.6mm | U4 |
| 1 | LFD182G45DCHD277 muRata(村田) | FILTER-SMD_8P-L1.6-W0.8-LFD182G45DCHD277 | U5 |
| 1 | TLV62569DBV | SOT-23-5 | U6 |
| 1 | INA190A2IDCKR TI(德州仪器) | SC-70-6_L2.0-W1.3-P0.65-LS2.1-BR | U8 |
| 1 | TPS2121RUXR TI(德州仪器) | VQFN-HR-12_L2.5-W2.0-P0.50-BL | U9 |
| 1 | FPC-1.0FX-15PWCR-H20 XUNPU(讯普) | FPC-SMD_15P-P1.00_XUNPU_FPC-1.0FX-15PWCR-H20 | U10 |
| 1 | VL53L1CXV0FY1 | ST_VL53L1x | U11 |
| 1 | LIS2MDL | LGA-12_2x2mm_P0.5mm | U12 |
| 1 | LSM6DS3 | LGA-14_3x2.5mm_P0.5mm_LayoutBorder3x4y | U13 |
| 1 | PMW3901MB-TXQT_C43496881 PixArt (原相科技) | C43496881_COB-28_L6_0-W6_0-P0_65-TL-EP | U14 |
| 1 | TPD2EUSB30A | Texas_DRT-3 | U15 |
| 4 | DRV8328BRUYR DRV8328ARUYR TI(德州仪器) | QFN-28_L4.0-W4.0-P0.40-BL-EP2.6 | U16, U19, U22, U25 |
| 1 | TPS62933 | SOT-583-8 | U17 |
| 4 | STM32G071GBU6 ST(意法半导体) | UFQFPN-28_L4.0-W4.0-P0.50-BL | U20, U23, U26, U30 |
| 24 | NMOS | PDFN3333-8_L3.1-W3.2-P0.65-LS3.4-BL | Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12 +16 |
| 1 | Crystal_GND24 | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y1 |
| 1 | Crystal_GND24 | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y2 |
Show 33 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_Coaxial | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J5 |
| 1 | GT-USB-7039A G-Switch(品赞) | USB-C-SMD_GT-USB-7039A | USB1 |
| 6 | LED | LED_0201_0603Metric | D1, D2, D14, D15, D16, D17 |
| 1 | 24nH | L_0201_0603Metric | L1 |
| 1 | 2nH | L_0402_1005Metric | L2 |
| 2 | 2.2uH | L_1008_2520Metric | L3, L5 |
| 7 | 10u | C_0805_2012Metric | C1, C79, C80, C105, C129, C153, C177 |
| 30 | 100n | C_0201_0603Metric | C2, C3, C4, C10, C14, C15, C16, C17 +22 |
| 25 | 1u | C_0402_1005Metric | C7, C18, C29, C32, C33, C37, C38, C45 +17 |
| 15 | 10u | C_0603_1608Metric | C8, C27, C39, C50, C58, C67, C75, C77 +7 |
| 4 | 12pf | C_0402_1005Metric | C11, C12, C35, C36 |
| 3 | 10n | C_0201_0603Metric | C13, C19, C49 |
| 2 | 4.7u | C_0603_1608Metric | C25, C89 |
| 1 | 0.8p | C_0201_0603Metric | C40 |
| 1 | 0.3p | C_0201_0603Metric | C42 |
| 1 | 2.6p | C_0201_0603Metric | C46 |
| 1 | 3p | C_0201_0603Metric | C47 |
| 6 | TBD | C_0201_0603Metric | C52, C53, C54, C55, C56, C57 |
| 1 | 22p | C_0201_0603Metric | C66 |
| 1 | 220n | C_0201_0603Metric | C85 |
| 4 | 100n | C_0402_1005Metric | C103, C127, C151, C175 |
| 4 | 470nF | C_0402_1005Metric | C107, C131, C155, C179 |
| 16 | 10u | C_1210_3225Metric | C113, C114, C121, C137, C138, C145, C161, C162 +8 |
| 58 | 10k | R_0201_0603Metric | R1, R6, R7, R12, R13, R14, R16, R17 +50 |
| 13 | 4.7k | R_0201_0603Metric | R2, R4, R10, R11, R35, R62, R87, R112 +5 |
| 1 | BVN-Z-R0005-1.0 Isabellenhuette(伊萨普兰) | RES-SMD_4P-L4.1-W3.1-BL_BVN-1216 | R3 |
| 1 | 4.02k | R_0201_0603Metric | R5 |
| 29 | 10 | R_0201_0603Metric | R8, R9, R69, R70, R71, R72, R73, R74 +21 |
| 3 | 0 | R_0201_0603Metric | R26, R27, R28 |
| 18 | 1k | R_0201_0603Metric | R30, R43, R76, R79, R84, R101, R104, R109 +10 |
| 2 | 499k | R_0201_0603Metric | R31, R32 |
| 2 | 31.3k | R_0201_0603Metric | R39, R40 |
| 4 | 220k | R_0201_0603Metric | R65, R90, R115, R140 |
P4eregrine design files
The KiCad project lives in the anticitizn/p4eregrine repository on GitHub; these links point at the commit this page was built from.
- Layoutp4eregrine.kicad_pcb
- Schematicp4eregrine.kicad_sch
P4eregrine: common questions
What microcontroller does the P4eregrine use?
The P4eregrine is built around the ESP32-P4NRW32X, from the ESP32 family.
How big is the P4eregrine PCB?
The P4eregrine measures 39.5 × 39.5 mm, has 6 copper layers and is 1.166 mm thick.
How many components are on the P4eregrine?
314 components, from 53 distinct parts. The full bill of materials is listed on this page.
Where can I download the P4eregrine design files?
From the anticitizn/p4eregrine repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the P4eregrine design in my own project?
The repository has no license, so all rights stay with anticitizn. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the P4eregrine without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
