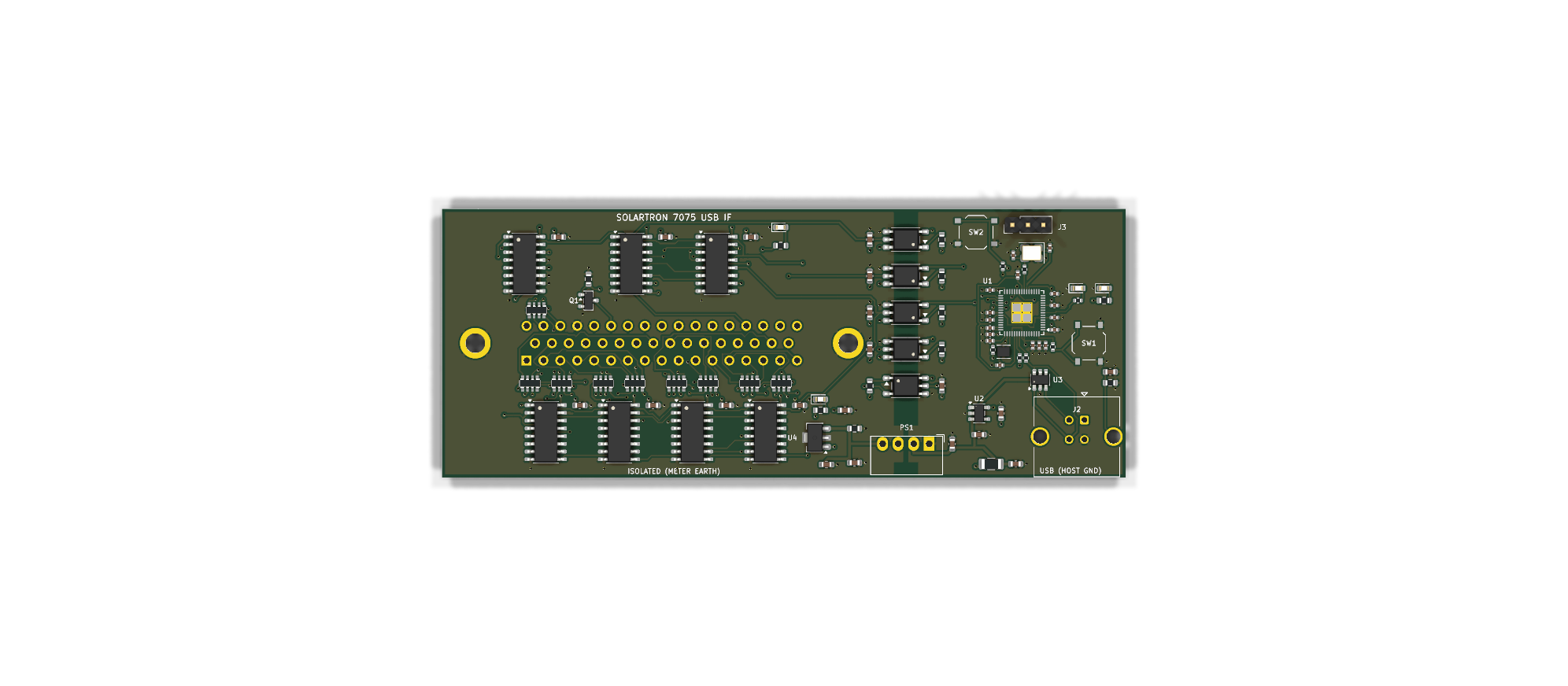

Solartron 7075 interface unplaced
About the Solartron 7075 interface unplaced PCB
Solartron 7075 interface unplaced is an open source PCB design by cHemingway, published on GitHub. It is a 2-layer board measuring 74.4 × 72.9 mm, with 93 components from 38 distinct parts.
Other key parts include the RP2354A, AP2112K-3.3, USBLC6-2SC6, 78L05 and TLP2361. By type, the board carries 37 capacitors, 27 resistors, 16 ICs, 4 diodes, 2 connectors and 2 switches.
It belongs with the power & battery designs in this gallery.
From the project
Tests of various "circuit as code" tools
An isolated USB interface for the Solartron 7075 DVM, described in SKiDL and laid out for KiCad 10. It plugs into the 50-way Cannon socket (SKB) of the 7075's Parallel BCD Interface Unit 70754 (service manual section 9). From there it reads the display data and status lines, drives all the remote-control inputs, and connects to a host over USB through an RP2354A.
Main components on the Solartron 7075 interface unplaced
Solartron 7075 interface unplaced bill of materials (BOM)
93 components, 38 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RP2354A | QFN-60-1EP_7x7mm_P0.4mm_EP3.4x3.4mm_ThermalVias | U1 |
| 1 | AP2112K-3.3 | SOT-23-5 | U2 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U3 |
| 1 | 78L05 | SOT-89-3 | U4 |
| 5 | TLP2361 | Toshiba_SOIC-5-6_4.4x3.6mm_P1.27mm | U5, U6, U7, U8, U9 |
| 5 | 74HCT165 | SOIC-16_3.9x9.9mm_P1.27mm | U10, U11, U12, U13, U14 |
| 2 | 74HC595 | SOIC-16_3.9x9.9mm_P1.27mm | U15, U16 |
| 1 | 2N7002 | SOT-23 | Q1 |
| 1 | 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | USB_B | USB_B_TE_5787834_Vertical | J2 |
| 1 | SWD | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | 500mA | Fuse_1206_3216Metric | F1 |
| 1 | B0509S-1WR3 | Converter_DCDC_Murata_MEE1SxxxxSC_THT | PS1 |
| 1 | BOOTSEL | SW_Push_1P1T_XKB_TS-1187A | SW1 |
| 1 | RESET | SW_Push_1P1T_XKB_TS-1187A | SW2 |
| 3 | green | LED_0603_1608Metric | D1, D2, D3 |
| 1 | red | LED_0603_1608Metric | D4 |
| 1 | 3.3uH | L_Murata_DFE201610P | L1 |
| 1 | 4.7n | C_0603_1608Metric | C1 |
| 3 | 10u | C_0603_1608Metric | C2, C4, C25 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1u | C_0603_1608Metric | C3, C24 |
| 12 | 100n | C_0402_1005Metric | C5, C6, C7, C8, C9, C10, C11, C12 +4 |
| 3 | 4.7u | C_0402_1005Metric | C14, C15, C16 |
| 2 | 15p | C_0402_1005Metric | C20, C21 |
| 1 | 4.7u | C_0603_1608Metric | C22 |
| 1 | 2.2u | C_0603_1608Metric | C23 |
| 12 | 100n | C_0603_1608Metric | C26, C27, C28, C29, C30, C31, C32, C33 +4 |
| 1 | 1M | R_0603_1608Metric | R1 |
| 3 | 1k | R_0603_1608Metric | R2, R11, R13 |
| 1 | 33 | R_0402_1005Metric | R3 |
| 3 | 1k | R_0402_1005Metric | R4, R8, R9 |
| 2 | 27 | R_0402_1005Metric | R5, R6 |
| 1 | 10k | R_0402_1005Metric | R7 |
| 1 | 2.2k | R_0603_1608Metric | R10 |
| 1 | 100k | R_0603_1608Metric | R12 |
| 4 | 390 | R_0603_1608Metric | R14, R15, R16, R17 |
| 1 | 820 | R_0603_1608Metric | R18 |
| 9 | 10k | R_Array_Convex_4x0603 | RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 +1 |
Solartron 7075 interface unplaced design files
The KiCad project lives in the cHemingway/llm_circuitgen_tests repository on GitHub; these links point at the commit this page was built from.
Solartron 7075 interface unplaced: common questions
How big is the Solartron 7075 interface unplaced PCB?
The Solartron 7075 interface unplaced measures 74.4 × 72.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Solartron 7075 interface unplaced?
93 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Solartron 7075 interface unplaced design files?
From the cHemingway/llm_circuitgen_tests repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Solartron 7075 interface unplaced design in my own project?
The repository has no license, so all rights stay with cHemingway. Use it as a reference, and ask the author before reusing the design.
