About the Garden133 PCB

Garden133 is an open source ESP32 PCB design by chl33, published on GitHub under the MIT license. It is a 4-layer board measuring 71.1 × 39.4 mm, with 54 components from 35 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the SHTC3, RFM95W-915S2, NCP114ASN330T1G, DW01A and TP4056. By type, the board carries 6 ICs, 5 resistors, 4 diodes, 2 transistors, 2 connectors and 1 fuse.

It belongs with the iot & wireless, rf & radio and power & battery designs in this gallery.

From the project

A solar-powered board for monitoring garden soil moisture levels.

Garden133 is a solar and battery-powered device for monitoring garden soil moisture levels. It reads the moisture level of soil using a capacitive moisture sensor and transmits data via LoRa.

Please see the Introducing Garden133 blog post for a project overview.

- PCB Design: KiCAD files are available in KiCAD/Garden133/. - Enclosure: OpenSCAD files for the waterproof enclosure and mounts are in OpenSCAD/.

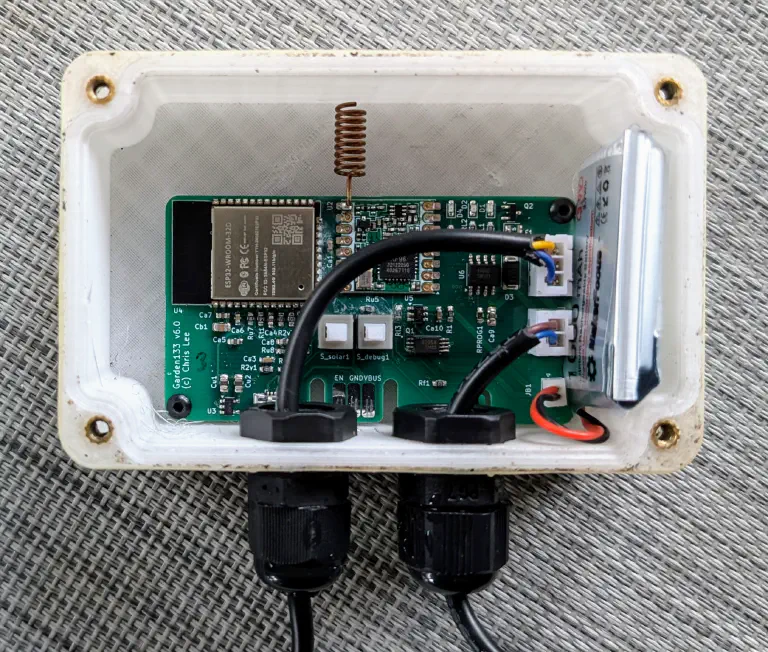

Garden133, from the project README
From the project README

Main components on the Garden133

SHTC3RFM95W-915S2NCP114ASN330T1GESP32-WROOM-32DW01ATP4056

Garden133 bill of materials (BOM)

54 components, 35 distinct parts.

QtyPartRefs
1
SHTC3
U1
1
RFM95W-915S2
U2
1
NCP114ASN330T1G
U3
1
ESP32-WROOM-32
U4
1
DW01A
U5
1
TP4056
U6
1
FS8205A
Q1
1
AO3401A
Q2
1
USB_B_Micro
J1
1
Edge2x6_Connector
J2
4
100nF
Ca1, Ca2, Ca6, Ca7
5
100nF
Ca3, Ca4, Ca5, Ca8, Ca10
1
100nF
Ca9
2
10uF
Cb1, Cb2
2
1uF
Cu1, Cu2
1
0.5A
F1
1
Conn_01x02_Pin
JB1
1
Conn_01x02_Pin
JS1
1
Conn_01x03_Male
J_MOIST1
4
1k
RL1, RL2, RL4, Rl3
Show 15 more
QtyPartRefs
1
1.2k
RPROG1
2
2.2k
Rf1, Rf2
1
470
Rt1
5
10k
Ru1, Ru2, Ru3, Ru5, Ru7
1
20k
Ru8
1
100k
Rv1
1
SW_DPDT
S_debug1
1
SW_DPDY
S_mcu1
1
GRN
D1
1
RED
D2
1
UPS115UE3/TR7
D3
1
YLW
D4
1
100
R1
1
20k
R2u1
3
200k
R2v1, R2v2, R2v3

Garden133 design files
