NUBUSPAS16-DB

demik·oldworld·EDA/NUBUSPAS16-DB/PAS16DB.kicad_pcb

NUBUSPAS16-DB PCB layout, top view — open source board by demik
Simulate this board

About the NUBUSPAS16-DB PCB

NUBUSPAS16-DB is an open source PCB design by demik, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 53.3 × 76.2 mm, with 54 components from 22 distinct parts.

Other key parts include the LF347 and OPA1688. By type, the board carries 18 resistors, 12 capacitors, 9 connectors, 9 diodes, 3 ICs and 3 inductors.

It belongs with the audio and retro computing designs in this gallery.

From the project

Development ressources for Old World Macintosh (68k and NuBus PPC) and a few related things…

NuBus Pro Pro Audio Spectrum 16 daughter board

This is a hardware hack board to restore some functionality of a standalone MediaVision PAS16 (ie: it's single, witouth the breakout / patch panel)

As the board is unusable without the patch panel, this will give back some life out of such cards

Features The board restore the following features: Line output (buffered) Headphone amplifier (including support for high impedance headphones) Line in (switched between internal and external, more on this below) * Hardware mixing of inputs and sound enhancements (bass, treble, loudness, stereo…

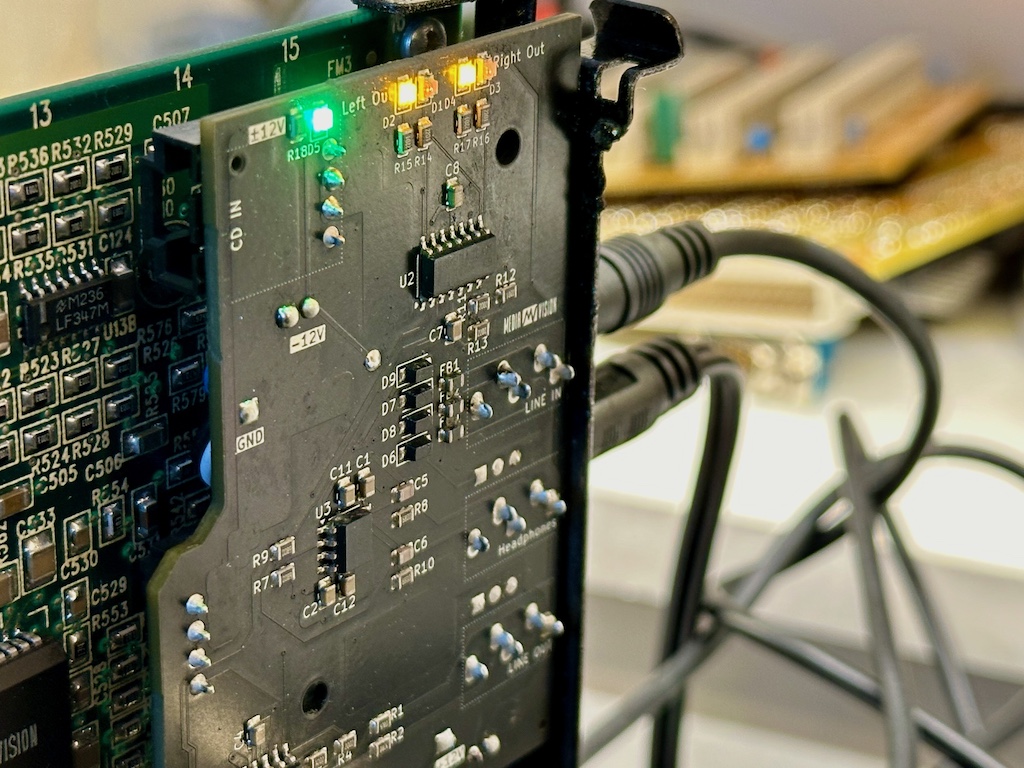

NUBUSPAS16-DB, from the project README
From the project README

Main components on the NUBUSPAS16-DB

LF347OPA1688

NUBUSPAS16-DB bill of materials (BOM)

54 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
LF347
U1, U2
1
OPA1688
U3
2
70553-0038
J1, J7
1
SJ1-3535NG-GR
J2
1
SJ1-3535NG
J3
2
CONN_01X02
Conn_01x02
J4, J5
1
SJ1-3535NG-BE
J6
2
CONN_01X03
Conn_01x03
J8, J9
2
Red
D1, D3
2
Yellow
D2, D4
1
Green
D5
4
1N4148W
D6, D7, D8, D9
3
GZ2012D601TF
FB1, FB2, FB3
8
100NF
100nF
C1, C2, C3, C4, C7, C8, C11, C12
2
47PF
47pF
C5, C6
2
100UF
100uF
C9, C10
2
47
R1, R2
2
10K
10k
R3, R5
4
20K
20k
R4, R6, R11, R18
4
680
R7, R8, R9, R10
Show 2 more
QtyPartRefs
5
2200
R12, R14, R15, R16, R17
1
220
R13

NUBUSPAS16-DB design files

The KiCad project lives in the demik/oldworld repository on GitHub; these links point at the commit this page was built from.

NUBUSPAS16-DB: common questions

How big is the NUBUSPAS16-DB PCB?

The NUBUSPAS16-DB measures 53.3 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NUBUSPAS16-DB?

54 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the NUBUSPAS16-DB design files?

From the demik/oldworld repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the NUBUSPAS16-DB design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which demik chose for the repository.
