ADBDB PCB layout, top view — open source PIC board by demik
Simulate this board

About the ADBDB PCB

ADBDB is an open source PIC PCB design by demik, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 100 × 50 mm, with 34 components from 23 distinct parts.

Its main chip is the LF347, from the PIC family. Other key parts include the OPA1688 and NE555P. By type, the board carries 11 resistors, 7 connectors, 5 capacitors, 4 ICs, 2 switches and 1 fuse.

It belongs with the retro computing designs in this gallery.

From the project

Development ressources for Old World Macintosh (68k and NuBus PPC) and a few related things…

It was created because working on a breadboard work until you start fixing more the breadboard than doing actual work

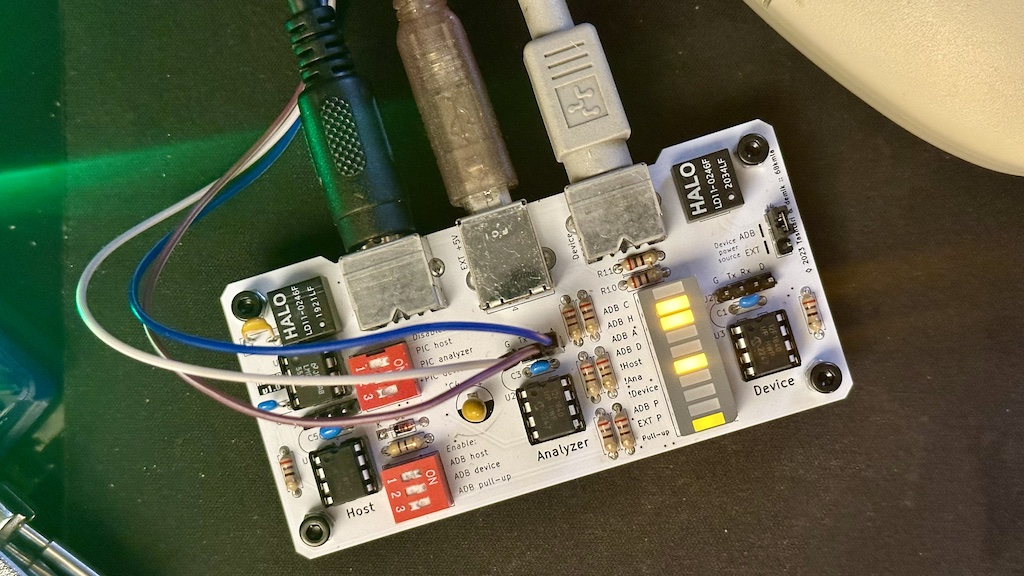

It's a small PCB (10cm x 5cm) hosting all three ADB tools (test-host, test-device, adb-analyser) with a few features:

use external power for onboard electronics (using USB type B connector) signal filtering (using the same ADB filters as a Macintosh SE) external ADB device can be powered by either the Mac or external power on demand ADB 470Ω data line pull-up 200 mA PPTC resettable fuse to protect the Mac ADB port from overcurrent each tool can be enabled or disabled using…

ADBDB, from the project README
From the project README

Main components on the ADBDB

LF347OPA1688NE555P

ADBDB bill of materials (BOM)

34 components, 23 distinct parts — part numbers from the project's BOM.
