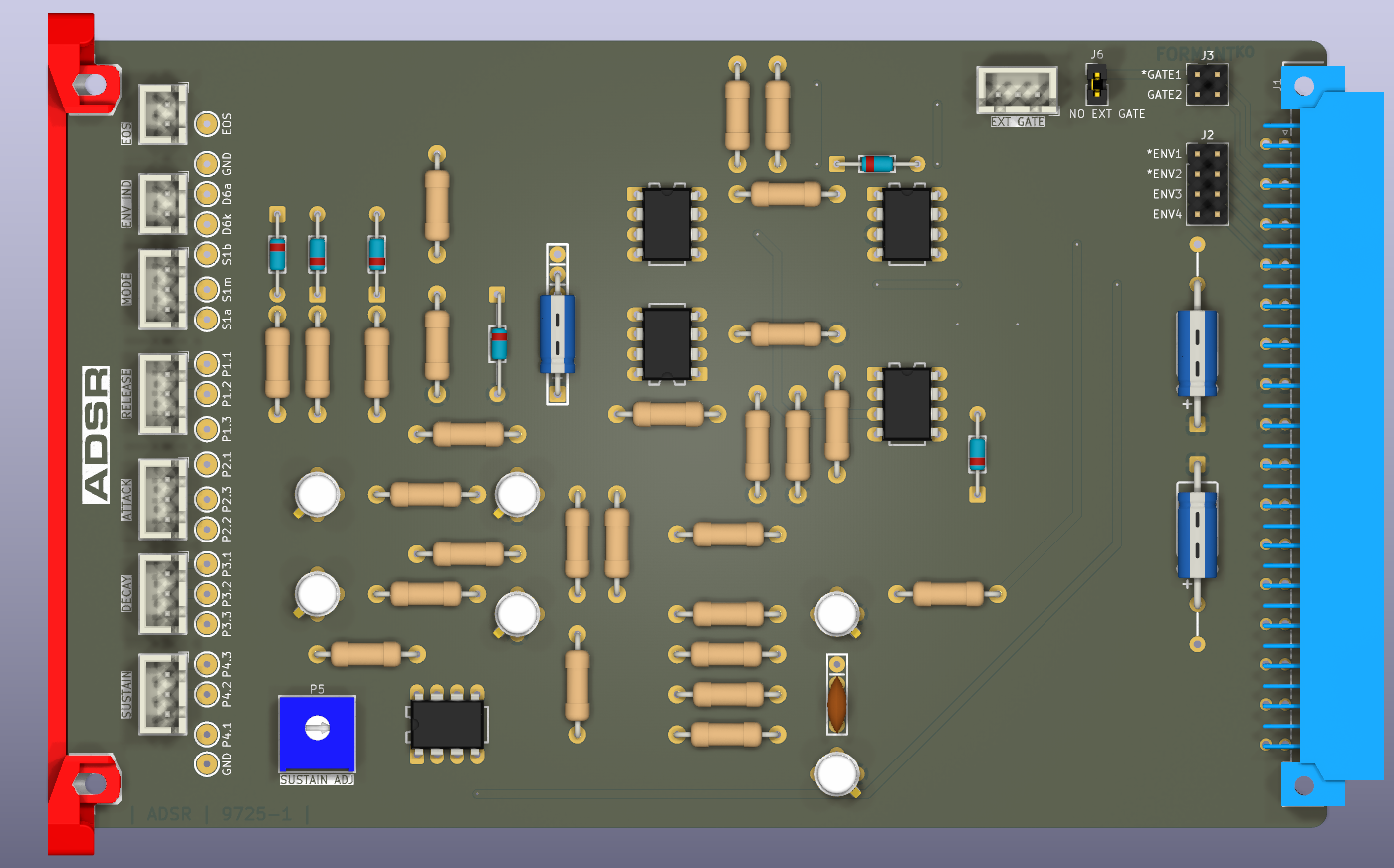

ADSR PCB layout, top view — open source board by Desval27
Simulate this board

About the ADSR PCB

ADSR is an open source PCB design by Desval27, published on GitHub under the MIT license. It is a 2-layer board measuring 160 × 100 mm, with 82 components from 49 distinct parts.

Other key parts include the µA741C. By type, the board carries 31 connectors, 27 resistors, 7 diodes, 6 transformers, 5 ICs and 4 capacitors.

It belongs with the audio designs in this gallery.

From the project

Knock-off of the Elektor Formant Synthesizer project with the initial goal of being quasi-authentic and secondary goal undecided. Probably tweaks of some kind.

- Add external gate input. This is normalized and will disconnect any existing internal gate bus assignment. - Added jumper to completly disable the external gate path. With the jumper in place the gate I/O functions the same as the original design.

- Schematic - Assembly - Bill of Materials - Interactive Bill of Materials

- Default - Elecrow - FusionPCB - JLCPCB - PCBWay

ADSR, from the project README
From the project README

Main components on the ADSR

µA741C

ADSR bill of materials (BOM)

82 components, 49 distinct parts — part numbers from the project's BOM.

QtyPartRefs
5
µA741C
IC1, IC2, IC3, IC4, IC5
1
CardConnector
J1
1
ENV SELECT
J2
1
GATE SELECT
J3
1
EOS
J4
1
EXT GATE
J5
1
NO EXT GATE
J6
2
GND
J7, J26
1
P1.1
J8
1
P1.3
J9
1
P1.2
J10
1
P2.3
J11
1
P2.2
J12
1
P2.1
J13
1
P3.1
J14
1
P3.3
J15
1
P3.2
J16
1
P4.1
J17
1
P4.2
J18
1
P4.3
J19
Show 29 more
QtyPartRefs
1
S1A
S1a
J20
1
S1B
S1b
J21
1
S1M
S1m
J22
1
D6A
D6a
J23
1
D6K
D6k
J24
1
EOS
J25
3
1M
P1, P2, P3
1
10K
10k
P4
1
25K
25k
P5
1
CardBracket
MH1
1
MODE
S1
6
BC108C
T1, T2, T3, T4, T5, T6
5
1N4148
D1, D2, D3, D4, D5
1
ENV IND
D6
1
1N4148
D7
1
10N
10n
C1
1
10µ
C2
1
10µ
C3
1
10µ
C4
4
10K
10k
R1, R9, R23, R24
2
4K7
4k7
R2, R25
2
5K6
5k6
R3, R7
5
100K
100k
R4, R6, R8, R16, R18
4
33K
33k
R5, R10, R11, R22
3
470R
R12, R26, R27
2
1k
R13, R21
2
27K
27k
R14, R20
2
6K8
6k8
R15, R19
1
220R
R17
