MODULE TESTER

Desval27·FormantKO·system/TEST_HARNESS/TEST_HARNESS.kicad_pcb

MODULE TESTER layout, top view — open source board by Desval27
Simulate this board

About the MODULE TESTER

MODULE TESTER is an open source PCB design by Desval27, published on GitHub under the MIT license. It is a 2-layer board measuring 127 × 104.1 mm, with 36 components from 28 distinct parts.

By type, the board carries 9 resistors, 7 diodes, 6 connectors, 6 capacitors, 4 switches and 2 transistors.

It belongs with the audio designs in this gallery.

From the project

Knock-off of the Elektor Formant Synthesizer project with the initial goal of being quasi-authentic and secondary goal undecided. Probably tweaks of some kind.

The Test Board is a bench-top development, calibration, and diagnostic tool for Formant modules. It provides a single backplane bus connector with convenient access to all bus signals, allowing individual modules to be powered, calibrated, and tested without being installed in a complete synthesizer system.

The board accepts power from a laboratory bench supply via banana jacks and includes LED indicators for the power rails and GATE bus states. All bus signals are brought out through jumper headers for easy monitoring, isolation, or external connection. Built-in pushbuttons allow manual…

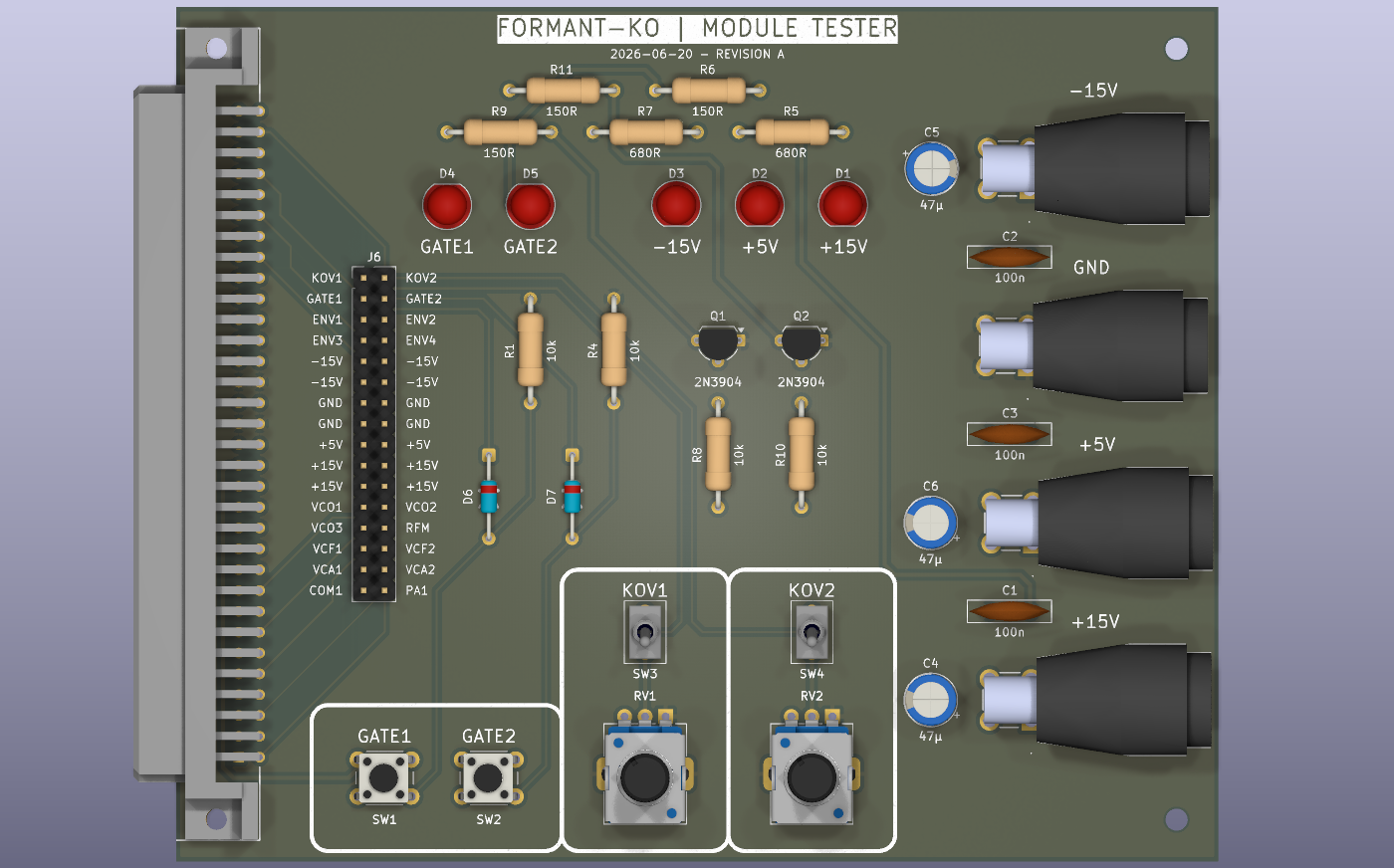

MODULE TESTER, from the project README
From the project README

MODULE TESTER bill of materials (BOM)

36 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
2N3904
Q1, Q2
1
SLOT 1
J1
4
CT3151SP-0
J2, J3, J4, J5
1
Conn_02x16_Odd_Even
J6
2
10k
RV1, RV2
1
GATE1
SW1
1
GATE2
SW2
1
200-MSP3-T2B3M2QE
KOV1
Taiway Switches
SW3
1
200-MSP3-T2B3M2QE
KOV2
Taiway Switches
SW4
1
1N4002
+15V
D1
1
1N4002
+5V
D2
1
1N4002
-15V
D3
1
GATE1
D4
1
GATE2
D5
2
DUS
D6, D7
2
100n
C1, C2
1
100N
100n
C3
1
100N
47µ
C4
2
47µ
C5, C6
1
3K9
10k
R1
Show 8 more
QtyPartRefs
1
2R7
10k
R4
1
2R7
680R
R5
1
2R7
150R
R6
1
680R
R7
1
10k
R8
1
22K
150R
R9
1
22K
10k
R10
1
6K8
150R
R11

MODULE TESTER design files

The KiCad project lives in the Desval27/FormantKO repository on GitHub; these links point at the commit this page was built from.

MODULE TESTER: common questions

How big is the MODULE TESTER?

The MODULE TESTER measures 127 × 104.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MODULE TESTER?

36 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MODULE TESTER design files?

From the Desval27/FormantKO repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MODULE TESTER design in my own project?

Yes, under the terms of its MIT license, which Desval27 chose for the repository.
