ENVELOPE FOLLOWER

Desval27·FormantKO·modules/ENVELOPE_FOLLOWER/ENVELOPE_FOLLOWER.kicad_pcb

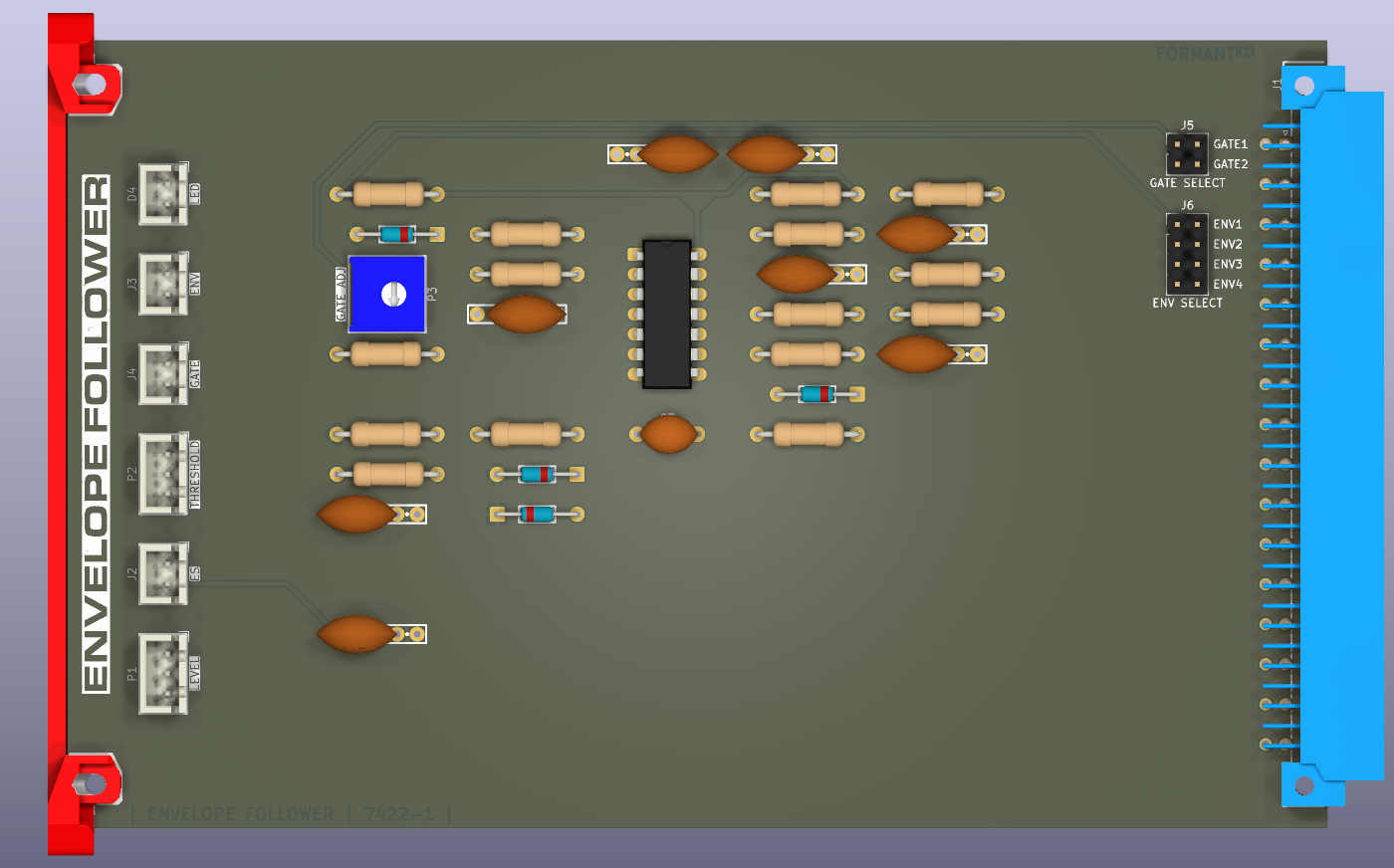

ENVELOPE FOLLOWER PCB layout, top view — open source board by Desval27

Simulate this board

About the ENVELOPE FOLLOWER PCB

ENVELOPE FOLLOWER is an open source PCB design by Desval27, published on GitHub under the MIT license. It is a 2-layer board measuring 160 × 100 mm, with 40 components from 32 distinct parts.

Other key parts include the TL074. By type, the board carries 15 resistors, 9 connectors, 9 capacitors, 5 diodes and 1 IC.

It belongs with the audio designs in this gallery.

From the project

Knock-off of the Elektor Formant Synthesizer project with the initial goal of being quasi-authentic and secondary goal undecided. Probably tweaks of some kind.

The Envelope Follower converts an incoming audio signal into control voltages that can be used to modulate other synthesizer modules. It accepts microphone, guitar, or line-level signals, with an adjustable input gain to accommodate a wide range of sources. The module extracts the amplitude envelope of the audio and generates a proportional control voltage (CV), allowing dynamics such as playing intensity or volume changes to control filters, VCAs, oscillators, or other destinations. A separate threshold control produces a gate output whenever the input level exceeds the selected level…

ENVELOPE FOLLOWER, from the project README — From the project README

Main components on the ENVELOPE FOLLOWER

ENVELOPE FOLLOWER bill of materials (BOM)

40 components, 32 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	TL074	DIP-14	IC1
1	CardConnector	CardConnector	J1
3	MonoJack	PanelConnector_1x02	J2, J3, J4
1	GATE SELECT	PinHeader_2x02_P2.54mm_Vertical	J5
1	ENV SELECT	PinHeader_2x04_P2.54mm_Vertical	J6
2	2K5 10k	PanelConnector_1x03	P1, P2
1	2K5 1k	Potentiometer_Trimmer	P3
1	CardBracket	CardBracket	MH1
3	1N4002 DUS	DUS	D1, D2, D3
1	DLED	PanelConnector_1x02	D4
1	DUG	DUG	D5
1	470n	C_Rect_300_400	C1
1	180n	C_Rect_300_400	C2
1	100N 22n	C_Rect_300	C3
2	100N 220n	C_Rect_300_400	C4, C9
1	220n	C_Rect_300_400	C5
1	22n	C_Rect_300_400	C6
2	100n	C_Rect_300_400	C7, C8
1	3K9 5k6	R_Axial_Horizontal	R1
1	3K9 820k	R_Axial_Horizontal	R2

Show 12 more

Qty	Part	Footprint	Refs
1	2R7 5k6	R_Axial_Horizontal	R3
1	2R7 220k	R_Axial_Horizontal	R4
1	2R7 18k	R_Axial_Horizontal	R5
1	2R7 68k	R_Axial_Horizontal	R6
2	68k	R_Axial_Horizontal	R7, R8
1	22K 680k	R_Axial_Horizontal	R9
1	22K 68k	R_Axial_Horizontal	R10
1	6K8 47k	R_Axial_Horizontal	R11
1	6K8 470R	R_Axial_Horizontal	R12
1	6K8 6k8	R_Axial_Horizontal	R13
1	6K8 1k	R_Axial_Horizontal	R14
1	680R 1k	R_Axial_Horizontal	R15

ENVELOPE FOLLOWER design files

The KiCad project lives in the Desval27/FormantKO repository on GitHub; these links point at the commit this page was built from.

ENVELOPE FOLLOWER: common questions

How big is the ENVELOPE FOLLOWER PCB?

The ENVELOPE FOLLOWER measures 160 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ENVELOPE FOLLOWER?

40 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ENVELOPE FOLLOWER design files?

From the Desval27/FormantKO repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ENVELOPE FOLLOWER design in my own project?

Yes, under the terms of its MIT license, which Desval27 chose for the repository.
