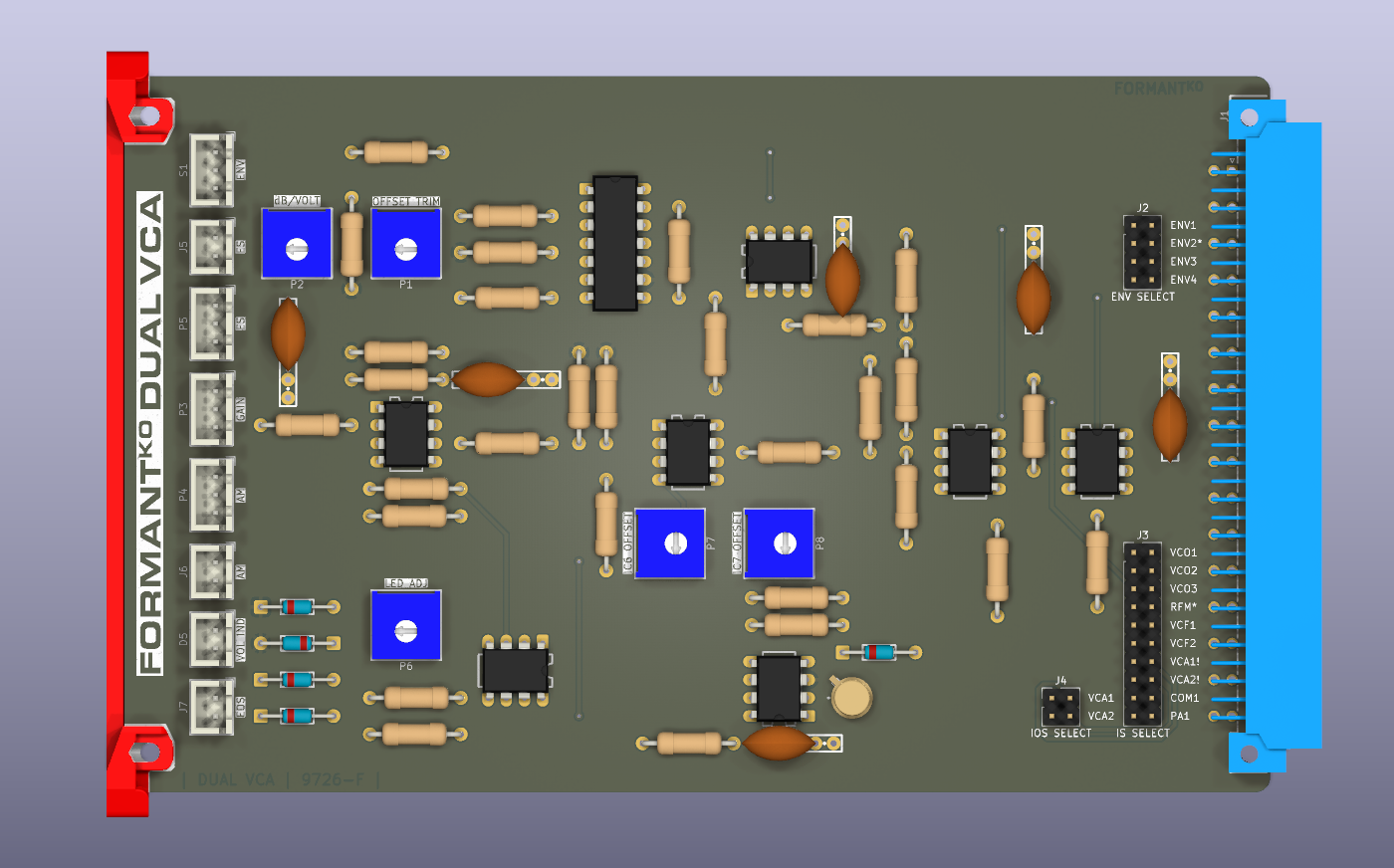

DUAL VCA PCB layout, top view — open source board by Desval27
Simulate this board

About the DUAL VCA PCB

DUAL VCA is an open source PCB design by Desval27, published on GitHub under the MIT license. It is a 2-layer board measuring 160 × 100 mm, with 68 components from 51 distinct parts.

Other key parts include the CA3084, LM723, µA741C and CA3080. By type, the board carries 30 resistors, 15 connectors, 8 ICs, 6 diodes, 6 capacitors and 1 switch.

It belongs with the audio designs in this gallery.

From the project

Knock-off of the Elektor Formant Synthesizer project with the initial goal of being quasi-authentic and secondary goal undecided. Probably tweaks of some kind.

- Schematic - Assembly - Interactive Bill of Materials

- Default - Elecrow - FusionPCB - JLCPCB - PCBWay

DUAL VCA, from the project README
From the project README

Main components on the DUAL VCA

CA3084LM723µA741CCA3080

DUAL VCA bill of materials (BOM)

68 components, 51 distinct parts — part numbers from the project's BOM.
