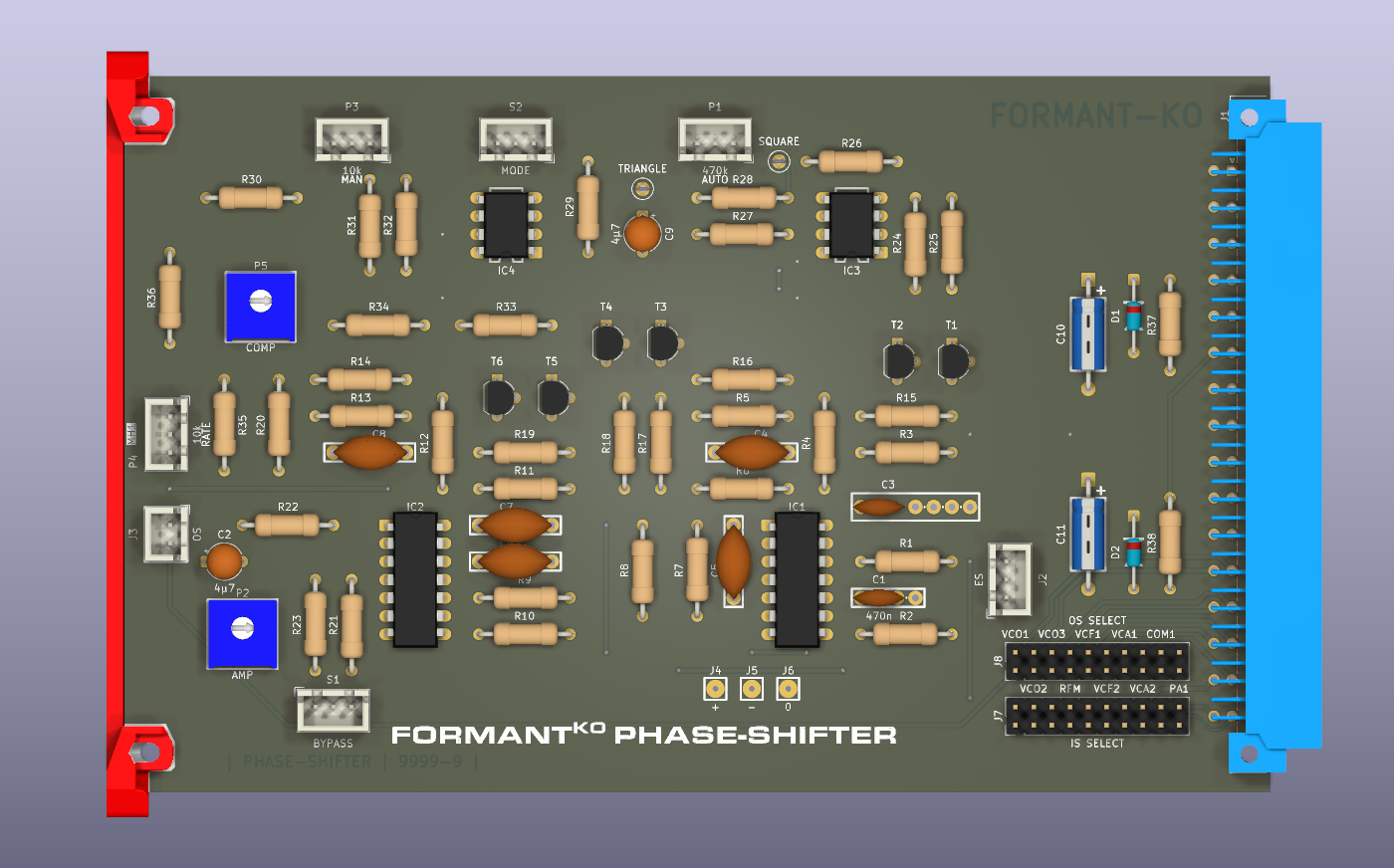

PHASE-SHIFTER PCB layout, top view — open source board by Desval27
Simulate this board

About the PHASE-SHIFTER PCB

PHASE-SHIFTER is an open source PCB design by Desval27, published on GitHub under the MIT license. It is a 2-layer board measuring 160 × 100 mm, with 79 components from 59 distinct parts.

Other key parts include the LM324, LM723 and OpAmp. By type, the board carries 38 resistors, 13 connectors, 11 capacitors, 6 transformers, 4 ICs and 2 switches.

It belongs with the audio designs in this gallery.

From the project

Knock-off of the Elektor Formant Synthesizer project with the initial goal of being quasi-authentic and secondary goal undecided. Probably tweaks of some kind.

- Both IS and IOS are optionally bus assignable. Beware of loopback assignments. - IS is normalized to ES. Plugging anything into the ES jack breaks that normalization. - Regardless of IOS selection EOS is always present at the jack.

- Translated Source - Schematic - Assembly - Interactive Bill of Materials

- Default - Elecrow - FusionPCB - JLCPCB - PCBWay

PHASE-SHIFTER, from the project README
From the project README

Main components on the PHASE-SHIFTER

LM324LM723OpAmp

PHASE-SHIFTER bill of materials (BOM)

79 components, 59 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM324
IC1
1
LM723
LM324
IC2
1
LM723
OpAmp
IC3
1
OpAmp
IC4
1
Card_Connector
J1
1
ES
J2
1
OS
J3
1
+
J4
1
-
J5
1
0
J6
1
IS SELECT
J7
1
OS SELECT
J8
1
2K5
470k
P1
1
2K5
50k
P2
1
2K5
10k
P3
1
10k
P4
1
50k
P5
1
CardBracket
MH1
1
BYPASS
S1
1
MODE
S2
Show 39 more
QtyPartRefs
3
2N3055
N-FET
T1, T2, T3
3
N-FET
T4, T5, T6
1
SQUARE
TP1
1
TRIANGLE
TP2
2
1N4002
12V
D1, D2
1
470n
C1
1
4µ7
C2
1
100N
1µ
C3
1
100N
470n
C4
1
330n
C5
1
150n
C6
1
100n
C7
1
47n
C8
1
100N
4µ7
C9
1
10µ
C10
1
100N
10µ
C11
2
3K9
100k
R1, R2
4
2R7
22k
R3, R4, R5, R6
2
22k
R7, R8
2
22K
22k
R9, R10
4
6K8
22k
R11, R12, R13, R14
2
680R
100k
R15, R16
1
2K7
100k
R17
1
8K2
100k
R18
2
2R7
100k
R19, R20
1
2K2
22k
R21
1
2K7
22k
R22
1
15K
10k
R23
1
150R
33k
R24
1
33k
R25
1
330k
R26
2
1M
R27, R29
2
4k7
R28, R36
1
12k
R30
1
3k9
R31
2
47k
R32, R34
1
470k
R33
1
10k
R35
2
150R
R37, R38
