ESP32AY-revD2

djspawnbrest·ESP32AY·PCB/revD2/KiCad/ESP32AY-revD2.kicad_pcb

ESP32AY-revD2 PCB layout, top view — open source ESP32 board by djspawnbrest

About the ESP32AY-revD2 PCB

ESP32AY-revD2 is an open source ESP32 PCB design by djspawnbrest, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 55 × 100 mm, with 127 components from 52 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the AMS1117-3.3, 74HC595, TP4056, AY-3-8910 and DS3231MZ. By type, the board carries 52 resistors, 44 capacitors, 12 ICs, 5 switches, 5 diodes and 4 connectors.

It belongs with the audio designs in this gallery.

From the project

ZxPod - ESP32 based AY multiformat player

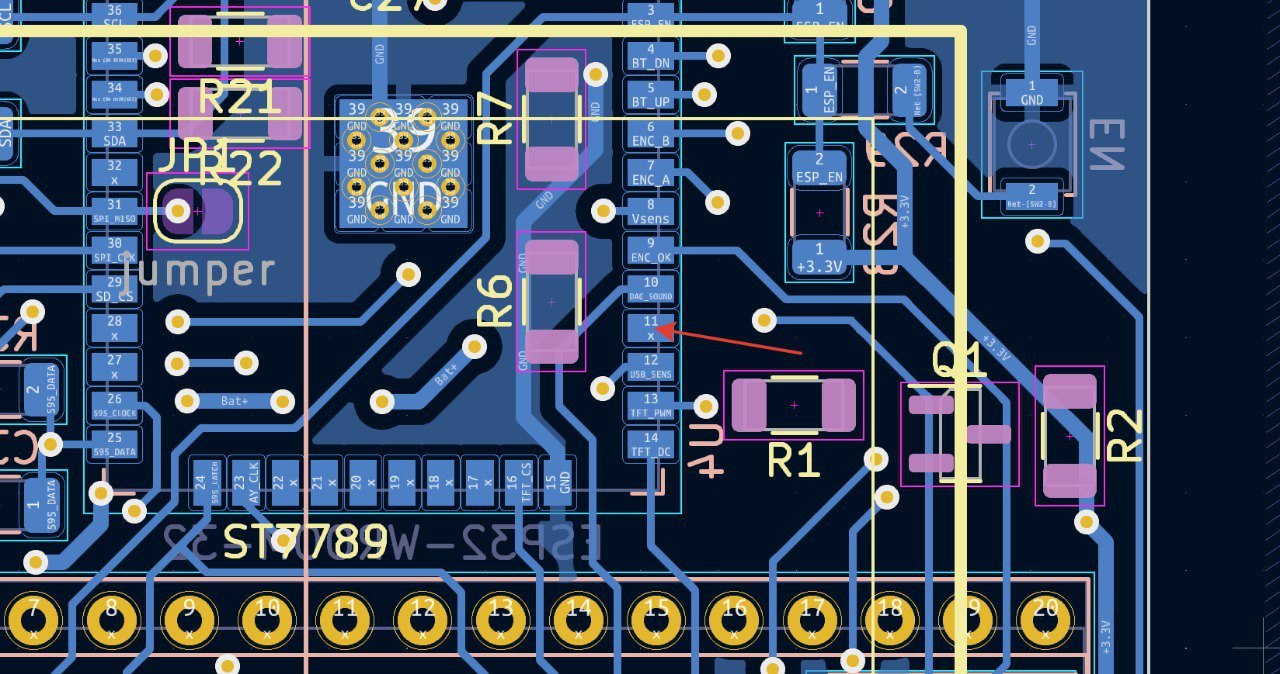

Cut JP1 jumper on revisions A and B first!

ESP32AY-revD2, from the project README
From the project README

Main components on the ESP32AY-revD2

AMS1117-3.374HC595TP4056AY-3-8910DS3231MZSDB62824С32PCM5102AESP32-S3-WROOM-1TPA6130A2RTJTG4

ESP32AY-revD2 bill of materials (BOM)

127 components, 52 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
2
74HC595
U2, U3
1
TP4056
U4
2
AY-3-8910
U5, U7
1
DS3231MZ
U6
1
SDB628
U8
1
24С32
U9
1
PCM5102A
U10
1
ESP32-S3-WROOM-1
U11
1
TPA6130A2RTJTG4
U12
1
IRLML6402
Q1
1
BC807
Q2
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
1
Battery
J2
1
TFP09-2-12B
SD Card
J3
1
MiniJack
J4
1
RotaryEncoder_Switch
Encoder1
1
DOWN
S1
1
UP
S2
1
EG1213
S3
Show 32 more
QtyPartRefs
1
BOOT
SW1
1
EN
SW2
1
ST7789
TFT1
1
OK
D1
1
CHRG
D2
1
PMEG4010CEJ
D3
1
SS14
D4
1
PWR
D5
1
22UH
22uH
L1
1
100UF
100uf
C1
20
100N
100n
C2, C3, C4, C5, C6, C7, C12, C13 +12
1
47UF
47uf
C8
10
10UF
10uf
C9, C10, C24, C27, C37, C38, C39, C40 +2
3
22UF
22uf
C11, C14, C17
3
2.2UF
2.2uF
C23, C43, C44
2
2.2NF
2.2nf
C26, C28
4
470N
470n
C30, C31, C32, C33
16
10K
R1, R2, R6, R7, R8, R9, R11, R13 +8
2
5K1
R3, R4
1
2R
R5
11
1K
R10, R22, R23, R24, R29, R45, R46, R47 +3
1
8,2К*
R12
1
1M
R14
1
100K
R15
1
2k*
R16
2
220
R17, R19
1
47K
47k
R20
1
6.2K
6.2k
R21
4
470
R27, R28, R30, R31
6
4.7K
R33, R34, R35, R36, R37, R38
2
1.5K
R43, R44
2
15K
R51, R52

ESP32AY-revD2 design files

The KiCad project lives in the djspawnbrest/ESP32AY repository on GitHub; these links point at the commit this page was built from.

ESP32AY-revD2: common questions

What microcontroller does the ESP32AY-revD2 use?

The ESP32AY-revD2 is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the ESP32AY-revD2 PCB?

The ESP32AY-revD2 measures 55 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32AY-revD2?

127 components, from 52 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32AY-revD2 design files?

From the djspawnbrest/ESP32AY repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32AY-revD2 design in my own project?

Yes, under the terms of its GPL-3.0 license, which djspawnbrest chose for the repository.

Can I test firmware for the ESP32AY-revD2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
