1802-Mini-1854-Serial
About the 1802-Mini-1854-Serial PCB
1802-Mini-1854-Serial is an open source PCB design by dmadole, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 44 components from 33 distinct parts.
Other key parts include the CDP1854, 4049, 74LS174, 4019 and 4051. By type, the board carries 12 jumpers, 11 ICs, 8 connectors, 8 capacitors, 2 diodes and 2 resistors.
From the project
Sixteen baud rates from 300 to 57600 Jumpers to determine default baud rate at reset Baud rate can be changed by software No rare chips except the CDP1854 itself Supports group I/O port expansion Jumper-selected address 2/3, 4/5, or 6/7 Jumper-selected interrupt poll bit on EF1-E
Sixteen baud rates from 300 to 57600 Jumpers to determine default baud rate at reset Baud rate can be changed by software No rare chips except the CDP1854 itself Supports group I/O port expansion Jumper-selected address 2/3, 4/5, or 6/7 Jumper-selected interrupt poll bit on EF1-EF4 Supports input flow control using software-driven bit Supports output flow control using software-read ES pin Jumper-selected transmit and receive interrupts or only for receive Both DCE (female) and DTE (male) 9-pin ports, populate either or both A TTL-level port with “standard” FTDI-type USB cable pinout

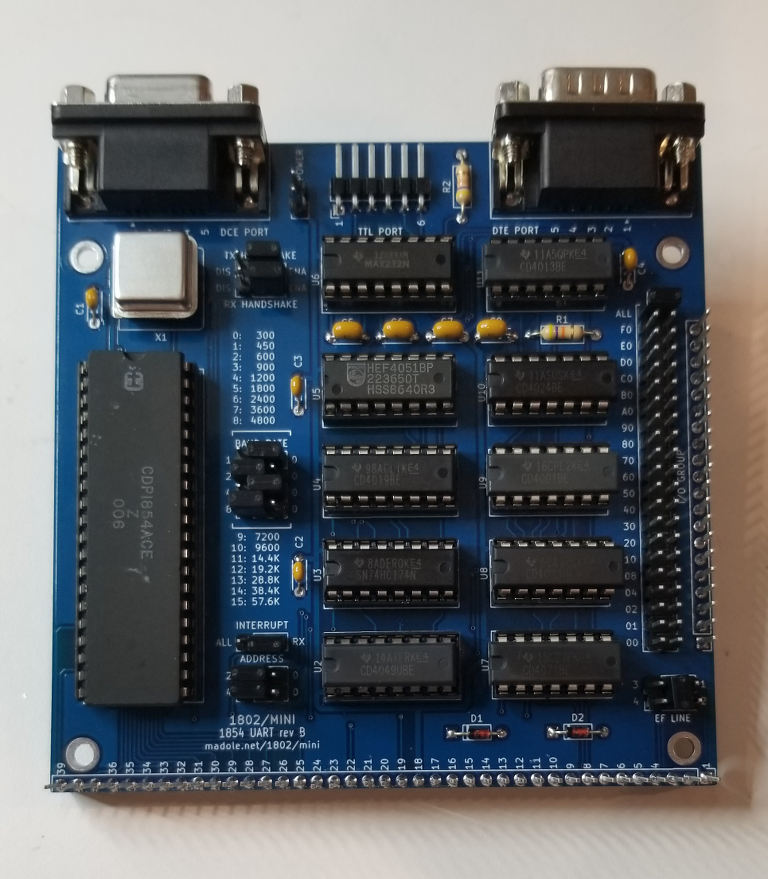

Main components on the 1802-Mini-1854-Serial
1802-Mini-1854-Serial bill of materials (BOM)
44 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CDP1854 | DIP-40_W15.24mm_Socket | U1 |
| 1 | 4049 | DIP-16_W7.62mm_Socket | U2 |
| 1 | 74LS174 | DIP-16_W7.62mm_Socket | U3 |
| 1 | 4019 | DIP-16_W7.62mm_Socket | U4 |
| 1 | 4051 | DIP-16_W7.62mm_Socket | U5 |
| 1 | MAX232 | DIP-16_W7.62mm_Socket | U6 |
| 1 | 4071 | DIP-14_W7.62mm_Socket | U7 |
| 1 | 4023 | DIP-14_W7.62mm_Socket | U8 |
| 1 | 4001 | DIP-14_W7.62mm_Socket | U9 |
| 1 | 4024 | DIP-14_W7.62mm_Socket | U10 |
| 1 | 4013 | DIP-14_W7.62mm_Socket | U11 |
| 1 | 1.8432 | Oscillator_DIP-8 | X1 |
| 4 | Mount | 1pin | J1, J2, J3, J4 |
| 1 | Expansion | PinHeader_1x39_P2.54mm_Vertical | J5 |
| 1 | GRP_EXP | PinHeader_1x20_P2.54mm_Vertical | J6 |
| 1 | GRP_SEL | PinHeader_2x21_P2.54mm_Vertical | J7 |
| 1 | TTL | PinHeader_1x06_P2.54mm_Horizontal | J10 |
| 1 | N2 | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | RX_HSHK | PinHeader_1x03_P2.54mm_Vertical | JP2 |
| 1 | EF1/3 | PinHeader_1x03_P2.54mm_Vertical | JP3 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | EF2/4 | PinHeader_1x03_P2.54mm_Vertical | JP4 |
| 1 | TX_HSHK | PinHeader_1x03_P2.54mm_Vertical | JP5 |
| 1 | BR8 | PinHeader_1x03_P2.54mm_Vertical | JP6 |
| 1 | BR4 | PinHeader_1x03_P2.54mm_Vertical | JP7 |
| 1 | BR2 | PinHeader_1x03_P2.54mm_Vertical | JP8 |
| 1 | BR1 | PinHeader_1x03_P2.54mm_Vertical | JP9 |
| 1 | INT_SRC | PinHeader_1x03_P2.54mm_Vertical | JP10 |
| 1 | Jumper_2_Open | PinHeader_1x02_P2.54mm_Vertical | JP11 |
| 1 | N1 | PinHeader_1x03_P2.54mm_Vertical | JP13 |
| 2 | 4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2 |
| 4 | 0.1u | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1, C2, C3, C4 |
| 4 | 1uF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C5, C6, C7, C8 |
| 2 | R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2 |
1802-Mini-1854-Serial design files
The KiCad project lives in the dmadole/1802-Mini-1854-Serial repository on GitHub; these links point at the commit this page was built from.
1802-Mini-1854-Serial: common questions
How big is the 1802-Mini-1854-Serial PCB?
The 1802-Mini-1854-Serial measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 1802-Mini-1854-Serial?
44 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 1802-Mini-1854-Serial design files?
From the dmadole/1802-Mini-1854-Serial repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 1802-Mini-1854-Serial design in my own project?
The repository has no license, so all rights stay with dmadole. Use it as a reference, and ask the author before reusing the design.
