About the FreeDSP-OCTAVIA PCB
FreeDSP-OCTAVIA is an open source PCB design by freeDSP, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 178 × 99 mm, with 505 components from 134 distinct parts.
Other key parts include the TPS5430DDA, PCM1808QPWRQ1, GP1UXC41QS, PLR135-T10 and AMS1117-5.0. By type, the board carries 207 resistors, 160 capacitors, 31 transistors, 27 ICs, 25 diodes and 22 connectors.
It belongs with the audio designs in this gallery.
From the project

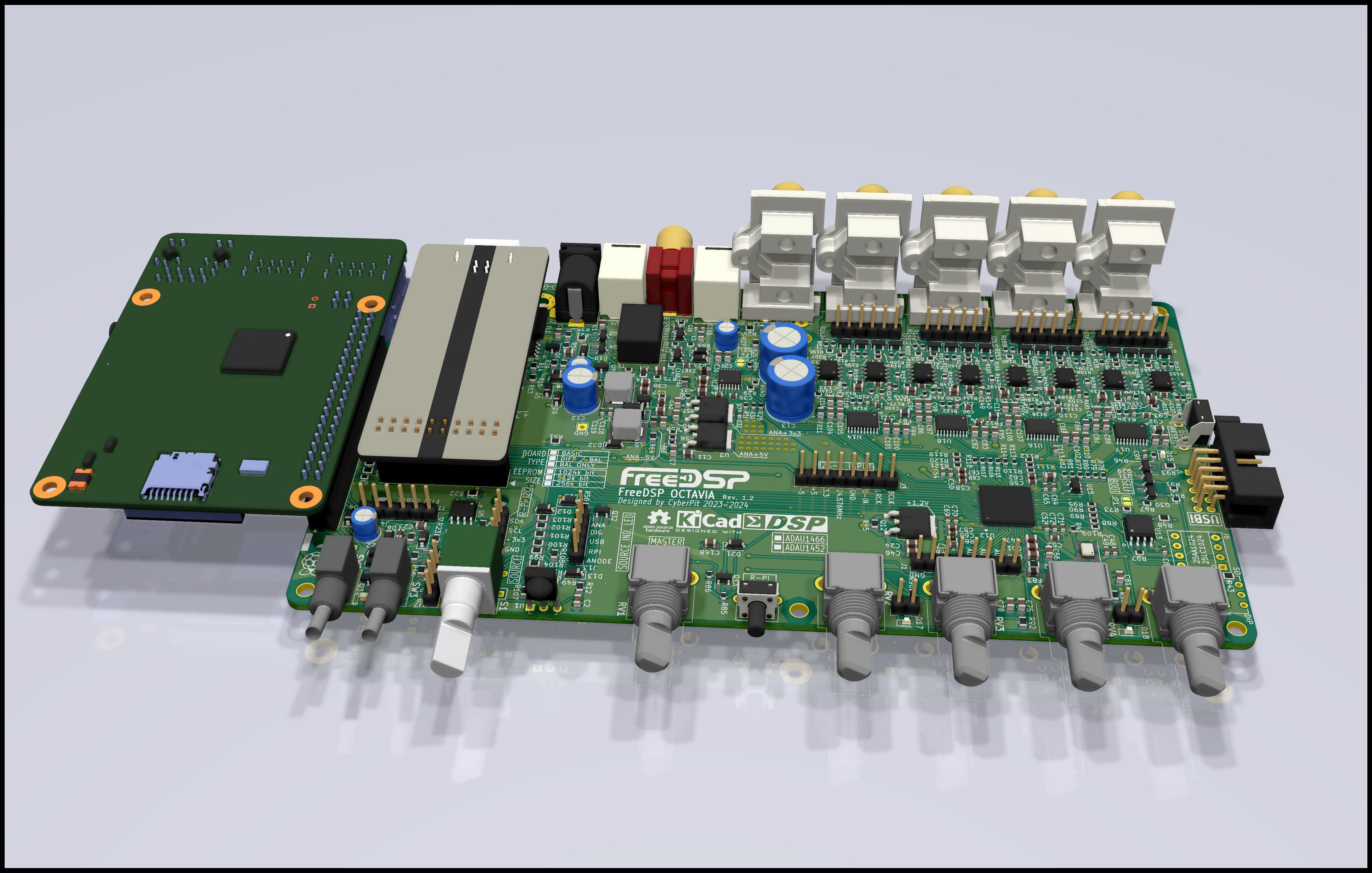

8ch Output ADAU1452/1466 DSP Board with Analog/COAX/OPT/USB/Raspberry-Pi Input
Version 1.2 is the latest commit. version 1.0 is evaluated and it worked. version 0.33j board requires some workarounds. version 0.33j_Fixed is a fixed design of 0.33j, But I recommend you build the latest version 1.2 or 1.1 The errata information is detailed below... https://github.com/freeDSP/freeDSP-OCTAVIA/wiki/Errata-and-Workarounds
Discussion Forum: https://www.diyaudio.com/community/threads/freedsp-octavia.393804/

Main components on the FreeDSP-OCTAVIA
FreeDSP-OCTAVIA bill of materials (BOM)
505 components, 134 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TPS5430DDA | TI_SO-PowerPAD-8_ThermalVias | IC1, U5 |
| 1 | PCM1808QPWRQ1 | PCM1808QPWRQ1 | IC2 |
| 1 | GP1UXC41QS | IR_Receiver_TSOP38238 | U1 |
| 1 | PLR135-T10 | PLR135-T10 | U2 |
| 1 | AMS1117-5.0 LM317AG-TN3-R | TO-252-2 | U3 |
| 1 | PLT133-T10W | PLT133-T10W | U4 |
| 1 | LMC555CMX | SOIC-8_3.9x4.9mm_P1.27mm | U6 |
| 1 | AMS1117-3.3 LM317AG-TN3-R | TO-252-2 | U7 |
| 1 | LM2611AMFX | SOT-23-5 | U8 |
| 1 | 74LVC1G86 | SOT-23-5_HandSoldering | U10 |
| 2 | 74LVC1G04 | SOT-23-5_HandSoldering | U11, U15 |
| 1 | ADAU1452 | LFCSP-72-1EP_10x10mm_P0.5mm_EP5.3x5.3mmL_HandSolder | U12 |
| 1 | 25AA1024 | SOIC-8_5.275x5.275mm_P1.27mm | U13 |
| 4 | PCM5102A | TSSOP-20_4.4x6.5mm_P0.65mm | U14, U16, U17, U18 |
| 8 | OPA1632DR | SOIC127P600X175-8N | U20, U21, U22, U23, U24, U25, U26, U27 |
| 1 | Combo384-Combo384 | Combo384 | A1 |
| 4 | AO3401A | SOT-23_Handsoldering | Q1, Q5, Q7, Q29 |
| 2 | MMBT5401 | SOT-23_Handsoldering | Q2, Q4 |
| 8 | 2N7002 | SOT-23_Handsoldering | Q3, Q6, Q8, Q9, Q13, Q30, Q31, Q32 |
| 16 | 2SC3326 | SOT-23 | Q10, Q11, Q15, Q16, Q17, Q18, Q19, Q20 +8 |
Show 114 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MJD45H11T4 | TO-252-2 | Q12 |
| 1 | OT322524.576MJBA4S | Crystal_SMD_TXC_7M-4pin_3.2x2.5mm_HandSoldering | Y1 |
| 2 | Conn_01x08 | PinHeader_1x08_P2.54mm_Vertical | J1, J3 |
| 1 | DC7.5V-9V IN | BarrelJack_Horizontal | J2 |
| 1 | Header_01x06 | PinHeader_1x06_P2.54mm_Vertical | J4 |
| 5 | RCJ-2223 | RCJ-2223 | J5, J16, J17, J20, J21 |
| 1 | 8P_DIP_SOCKET | DIP-8_W7.62mm_Socket | J6 |
| 2 | Header_01x04 | PinHeader_1x04_P2.54mm_Vertical | J7, J8 |
| 2 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J9, J10 |
| 1 | Conn_Coaxial | RJ-2410N | J11 |
| 1 | IDC_2x5 | IDC-Header_2x05_P2.54mm_Horizontal | J12 |
| 1 | Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J13 |
| 4 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J24, J25, J27, J28 |
| 1 | Conn_02x20_Odd_Even | PinSocket_2x20_P2.54mm_Vertical | P1 |
| 1 | ACM9070 | ACM9070F | FL1 |
| 5 | B10K | RK09L12B0A31 | RV1, RV2, RV3, RV4, RV5 |
| 1 | SR10010F-0204-20F0B-C7-N-0027_ALT | SR10010F020420F0BC7N0027 | S1 |
| 1 | SW_Push | SW_Tactile_SPST_Angled_PTS645Vx83-2LFS | SW1 |
| 2 | SW_SPDT | 2MS1T1B4M7QES | SW2, SW3 |
| 1 | SW_NOP_DPDT | SW_CuK_JS202011AQN_DPDT_Angled | SW4 |
| 1 | DSP_RES | SW_Tactile_SPST_Angled_PTS645Vx83-2LFS | SW7 |
| 1 | PE-65612NL | PE65612NL | T1 |
| 13 | 1N4148W | D_SOD-123 | D1, D2, D4, D5, D6, D7, D8, D11 +5 |
| 1 | LED_ABGR | LED_0603_ABGR | D3 |
| 2 | SS2040FL | D_SOD-123 | D9, D10 |
| 2 | D_SCHOTTKY_5A D_Schottky_5A | D_SMA | D14, D16 |
| 1 | LED_YELLOW | LED_0603_1608Metric_Castellated | D15 |
| 1 | LED_GRN | LED_0603_1608Metric_Castellated | D17 |
| 1 | LED_RED | LED_0603_1608Metric_Castellated | D18 |
| 1 | LED_BLUE | LED_0603_1608Metric_Castellated | D19 |
| 1 | D_SCHOTTKY_1A D_Schottky_1A | D_SMA | D20 |
| 2 | SS2040FL | D_SOD-123 | D24, D25 |
| 4 | GZ2012D601TF | 0805 | FB1, FB3, FB4, FB13 |
| 1 | GZ2012D601TF | L_0805_2012Metric | FB2 |
| 8 | GZ2012D601TF | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | FB5, FB6, FB7, FB8, FB9, FB10, FB11, FB12 |
| 1 | SDFL2012T220KTF | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L1 |
| 3 | 22uH(2A) | L_Taiyo-Yuden_NR-60xx_HandSoldering | L2, L4, L5 |
| 1 | 22uH(3A) | L_Taiyo-Yuden_NR-60xx_HandSoldering | L3 |
| 30 | 0.1UF 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C7, C9, C10, C11, C14, C17 +22 |
| 1 | 0.01UF 0.01uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 3 | 1UF/16V 1uF/16V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C6, C20 |
| 6 | 10UF/16V 10uF/16V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C21, C37, C38, C121, C122 |
| 1 | 22uF/16V | CP_Radial_D5.0mm_P2.00mm | C8 |
| 1 | 220uF/16V | CP_Radial_D7.5mm_P2.50mm | C12 |
| 2 | 220uF/6.3V | CP_Radial_D10.0mm_P2.50mm_P5.00mm | C13, C164 |
| 2 | 22UF/6.3V 22uF/6.3V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C15, C43 |
| 22 | 0.1UF 0.1uF | C_0603_1608Metric | C16, C32, C35, C49, C53, C55, C58, C59 +14 |
| 1 | 33uF/16V | CP_Radial_D5.0mm_P2.00mm | C22 |
| 1 | 1UF/50V 1uF/50V | C_0805 | C23 |
| 4 | 100PF 100pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C25, C26, C29, C30 |
| 2 | 2.2uF | CP_Radial_D5.0mm_P2.00mm | C27, C28 |
| 1 | 0.1UF 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C31 |
| 11 | 10UF 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C33, C60, C75, C76, C82, C84, C86, C88 +3 |
| 30 | 10UF 10uF | C_0603_1608Metric | C34, C50, C90, C91, C92, C93, C94, C95 +22 |
| 1 | 4700PF 4700pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C36 |
| 4 | 1UF 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C44, C141, C142, C143 |
| 1 | 10NF 10nF | C_0603_1608Metric | C48 |
| 1 | 1NF 1nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C51 |
| 10 | 1UF 1uF | C_0603_1608Metric | C52, C54, C57, C62, C64, C67, C69, C71 +2 |
| 1 | 150PF 150pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C56 |
| 1 | NOP | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C66 |
| 8 | 4.7nF(C0G) | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C96, C97, C98, C99, C114, C115, C116, C117 |
| 1 | 10UF 10uF | C_0805_2012Metric | C100 |
| 1 | 0.1UF 0.1uF | C_0805_2012Metric | C101 |
| 1 | 1000PF 1000pF | C_0603_1608Metric | C120 |
| 8 | 470pF(C0G) | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C144, C146, C150, C151, C157, C158, C160, C161 |
| 1 | 10uF | C_0603_1608Metric | C165 |
| 1 | 2.2pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C166 |
| 1 | 0.1uF | C_0603_1608Metric | C167 |
| 1 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C168 |
| 9 | 47R | R_0603_1608Metric | R1, R3, R4, R28, R29, R30, R39, R87 +1 |
| 7 | 10K 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R18, R32, R34, R50, R64, R108 |
| 9 | 100K 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R16, R20, R23, R35, R36, R37, R51 +1 |
| 1 | 330R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6 |
| 3 | 3.3K 3.3k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R33, R71 |
| 3 | 47R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R8, R11, R12 |
| 2 | NOP | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R9, R10 |
| 1 | 5.6K 5.6k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13 |
| 2 | 3.24K 3.24k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R14, R17 |
| 1 | 470K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R15 |
| 15 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R19, R42, R65, R93, R96, R98, R99, R100 +7 |
| 2 | 1MEG | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R21, R22 |
| 2 | 18K 18k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R24, R25 |
| 2 | 27K 27k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R26, R27 |
| 9 | 10R | R_0603_1608Metric | R31, R52, R144, R145, R151, R153, R177, R184 +1 |
| 1 | 33R 0R | R_0603_1608Metric | R38 |
| 1 | NOP | R_0603_1608Metric | R40 |
| 23 | 33R | R_0603_1608Metric | R41, R77, R78, R79, R80, R81, R82, R88 +15 |
| 2 | 0R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R43, R48 |
| 21 | 2.2K 2.2k | R_0603_1608Metric | R44, R67, R68, R86, R91, R133, R135, R137 +13 |
| 22 | 10K 10k | R_0603_1608Metric | R45, R46, R47, R85, R97, R131, R163, R164 +14 |
| 1 | 3.3K 10k | R_0603_1608Metric | R49 |
| 5 | 0R | R_0603_1608Metric | R53, R61, R138, R186, R196 |
| 1 | 47R | R_0603_1608Metric | R55 |
| 1 | 100R | R_0603_1608Metric | R56 |
| 1 | 120R | R_0603_1608Metric | R57 |
| 1 | 330R | R_0603_1608Metric | R58 |
| 1 | 200R | R_0603_1608Metric | R59 |
| 1 | 10R | R_0603_1608Metric | R60 |
| 2 | 2.2k | R_0603_1608Metric | R62, R63 |
| 8 | NOP | R_0603_HandSoldering | R66, R70, R136, R143, R147, R149, R157, R158 |
| 2 | 75R 150R | R_0603_1608Metric | R69, R75 |
| 1 | 4.3K 4.3k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R72 |
| 1 | 1k | R_0603_1608Metric | R73 |
| 1 | 4.7K 100k | R_0603_1608Metric | R74 |
| 1 | 330R 1.2k | R_0603_1608Metric | R76 |
| 1 | 33R 1k | R_0603_1608Metric | R83 |
| 1 | 3.3K 3.3k | R_0603_1608Metric | R84 |
| 2 | 100R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R92, R94 |
| 8 | 220R 470R | R_0603_1608Metric | R122, R123, R124, R125, R126, R127, R128, R129 |
| 1 | 29.4K 29.4k | R_0603_1608Metric | R130 |
| 8 | 1.1K 1.1k | R_0603_1608Metric | R132, R134, R140, R142, R173, R175, R181, R183 |
| 16 | 220R | R_0603_1608Metric | R152, R154, R155, R156, R159, R160, R161, R162 +8 |
| 4 | NOP | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R171, R172, R212, R213 |
FreeDSP-OCTAVIA design files
The KiCad project lives in the freeDSP/freeDSP-OCTAVIA repository on GitHub; these links point at the commit this page was built from.
FreeDSP-OCTAVIA: common questions
How big is the FreeDSP-OCTAVIA PCB?
The FreeDSP-OCTAVIA measures 178 × 99 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the FreeDSP-OCTAVIA?
505 components, from 134 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the FreeDSP-OCTAVIA design files?
From the freeDSP/freeDSP-OCTAVIA repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the FreeDSP-OCTAVIA design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which freeDSP chose for the repository.
