About the ECPBreaker PCB
ECPBreaker is an open source FPGA PCB design by gregdavill, published on GitHub. It is a 6-layer board measuring 50 × 37 mm, with 117 components from 50 distinct parts.
Its main chip is the LFE5U-12F-7BG256I, from the FPGA family. Other key parts include the TPD3S014DBVR, CY7C68013A-56LTXC, W25Q256JVEIQ, TLV62569DRLR and TLV74225PDQNR. By type, the board carries 51 capacitors, 35 resistors, 13 ICs, 7 connectors, 6 diodes and 3 inductors.
It belongs with the usb & debug tools designs in this gallery.
From the project
1 circuit board design a day for 31 days.
The icebreaker is a friendly development board for the iCE40: https://github.com/icebreaker-fpga/icebreaker
The icebreaker is a really nice and handy little board. But it has a small flaw, the ice40 FPGA it uses is quite smol, while it's often fun to see the exciting projects people pull off with 5k LUTs. Sometimes it's handy to have a bit of extra space available whe experimenting.

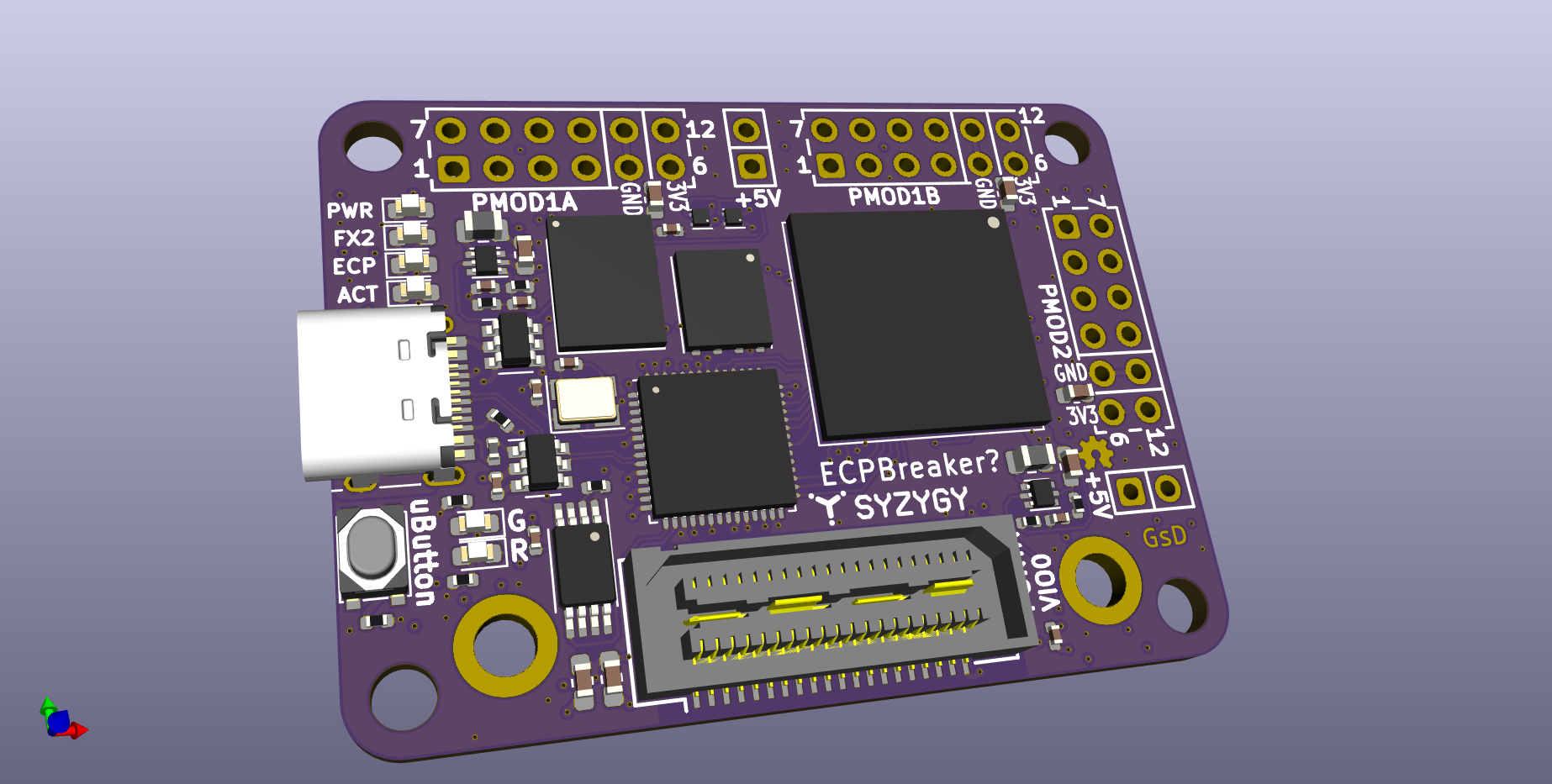

Main components on the ECPBreaker
ECPBreaker bill of materials (BOM)
117 components, 50 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPD3S014DBVR TPD3S014 | SOT-23-6 | U1 |
| 1 | CY7C68013A-56LTXC CY7C68013A-56LTX | Cypress_QFN-56-1EP_8x8mm_P0.5mm_EP4.5x5.6mm_ThermalVias | U2 |
| 1 | W25Q256JVEIQ W25Q256 | WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4mm | U3 |
| 2 | TLV62569DRLR TLV62569DRL | SOT-666 | U4, U5 |
| 1 | TLV74225PDQNR TLV725P | Texas_X2SON-4_1x1mm_P0.65mm | U6 |
| 1 | CAT24C256YI-GT3 CAT24C256W | TSSOP-8_4.4x3mm_P0.65mm | U7 |
| 1 | LFE5U-12F-7BG256I ECP5U-12-CABGA256 | BGA-256_14.0x14.0mm_Layout16x16_P0.8mm_Ball0.45mm_Pad0.32mm_NSMD | U8 |
| 1 | IS66WVH16M8ALL-166B1LI IS66WVH16M8ALL | BGA-24_8.0x6.0mm_Layout5x5_P0.8mm_Pad0.35mm_NSMD | U9 |
| 1 | LM3880MF-1AA/NOPB LM3880MF-1AF | SOT-23-6 | U10 |
| 1 | TLV73318PDQNR TLV718P | Texas_X2SON-4_1x1mm_P0.65mm | U11 |
| 1 | DAC081C081CIMK/NOPB DAC081C081CIMK | SOT-23-6 | U12 |
| 1 | TPS73101DBVR TPS73101DBV | SOT-23-5 | U13 |
| 1 | XXHBBCNAOF-24.000000MHZ 24M | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | QSE-020-01-F-D-A SYZYGY-STD | SYZYGY_standard_carrier | J1 |
| 3 | A2541HWR-2x6P PMOD | PMOD_Angled_2x06 | J21, J23, J27 |
| 2 | 5V AUX | PinHeader_2x01_P2.54mm_Vertical | J22, J26 |
| 1 | U262-161N-4BVC11 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J24 |
| 1 | PTS810SJK250SMTRLFS TACT | SW_SPST_PTS810 | SW1 |
| 4 | E6C0603YGAC1UDA GRN | LED_0603_1608Metric | D1, D2, D3, D4 |
| 1 | E6C0603URAC1UDA RED | LED_0603_1608Metric | D5 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | E6C0603UYAC1UDA YEL | LED_0603_1608Metric | D6 |
| 1 | BLM15AX221SN1D 220R | L_0402_1005Metric | FB1 |
| 2 | SLM20122R2MIT 2.2uH | L_0805_2012Metric | L3, L4 |
| 1 | CC0603KRX5R6BB475 4.7uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1 |
| 25 | CC0402JRX7R7BB104 0.1uF | C_0402_1005Metric | C2, C3, C4, C5, C6, C7, C8, C9 +17 |
| 3 | CC0402MRX5R5BB475 4.7uF | C_0402_1005Metric | C15, C23, C51 |
| 2 | CC0402JRNPO9BN180 18p | C_0402_1005Metric | C16, C17 |
| 6 | CC0603KRX5R5BB106 10uF | C_0603_1608Metric | C24, C28, C29, C39, C40, C42 |
| 4 | CC0402KRX5R8BB105 1uF | C_0402_1005Metric | C25, C30, C31, C43 |
| 2 | CC0402BRNPO9BN6R8 6.8pF | C_0402_1005Metric | C26, C27 |
| 3 | DNP | C_0603_1608Metric | C32, C33, C34 |
| 2 | CC0603KRX5R6BB475 4.7uF | C_0603_1608Metric | C44, C46 |
| 3 | CL10A226MP8NUNE 22uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C48, C49, C50 |
| 3 | AC0402FR-0720KL 20k | R_0402_1005Metric | R1, R2, R5 |
| 6 | YC124-JR-0733RL 33R | R_Array_Convex_4x0402 | R3, R4, R7, R16, R17, R18 |
| 3 | AC0402FR-072K2L 2k2 | R_0402_1005Metric | R6, R12, R25 |
| 1 | AC0402FR-0742K2L 42k2 | R_0402_1005Metric | R8 |
| 3 | AC0402FR-07100KL 100k | R_0402_1005Metric | R9, R26, R28 |
| 2 | AC0402FR-07210KL 210K | R_0402_1005Metric | R10, R35 |
| 1 | YC124-JR-0710KL 10k | R_Array_Convex_4x0402 | R11 |
| 5 | AC0402FR-0710KL 10K | R_0402_1005Metric | R13, R19, R29, R31, R32 |
| 2 | AC0402FR-07330RL 330E | R_0402_1005Metric | R14, R15 |
| 1 | AC0402FR-071KL 1k | R_0402_1005Metric | R20 |
| 2 | AC0402FR-075K1L 5.1k | R_0402_1005Metric | R21, R22 |
| 1 | AC0402FR-0747KL 47k | R_0402_1005Metric | R23 |
| 1 | AC0402FR-0784K5L 84k5 | R_0402_1005Metric | R24 |
| 1 | DNP | R_0402_1005Metric | R27 |
| 1 | AC0402FR-0724K3L 24k3 | R_0402_1005Metric | R30 |
| 1 | AC0402FR-0733KL 33K | R_0402_1005Metric | R33 |
| 1 | AC0402FR-0724K9L 24k9 | R_0402_1005Metric | R34 |
