Nft hydroponic controller
About the Nft hydroponic controller PCB
Nft hydroponic controller is an open source ESP32 PCB design by hasan-abuzaid, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 135 × 101.3 mm, with 97 components from 45 distinct parts.
Its main chip is the C2913202, from the ESP32 family. Other key parts include the LM2596S-5, AMS1117-3.3, CH340C, ADS1115IDGS and BME280. By type, the board carries 22 resistors, 15 capacitors, 12 connectors, 8 transistors, 8 switches and 8 diodes.
It belongs with the iot & wireless, sensors and dev boards & breakouts designs in this gallery.
From the project
Open-hardware ESP32-S3 controller for NFT hydroponics: pH/EC/level sensing, 6 relay channels, ESPHome + Home Assistant
Status: v1.1 boards fabricated and assembled by JLCPCB. Bring-up and on-site testing in progress.

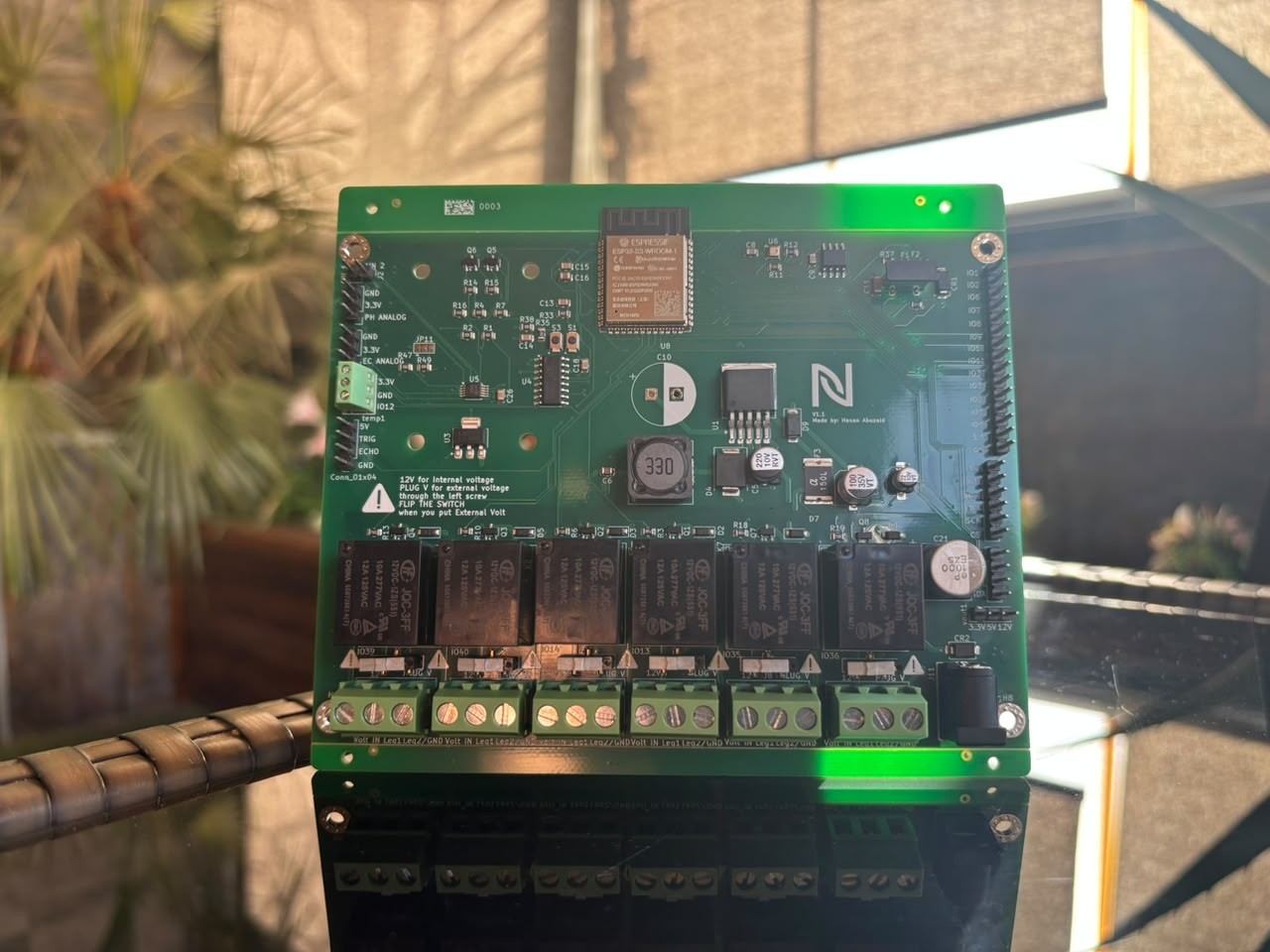

A 4-layer, ESP32-S3 based controller board that turns a manual NFT (Nutrient Film Technique) hydroponic system into a self-regulating one. It reads pH, EC and water level from the main reservoir, switches up to six 12 V pumps (nutrient A, nutrient B, pH adjust, circulation, …) and integrates natively with Home Assistant through ESPHome.
Main components on the Nft hydroponic controller
Nft hydroponic controller bill of materials (BOM)
97 components, 45 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM2596S-5 | TO-263-5_TabPin3 | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U3 |
| 1 | CH340C | SOIC-16_3.9x9.9mm_P1.27mm | U4 |
| 1 | ADS1115IDGS | TSSOP-10_3x3mm_P0.5mm | U5 |
| 1 | BME280 | Bosch_LGA-8_2.5x2.5mm_P0.65mm_ClockwisePinNumbering | U6 |
| 1 | MB85RC256VPNF-G-AMERE2 RAMXEED/FUJITSU(富士通) | C45273903_SOP-8_L4_9-W3_9-P1_27-LS6_0-BL | U7 |
| 1 | C2913202 ESP32-S3-WROOM-1(N16R8) ESPRESSIF(乐鑫) | C2913202_WIRELM-SMD_ESP32-S3-WROOM-1 | U8 |
| 8 | S8050 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB_C_Standing | J1 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | CONN_01X15 Conn_01x15 | PinHeader_1x15_P2.54mm_Vertical | J3 |
| 6 | SCREW_TERMINAL_01X03 Screw_Terminal_01x03 | TerminalBlock_Phoenix_MKDS-1,5-3-5.08_1x03_P5.08mm_Horizontal | J4, J5, J6, J7, J8, J9 |
| 1 | CONN_01X06 Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J10 |
| 1 | C84007 DC-005 2.0mm 韩国韩荣 | C84007_DC-IN-TH_DC-005C-20A | J11 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J13 |
| 2 | SK34A-LTP | SMADO-214AC_MCC | CR1, CR2 |
| 1 | Conn_01x04 | PinSocket_1x04_P2.54mm_Vertical | Conn_01x04 |
| 2 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | EC-sensor1, PH-sensor1 |
| 2 | PGB1010603MRHF | FUSE_PGB10106_LTF | F1, F2 |
| 1 | Polyfuse | Fuse_2920_7451Metric_Pad2.10x5.45mm_HandSolder | F3 |
Show 25 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | JQC-3FF-012-1Z | Relay_SPDT_Hongfa_JQC-3FF_0XX-1Z | K2, K3, K4, K5, K6, K7 |
| 2 | B3U-1000P | SW_B3U-1000P | S1, S3 |
| 6 | SW_SPST | C515802_SW-SMD_NSI-10S | SW4, SW5, SW6, SW7, SW8, SW9 |
| 1 | SCREW_TERMINAL_01X03 Screw_Terminal_01x03 | C474921_CONN-TH_3P-P2_54_KF128-2_54-3P | temp1 |
| 1 | CONN_01X03 Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | vout1 |
| 6 | 1N4148 | D_SOD-123 | D2, D3, D5, D6, D7, D8 |
| 1 | 1N5822 | D_SMC | D4 |
| 1 | SMAJ15A | D_SMA | D9 |
| 1 | 33UH 33uH | L_12x12mm_H6mm | L1 |
| 1 | 220UF 220uF | C_Elec_5x5.4 | C5 |
| 2 | 10UF 10uF | C_0805_2012Metric | C6, C16 |
| 7 | 100NF 100nF | C_0805_2012Metric | C8, C9, C13, C14, C15, C18, C26 |
| 1 | 2200UF 2200uF | CP_Radial_D12.5mm_P5.00mm | C10 |
| 1 | C23631 1nf 2kv | C_1206_3216Metric | C11 |
| 1 | 100uF 35v | CP_Elec_6.3x7.7 | C12 |
| 1 | 22uF 10v | CP_Elec_5x5.4 | C17 |
| 1 | 1000uf | CP_Elec_10x10.5 | C21 |
| 1 | 1kΩ | R_0805_2012Metric | R1 |
| 1 | 2kΩ | R_0805_2012Metric | R2 |
| 6 | 750Ω | R_0805_2012Metric | R3, R6, R10, R13, R18, R19 |
| 4 | 10kΩ | R_0805_2012Metric | R4, R7, R14, R15 |
| 3 | 4.7kΩ | R_0805_2012Metric | R11, R12, R16 |
| 4 | 10K 10k | R_0805_2012Metric | R33, R38, R47, R49 |
| 1 | 22 | R_0805_2012Metric | R35 |
| 2 | 5K1 5k1 | R_0805_2012Metric | R36, R37 |
Nft hydroponic controller design files
The KiCad project lives in the hasan-abuzaid/nft-hydroponic-controller repository on GitHub; these links point at the commit this page was built from.
Nft hydroponic controller: common questions
What microcontroller does the Nft hydroponic controller use?
The Nft hydroponic controller is built around the C2913202, from the ESP32 family.
How big is the Nft hydroponic controller PCB?
The Nft hydroponic controller measures 135 × 101.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Nft hydroponic controller?
97 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Nft hydroponic controller design files?
From the hasan-abuzaid/nft-hydroponic-controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Nft hydroponic controller design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which hasan-abuzaid chose for the repository.
Can I test firmware for the Nft hydroponic controller without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
