Sidewalk Devkit
About the Sidewalk Devkit PCB
Sidewalk Devkit is an open source Nordic nRF PCB design by hlord2000, published on GitHub under the CERN-OHL-P-2.0 license. It is a 6-layer board measuring 55 × 34 mm, with 137 components from 67 distinct parts.
Its main chip is the nRF54L15-QFAA, from the Nordic nRF family. Other key parts include the nPM1300-QEAA, SX1262IMLTRT, BGS12SN6E6327XTSA1, USBLC6-2P6 and TXU0204RUTR. By type, the board carries 67 capacitors, 18 ICs, 18 resistors, 9 inductors, 6 connectors and 5 diodes.
It belongs with the rf & radio, sensors and iot & wireless designs in this gallery.
From the project

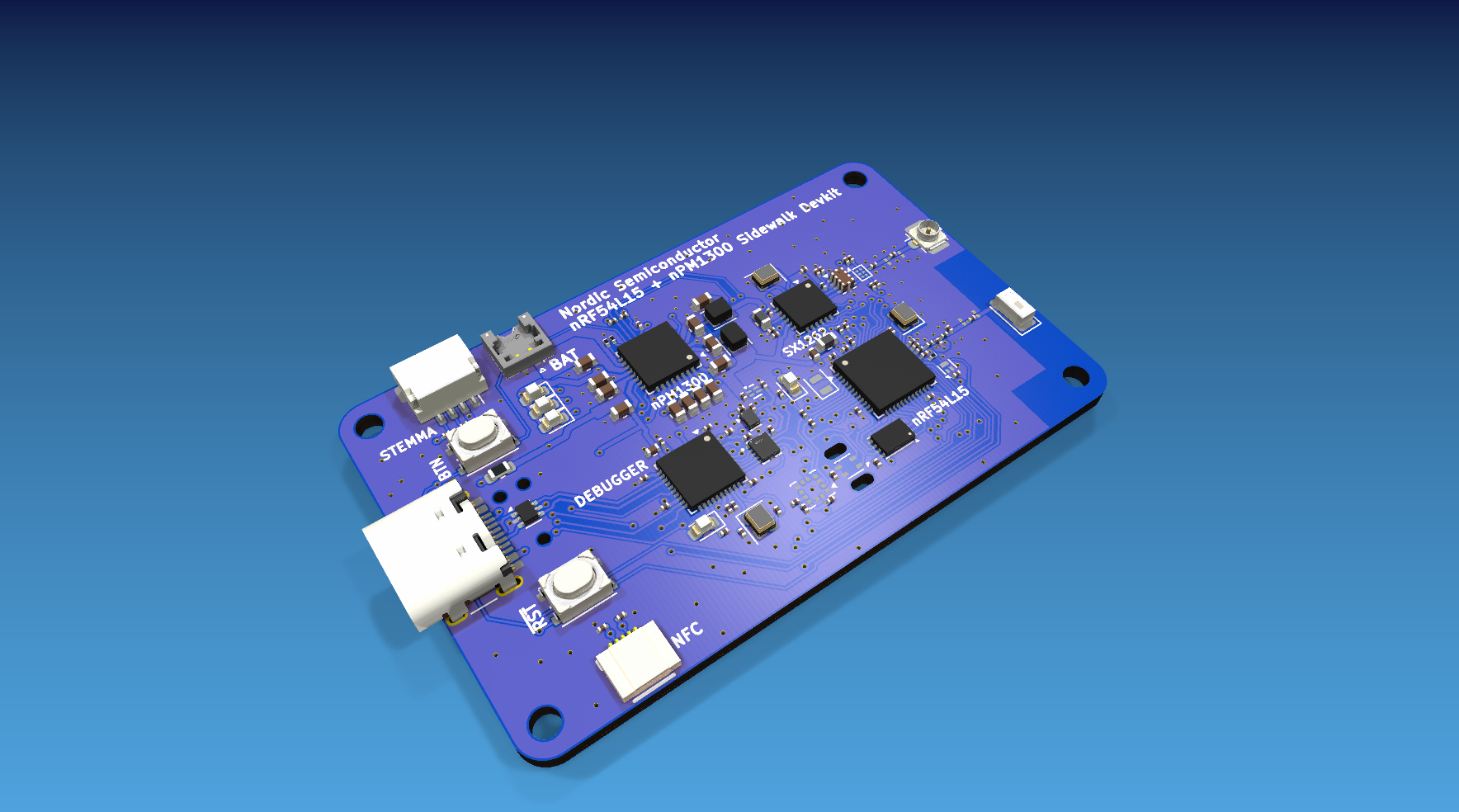

KiCad hardware design for a compact Nordic Semiconductor devkit built around an nRF54L15 target, nPM1300 power management, and an SX1262 sub-GHz radio front end.
KiCad hardware design for a compact Nordic Semiconductor devkit built around an nRF54L15 target, nPM1300 power management, and an SX1262 sub-GHz radio front end.
- nRF54L15-QFAA target SoC with external 32 MHz and 32.768 kHz crystals. - nPM1300-QEAA PMIC for USB/battery power management, charging, and status LEDs. - SX1262IMLTRT sub-GHz transceiver with RF switch/filter network, U.FL, and chip antenna footprints. - On-board nRF52833-QDXX debug helper with USB, SWD, UART, and level-translated target boundary. - USB-C input with ESD protection and a 1 A fuse. - Battery connector, reset/user…
Main components on the Sidewalk Devkit
Sidewalk Devkit bill of materials (BOM)
137 components, 67 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | nRF54L15-QFAA | QFN-48-1EP_6x6mm_P0.4mm_EP4.6x4.6mm_ThermalVias | U1 |
| 1 | nPM1300-QEAA | QFN-32-1EP_5x5mm_P0.5mm_EP3.6x3.6mm_ThermalVias | U2 |
| 1 | SX1262IMLTRT | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm_ThermalVias | U3 |
| 1 | BGS12SN6E6327XTSA1 | Infineon_PG-TSNP-6-10_0.7x1.1mm_0.7x1.1mm_P0.4mm | U4 |
| 1 | USBLC6-2P6 | SOT-666 | U5 |
| 1 | TXU0204RUTR TI(德州仪器) | UQFN-12_L2.0-W1.7-P0.40-TL | U6 |
| 1 | nRF52833-QDXX | QFN-40-1EP_5x5mm_P0.4mm_EP3.6x3.6mm_ThermalVias | U7 |
| 1 | TXU0101DRYR TI(德州仪器) | SON-6_L1.5-W1.0-P0.50-TL | U8 |
| 1 | STEMMA-QT | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | U9 |
| 5 | TPS22991 | 4-UQFN-0.9x0.8mm | U10, U14, U15, U16, U17 |
| 1 | SHT4x | Sensirion_DFN-4_1.5x1.5mm_P0.8mm_SHT4x_NoCentralPad | U11 |
| 1 | TMUX1511RSVR TI(德州仪器) | UTQFN-16_L2.6-W1.8-P0.40-BL | U12 |
| 1 | MX25R1635FZUIL0 | Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm | U13 |
| 1 | LIS2DH | LGA-14_2x2mm_P0.35mm_LayoutBorder3x4y | U18 |
| 3 | Q_NMOS_GSD | Diodes_DFN1006-3 | Q1, Q2, Q3 |
| 3 | 32MHz, 10pF | Crystal_SMD_2016-4Pin_2.0x1.6mm | X1, Y1, Y2 |
| 1 | 32.768kHz | Crystal_SMD_2012-2Pin_2.0x1.2mm | X2 |
| 1 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_HRO_TYPE-C-31-M-12-Edge_Silkscreen_Removed | J1 |
| 1 | Conn_Coaxial_Small | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J2 |
| 1 | Conn_01x02_MountingPin | JST_ACH_BM02B-ACHSS-GAN-ETF_1x02-1MP_P1.20mm_Vertical | J4 |
Show 47 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J5, J6 |
| 1 | Conn_01x05_MountingPin | CONN-SMD_5P-P0.50_0.5K-1.2W-5PWB | J7 |
| 1 | Antenna_Chip | Johanson_2450AT18x100 | AE1 |
| 1 | 1A | Fuse_0603_1608Metric | F1 |
| 1 | 0900FM15K0039 | Balun_Johanson_0900FM15K0039 | FL1 |
| 2 | SW_Push | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW1, SW2 |
| 2 | 0R | C_0201_0603Metric_L | Z2, Z5 |
| 3 | LED_Blue | LED_0603_1608Metric | D1, D4, D5 |
| 1 | LED_Red | LED_0603_1608Metric | D2 |
| 1 | LED_Green | LED_0603_1608Metric | D3 |
| 1 | 120R/0.2A | L_0201_0603Metric_L | FB1 |
| 1 | 4.7uH | L_0603_1608Metric_L | L1 |
| 1 | 2.7nH | L_0201_0603Metric_L | L2 |
| 2 | 3.5nH | L_0201_0603Metric_L | L3, L4 |
| 2 | 2.2uH | L_0806_2016Metric_L | L5, L6 |
| 1 | 47nH | L_0201_0603Metric_L | L7 |
| 1 | 15uH | L_0603_1608Metric_L | L8 |
| 30 | 1uF | C_0201_0603Metric_L | C1, C2, C3, C4, C27, C28, C36, C41 +22 |
| 1 | 10uF | C_0402_1005Metric_L | C5 |
| 1 | 1.5pF | C_0201_0603Metric_L | C6 |
| 2 | 2.2uF | C_0201_0603Metric_L | C7, C10 |
| 1 | 3.9pF | C_0201_0603Metric_L | C8 |
| 1 | 2.0pF | C_0201_0603Metric_L | C9 |
| 1 | 0.3pF | C_0201_0603Metric_L | C11 |
| 1 | 10nF | C_0201_0603Metric_L | C12 |
| 1 | 2.2nF | C_0201_0603Metric_L | C13 |
| 2 | 1uF | C_0603_1608Metric_L | C14, C21 |
| 2 | 100nF | C_0201_0603Metric_L | C15, C38 |
| 9 | 10uF | C_0603_1608Metric_L | C16, C17, C18, C19, C22, C23, C24, C25 +1 |
| 1 | 2.2uF | C_0603_1608Metric_L | C20 |
| 1 | 47nF | C_0201_0603Metric_L | C29 |
| 1 | 470nF | C_0201_0603Metric_L | C30 |
| 1 | 47pF | C_0201_0603Metric_L | C31 |
| 2 | 1nF | C_0201_0603Metric_L | C32, C34 |
| 1 | 39pF | C_0201_0603Metric_L | C33 |
| 2 | 4.7uF | C_0201_0603Metric_L | C35, C40 |
| 1 | 100pF | C_0201_0603Metric_L | C37 |
| 1 | 4.7uF | C_0402_1005Metric_L | C39 |
| 2 | 12pF | C_0201_0603Metric_L | C44, C45 |
| 2 | 330pF | C_0201_0603Metric_L | C52, C53 |
| 1 | 1kR | R_0201_0603Metric_L | R1 |
| 1 | 47kR | R_0201_0603Metric_L | R2 |
| 1 | 470kR | R_0201_0603Metric_L | R3 |
| 2 | 100R | C_0201_0603Metric_L | R4, R5 |
| 6 | 5.1kR | C_0201_0603Metric_L | R6, R7, R9, R10, R11, R12 |
| 5 | 100kR | C_0201_0603Metric_L | R8, R14, R15, R16, R18 |
| 2 | 1kR | C_0201_0603Metric_L | R13, R17 |
Sidewalk Devkit design files
The KiCad project lives in the hlord2000/Sidewalk_Devkit repository on GitHub; these links point at the commit this page was built from.
- LayoutSidewalk_Devkit.kicad_pcb
- SchematicSidewalk_Devkit.kicad_sch
Sidewalk Devkit: common questions
What microcontroller does the Sidewalk Devkit use?
The Sidewalk Devkit is built around the nRF54L15-QFAA, from the Nordic nRF family.
How big is the Sidewalk Devkit PCB?
The Sidewalk Devkit measures 55 × 34 mm, has 6 copper layers and is 1.687 mm thick.
How many components are on the Sidewalk Devkit?
137 components, from 67 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sidewalk Devkit design files?
From the hlord2000/Sidewalk_Devkit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Sidewalk Devkit design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which hlord2000 chose for the repository.
Can I test firmware for the Sidewalk Devkit without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
