About the Electricload PCB

Electricload is an open source ESP32 PCB design by hnz1102, published on GitHub. It is a 2-layer board measuring 185 × 98 mm, with 71 components from 35 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16R8, from the ESP32 family. Other key parts include the LD1117S33TR, CH224K, SPX3819M5-L, SSD1331_DISPLAY and OPA187IDBVR. By type, the board carries 28 resistors, 22 capacitors, 9 ICs, 5 connectors, 4 transistors and 1 switch.

It belongs with the power & battery, sensors and iot & wireless designs in this gallery.

From the project

Electric Load and Logger

This is an Electric Load and Logger. It can consume the power of the device and send the data to the server. The maximum power is 100W, maximum voltage is 30V, and maximum current is 10A. But, it must be used under 100W. And it can measure the voltage, current, and power consumption of the device and send the data to the InfluxDB server. You can see the data on the Dashboard.

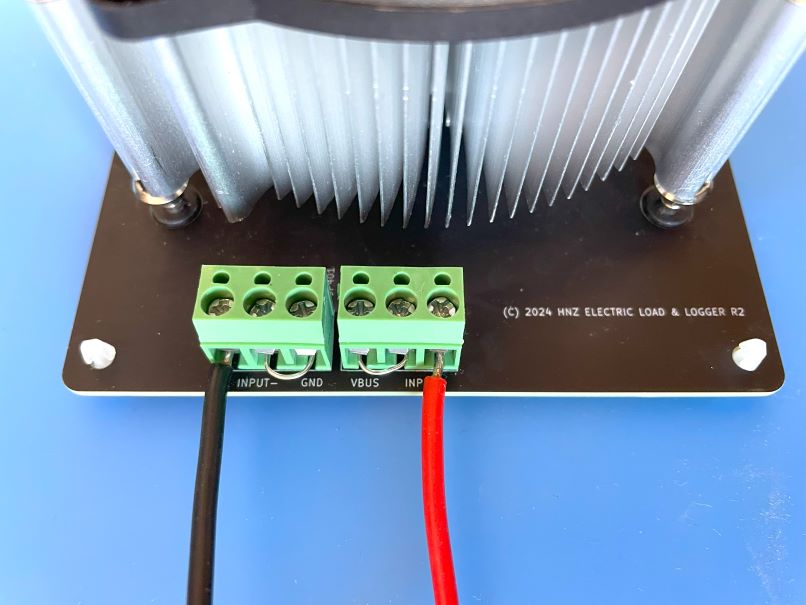

Electricload, from the project README
From the project README

Main components on the Electricload

LD1117S33TRCH224KSPX3819M5-LESP32-S3-WROOM-1-N16R8SSD1331_DISPLAYOPA187IDBVRINA228LM35-NEBTSB611ILT

Electricload bill of materials (BOM)

71 components, 35 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LD1117S33TR
U201
1
CH224K
U202
1
SPX3819M5-L
U203
1
ESP32-S3-WROOM-1-N16R8
U301
1
SSD1331_DISPLAY
U302
1
OPA187IDBVR
TSB611ILT
U401
1
INA228
U402
1
LM35-NEB
U403
1
TSB611ILT
U404
1
IRF7606TRPBF
IRF7606PBF
Q201
1
IRF530PBF
IRF530
Q401
1
2N7002K
Q501
1
SSM3J332R
Q502
1
USB4105-GF-A
J201
1
FingerTouchPad
J301
2
SCREW_TERMINAL_3P
Screw_Terminal_3P
J401, J402
1
WM4330
4PIN FANCTL
J501
1
732-435151014824
3.5x2.6 Tact SW
SW301
1
MBR3060FCT
D401
1
MH2029-601Y
FB201
Show 15 more
QtyPartRefs
11
0.1UF
0.1uF
C201, C202, C205, C301, C302, C404, C405, C408 +3
5
10UF
10uF
C203, C206, C208, C401, C403
3
1UF
1uF
C204, C402, C406
1
2.2UF
2.2uF
C207
1
4.7UF
4.7uF
C407
1
1000PF
1000pF
C409
12
10K
R201, R205, R206, R301, R302, R305, R402, R403 +4
2
311-1.00KHR
1k
R202, R501
1
YAG3629
75K 1%
R203
3
311-10.0KHR
10K 1%
R204, R401, R410
2
150R
R303, R304
3
311-1.00KHR
1K 1%
R405, R411, R412
1
311-2.00KHR
2K 1%
R406
2
100
R407, R504
2
10M
10m
R408, R409

Electricload design files

The KiCad project lives in the hnz1102/electricload repository on GitHub; these links point at the commit this page was built from.

Electricload: common questions

What microcontroller does the Electricload use?

The Electricload is built around the ESP32-S3-WROOM-1-N16R8, from the ESP32 family.

How big is the Electricload PCB?

The Electricload measures 185 × 98 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Electricload?

71 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Electricload design files?

From the hnz1102/electricload repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Electricload design in my own project?

The repository has no license, so all rights stay with hnz1102. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Electricload without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
