Ethernet to SPI adapter, Nucleo-64 shield

imihajlow·ethernet-to-spi·sch/shield/shield.kicad_pcb

Ethernet to SPI adapter, Nucleo-64 shield layout, top view — open source board by imihajlow

About the Ethernet to SPI adapter, Nucleo-64 shield

Ethernet to SPI adapter, Nucleo-64 shield is an open source PCB design by imihajlow, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 69 × 74 mm, with 48 components from 28 distinct parts.

Other key parts include the 74HC86, 74HC14, 75C1168, 74HC08 and 74HC32. By type, the board carries 20 capacitors, 12 resistors, 9 ICs, 3 transistors, 2 connectors and 1 jumper.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

An Ethernet to SPI converter using 7400-series ICs

The Nucleo64 shield schematic files are located in sch/shield/.

The firmware for stm32f401 is located in stm32eth-f401/.

The idea is to convert the Manchester-encoded 10BASE-T signal to SPI and use an STM32 MCU to parse it.

A 75C1168 chip is used to convert differential signals to 5V logic levels.

Then, edges are detected using a 74HC86 XOR.

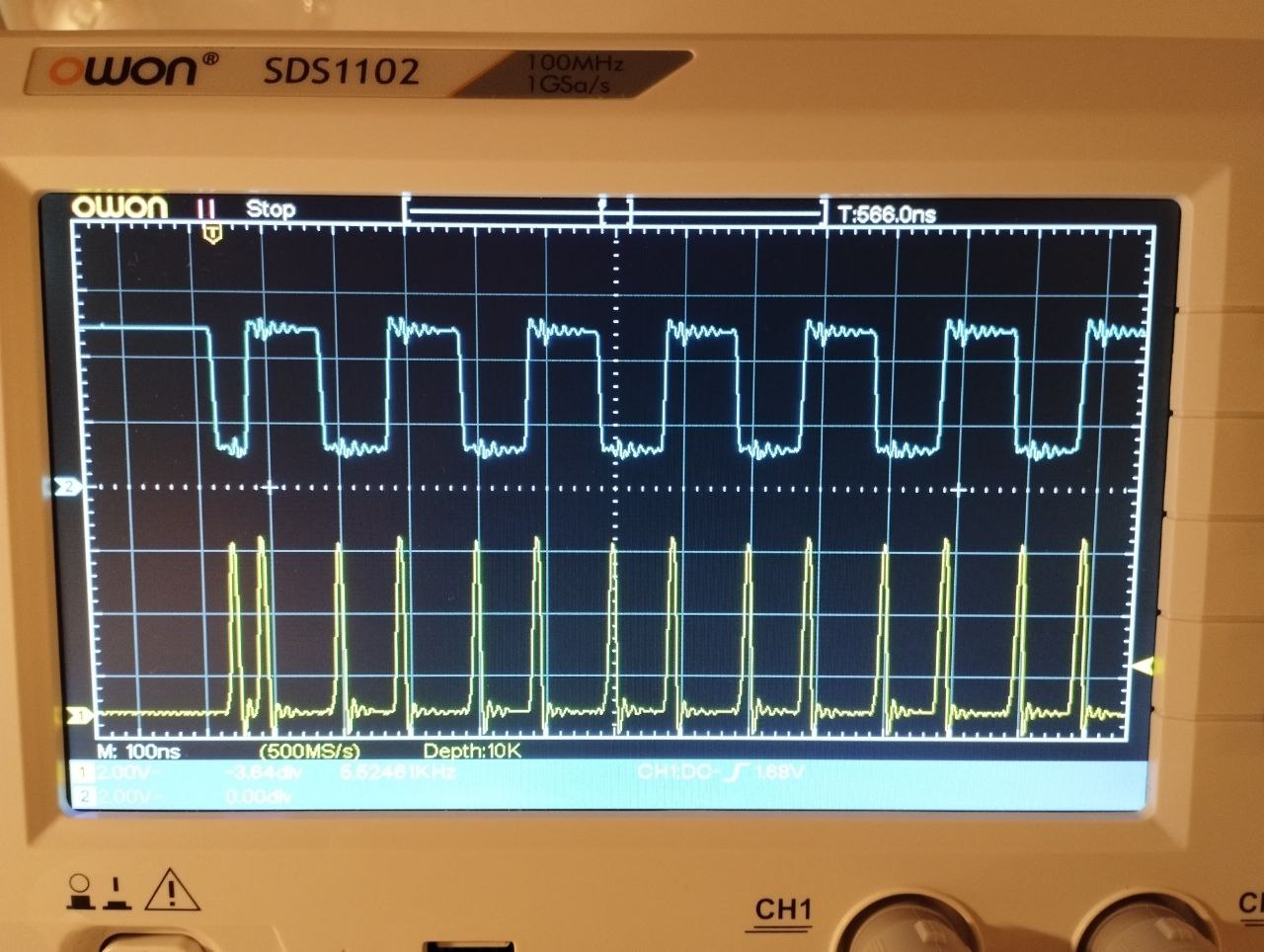

Blue is the input signal, yellow - detected edges.

Ethernet to SPI adapter, Nucleo-64 shield, from the project README
From the project README

Main components on the Ethernet to SPI adapter, Nucleo-64 shield
