About the Charge Controller PCB

Charge Controller is an open source ESP32 PCB design by jharvey, published on GitHub. It is a 2-layer board measuring 139.7 × 88.9 mm, with 157 components from 58 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the C2930869, B1212, AMS1117-5.0, AMS1117-3.3 and XL7005A. By type, the board carries 47 resistors, 34 connectors, 28 capacitors, 13 diodes, 12 ICs and 9 transistors.

It belongs with the power & battery and iot & wireless designs in this gallery.

From the project

MPPT hardware which uses FUGU firmware

Orginal Firmware project found here https://github.com/AngeloCasi/FUGU-ARDUINO-MPPT-FIRMWARE Oringal Hardware project found here https://drive.google.com/drive/folders/1Sd2jWAb-F8NAXlJ6PLdhcnPDQV0alD15?usp=sharing

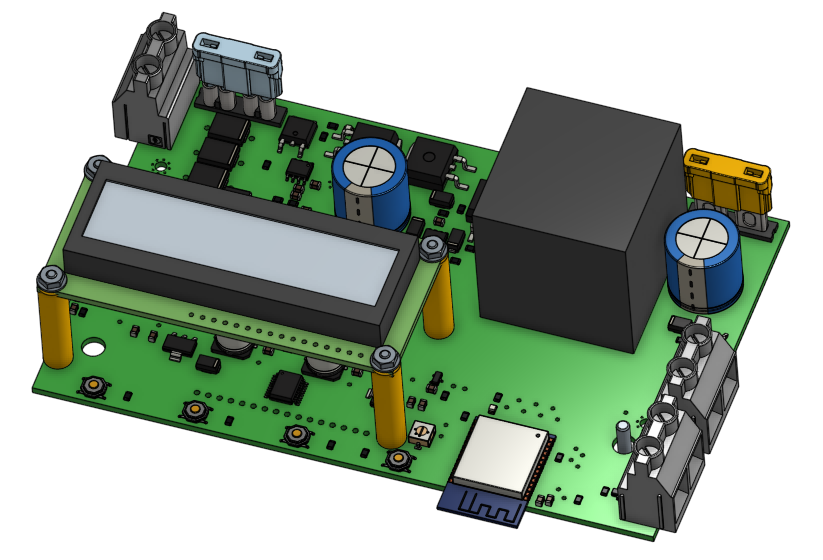

Charge Controller, from the project README
From the project README

Main components on the Charge Controller

Charge Controller bill of materials (BOM)

157 components, 58 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C2930869
Hall Amp Sense
U1
1
B1212
U2
1
AMS1117-5.0
U3
1
AMS1117-3.3
U4
2
XL7005A
U5, U6
1
IR2104
U7
1
ESP32-WROOM-32
U8
1
CH340C
U9
1
ADS1015
U10
1
NUP4202
U11
1
PCF8574
U12
3
CSD19505
Q1, Q2, Q3
2
SI2306
Si2306
Q4, Q9
2
2N3904
Q5, Q6
2
PMOS-100V-78A
Q7, Q8
1
C92145
SOLAR
J1
29
CONN_01X01_FEMALE
Conn_01x01_Female
J2, J3, J4, J5, J6, J7, J10, J11 +21
1
C92145
BATT
J8
1
C136001
USB_OTG
J9
1
C92145
FAN
J36
Show 38 more
QtyPartRefs
1
I2C_CON
J38
1
C83275
LCD
DS1
2
C2935871
Holder
H1, H2
1
10K
10k
RV1
1
C318884
RIGHT
SW1
1
C318884
LEFT
SW2
1
C318884
BACK
SW3
1
C318884
SELECT
SW4
2
LED
LED1, LED2
6
SS310
D1, D2, D3, D5, D6, D7
2
1N4007
D4, D8
2
C8062
D_Zener_Small
D9, D10
1
90V-34A
D11
2
90V-34A
120V-26A
D12, D13
1
64UH
64uH
L1
2
100UH
100uH
L2, L3
1
7443783533650
L11
11
100NF
100nf
C1, C3, C4, C11, C12, C13, C20, C23 +3
2
2.2UF
2.2uf
C2, C9
5
4.7UF
4.7uf
C5, C6, C21, C22, C24
2
470UF
470uf
C7, C8
1
10UF
10uf
C10
2
100UF
100uf
C14, C16
2
33NF
33nf
C15, C17
1
4.7UF
4.7uf
C18
2
470NF
470nf
C19, C28
1
200K
200k
R1
1
5.1K
5.1k
R2
1
3.3K
3.3k
R3
23
10K
10k
R4, R6, R7, R12, R13, R20, R21, R22 +15
6
1k
R5, R16, R19, R34, R41, R42
3
100K
100k
R8, R11, R40
2
100
R9, R10
4
15K
15k
R14, R15, R17, R18
2
47K
47k
R32, R33
1
10K_-TC
10k_-tc
R35
2
C21189
0R
R38, R39
1
330
R49

Charge Controller design files

The KiCad project lives in the jharvey/Charge_Controller repository on GitHub; these links point at the commit this page was built from.

Charge Controller: common questions

What microcontroller does the Charge Controller use?

The Charge Controller is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Charge Controller PCB?

The Charge Controller measures 139.7 × 88.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Charge Controller?

157 components, from 58 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Charge Controller design files?

From the jharvey/Charge_Controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Charge Controller design in my own project?

The repository has no license, so all rights stay with jharvey. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Charge Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
