Dongle eaLIVE

joaogabrielsantosD·Dongle-eaLIVE-PCB

Dongle eaLIVE PCB layout, top view — open source ESP32 board by joaogabrielsantosD

About the Dongle eaLIVE PCB

Dongle eaLIVE is an open source ESP32 PCB design by joaogabrielsantosD, published on GitHub. It is a 2-layer board measuring 45 × 55 mm, with 69 components from 34 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the MP1584EN, AMS1117, TJA1050, MCP2515-I_SO and CP2102N-Axx-xQFN28. By type, the board carries 23 capacitors, 19 resistors, 7 diodes, 6 ICs, 4 connectors and 3 transistors.

It belongs with the iot & wireless, rf & radio and sensors designs in this gallery.

From the project

PCB of the DongleEALIVE for reading data from the vehicle's CAN bus with telemetry via BLE, supporting GPS and accelerometer.

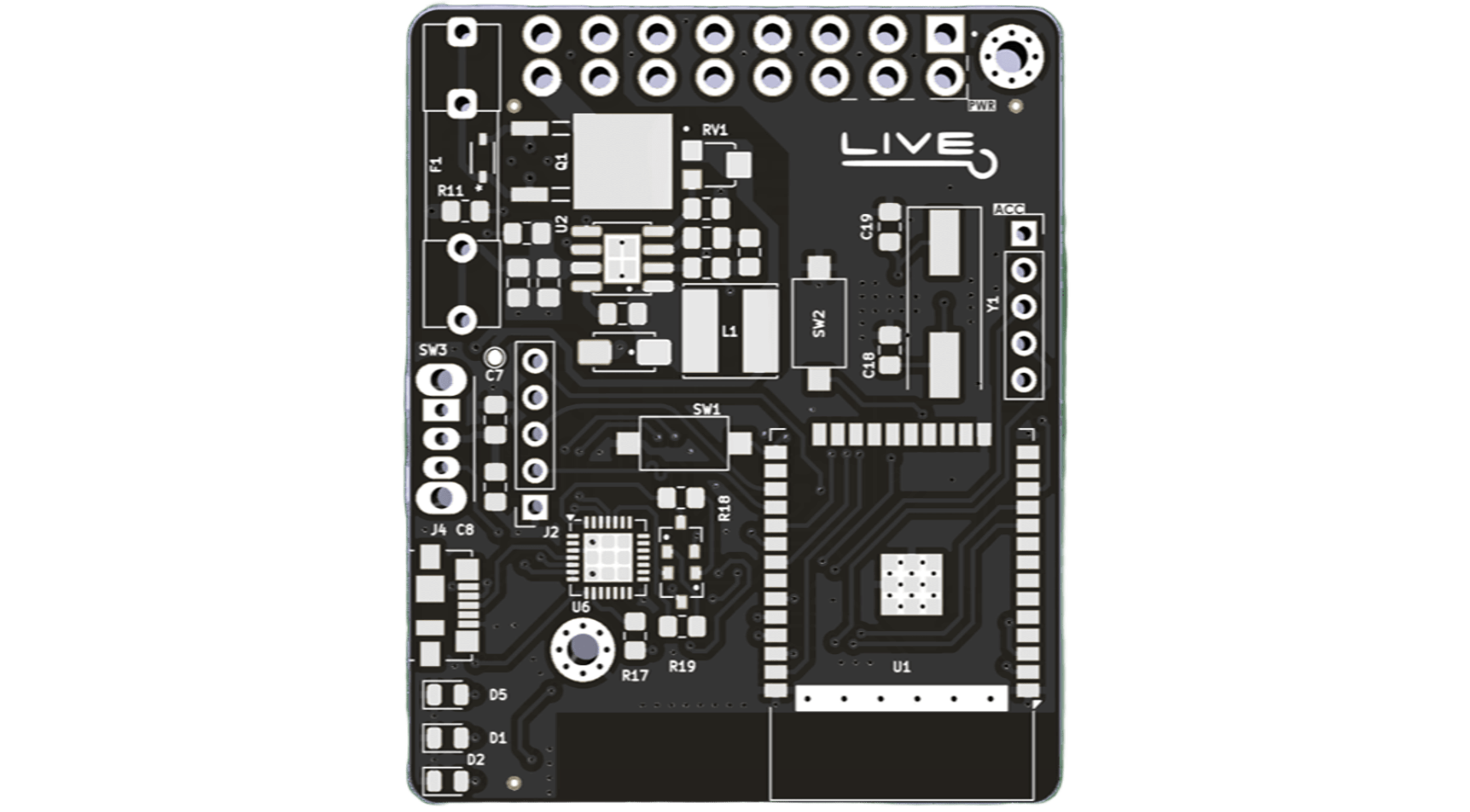

Dongle eaLIVE, from the project README
From the project README

Main components on the Dongle eaLIVE

ESP32-WROOM-32MP1584ENAMS1117TJA1050MCP2515-I_SOCP2102N-Axx-xQFN28

Dongle eaLIVE bill of materials (BOM)

69 components, 34 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
MP1584EN
U2
1
AMS1117
U3
1
TJA1050
U4
1
MCP2515-I_SO
U5
1
CP2102N-Axx-xQFN28
U6
1
IRF5305S
Q1
2
SS8050-G
Q2, Q3
1
Crystal
Y1
1
C-OBD-II-16M
J1
2
Conn_01x05_Socket
J2, J3
1
USB_B_Micro
J4
1
0.5A
F1
1
200kΩ
RV1
2
SW_Push
SW1, SW2
1
SW_SPDT_321
SW3
3
LED
D1, D2, D5
1
SS34
D3
1
MM3Z10V
D4
1
PESD1CAN
D6
Show 14 more
QtyPartRefs
1
BAT760-7
D7
1
4.7uH
L1
1
22uF
C1
9
10uF
C2, C4, C7, C9, C12, C13, C20, C21 +1
9
100nF
C3, C5, C6, C8, C10, C14, C15, C17 +1
1
100pF
C11
1
10uF
C16
2
22pF
C18, C19
5
10kΩ
R1, R2, R15, R18, R19
2
1k
R3, R4
4
120Ω
R5, R6, R14, R16
5
100kΩ
R7, R8, R9, R11, R12
2
1kΩ
R10, R17
1
8.2kΩ
R13

Dongle eaLIVE design files

The KiCad project lives in the joaogabrielsantosD/Dongle-eaLIVE-PCB repository on GitHub; these links point at the commit this page was built from.

Dongle eaLIVE: common questions

What microcontroller does the Dongle eaLIVE use?

The Dongle eaLIVE is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Dongle eaLIVE PCB?

The Dongle eaLIVE measures 45 × 55 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Dongle eaLIVE?

69 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dongle eaLIVE design files?

From the joaogabrielsantosD/Dongle-eaLIVE-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Dongle eaLIVE design in my own project?

The repository has no license, so all rights stay with joaogabrielsantosD. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Dongle eaLIVE without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
