KRUPS Flight Computer
krups·RockSatX-GHOST-Hardware·Capsule/KiCadProjectFiles/KRUPS-Capsule.kicad_pcb
About the KRUPS Flight Computer PCB

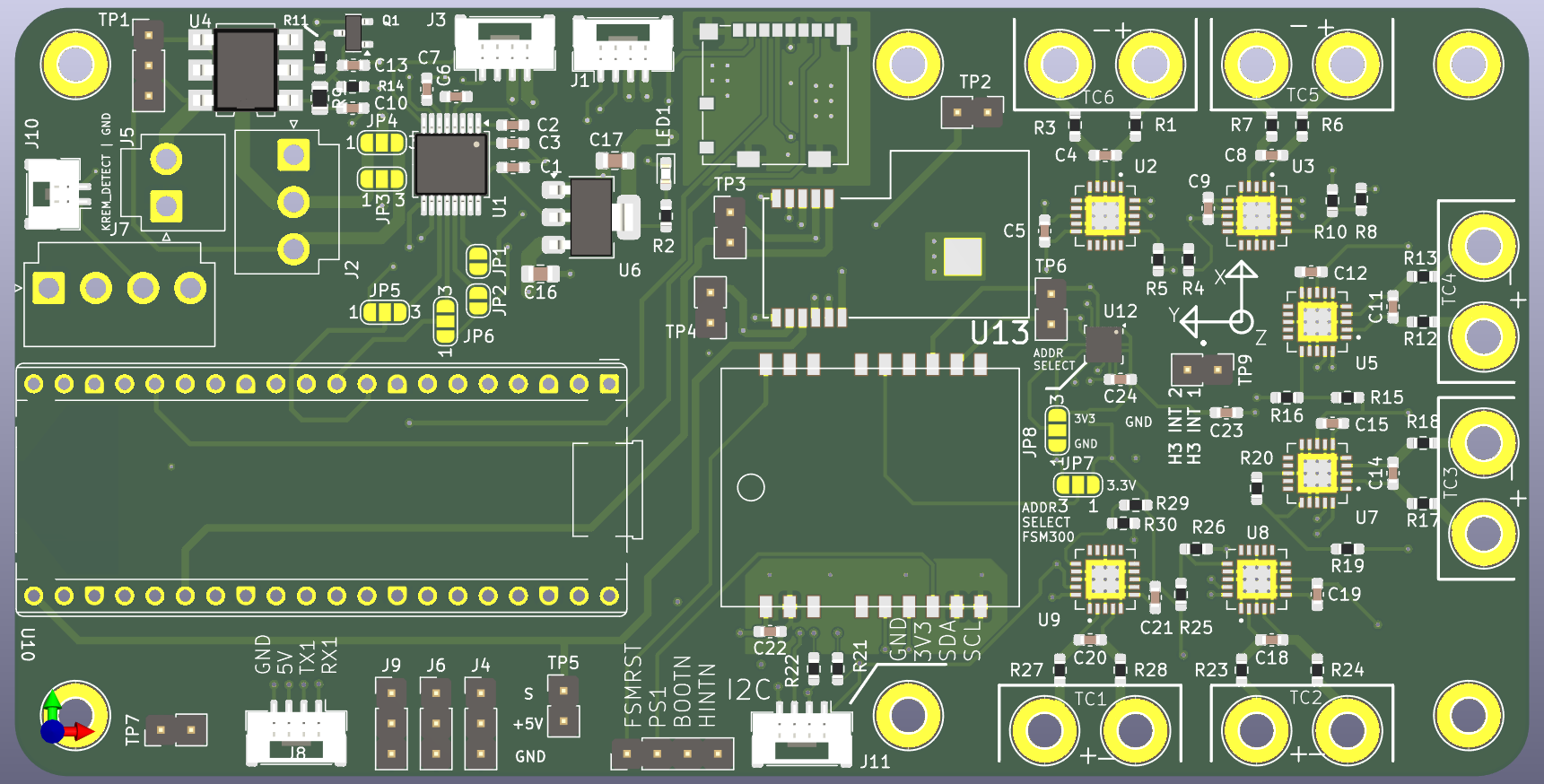

KRUPS Flight Computer is an open source Raspberry Pi PCB design by krups, published on GitHub. It is a 6-layer board measuring 127 × 64.4 mm, with 108 components from 49 distinct parts.
Its main chip is the Pico_2_W, from the Raspberry Pi family. Other key parts include the BME280, PICO_2_W, TSR_2-2450, TPS61023 and LR62XE. By type, the board carries 30 resistors, 24 capacitors, 13 ICs, 12 connectors, 9 test points and 1 transistor.
It belongs with the sensors and rf & radio designs in this gallery.
From the project
Hardware files for the 2025 RockSat-X GHOST mission

Main components on the KRUPS Flight Computer
KRUPS Flight Computer bill of materials (BOM)
108 components, 49 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BME280 UM3232EEAE | SSOP-16_5.3x6.2mm_P0.65mm | U1 |
| 1 | PICO_2_W MCP96L00T-E_MX | QFN65P500X500X100-21N_MCP96L00T-E_MX | U2 |
| 1 | TSR_2-2450 MCP96L00T-E_MX | QFN65P500X500X100-21N_MCP96L00T-E_MX | U3 |
| 1 | TPS61023 AQV252G3A | SMDIP-6_W7.62mm | U4 |
| 1 | LR62XE MCP96L00T-E_MX | QFN65P500X500X100-21N_MCP96L00T-E_MX | U5 |
| 1 | TPS2117 TLV1117LV33DCYR | SOT-223-3_TabPin2 | U6 |
| 1 | BNO086 MCP96L00T-E_MX | QFN65P500X500X100-21N_MCP96L00T-E_MX | U7 |
| 1 | AZ1117-3.3 MCP96L00T-E_MX | QFN65P500X500X100-21N_MCP96L00T-E_MX | U8 |
| 1 | MCP96L00T-E_MX | QFN65P500X500X100-21N_MCP96L00T-E_MX | U9 |
| 1 | Pico_2_W | RaspberryPi_Pico_Common_THT | U10 |
| 1 | FSM300 | FSM300_FOOTPRINT | U11 |
| 1 | H3LIS100DLTR | LGA-16_3x3mm_P0.5mm_LayoutBorder3x5y | U12 |
| 1 | LR62XE | LR62XE | U13 |
| 1 | IRF7410 2N7002K | SOT-23 | Q1 |
| 1 | B2P-VH-FB-B JST_GH_BM04B | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J1 |
| 1 | B2PS-VH JST_VH_B4P-VH-B | JST_VH_B3P-VH-B_1x03_P3.96mm_Vertical | J2 |
| 1 | JST_GH_BM04B | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J3 |
| 3 | ~ | PinHeader_1x03_P2.54mm_Vertical | J4, J6, J9 |
| 1 | JST_VH_B2P | JST_VH_B2P-VH-B_1x02_P3.96mm_Vertical | J5 |
| 1 | Conn_01x04 | JST_VH_B4P-VH-B_1x04_P3.96mm_Vertical | J7 |
Show 29 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | JST_GH_BM04B-GHS | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J8 |
| 1 | ~ | JST_GH_BM02B-GHS-TBT_1x02-1MP_P1.25mm_Vertical | J10 |
| 1 | BM04B-JST-GH | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J11 |
| 1 | Micro_SD_Card_Det2 | microSD_HC_Molex_104031-0811 | J12 |
| 18 | MountingHole_Pad | 2,8-PAD | H1, H2, H3, H4, H5, H6, H7, H8 +10 |
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | TP1 |
| 6 | TEST POINT | PinHeader_1x02_P2.54mm_Vertical | TP2, TP3, TP4, TP5, TP6, TP7 |
| 1 | ~ | PinHeader_1x04_P2.54mm_Vertical | TP8 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | TP9 |
| 1 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | LED1 |
| 5 | 0.1U 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C7, C8, C9 |
| 3 | 10U 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C6, C10 |
| 3 | 22U 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C5, C11 |
| 11 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C12, C13, C14, C15, C18, C19, C20, C21 +3 |
| 2 | 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C16, C17 |
| 1 | 100K 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 1 | 73.2K 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 1 | 10K 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3 |
| 6 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4, R8, R15, R19, R25, R29 |
| 1 | 100K 4.3k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5 |
| 2 | 3.9K 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6, R7 |
| 1 | 500k | R_0805_2012Metric | R9 |
| 1 | 2.2k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10 |
| 1 | 1.5k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R11 |
| 8 | 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R12, R13, R17, R18, R23, R24, R27, R28 |
| 3 | 1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R14, R21, R22 |
| 1 | 4.3k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R16 |
| 2 | 7.5k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R20, R30 |
| 1 | 13k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R26 |
KRUPS Flight Computer design files
The KiCad project lives in the krups/RockSatX-GHOST-Hardware repository on GitHub; these links point at the commit this page was built from.
KRUPS Flight Computer: common questions
What microcontroller does the KRUPS Flight Computer use?
The KRUPS Flight Computer is built around the Pico_2_W, from the Raspberry Pi family.
How big is the KRUPS Flight Computer PCB?
The KRUPS Flight Computer measures 127 × 64.4 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the KRUPS Flight Computer?
108 components, from 49 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the KRUPS Flight Computer design files?
From the krups/RockSatX-GHOST-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the KRUPS Flight Computer design in my own project?
The repository has no license, so all rights stay with krups. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the KRUPS Flight Computer without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
