KRUPS-FemtoSat
About the KRUPS-FemtoSat PCB

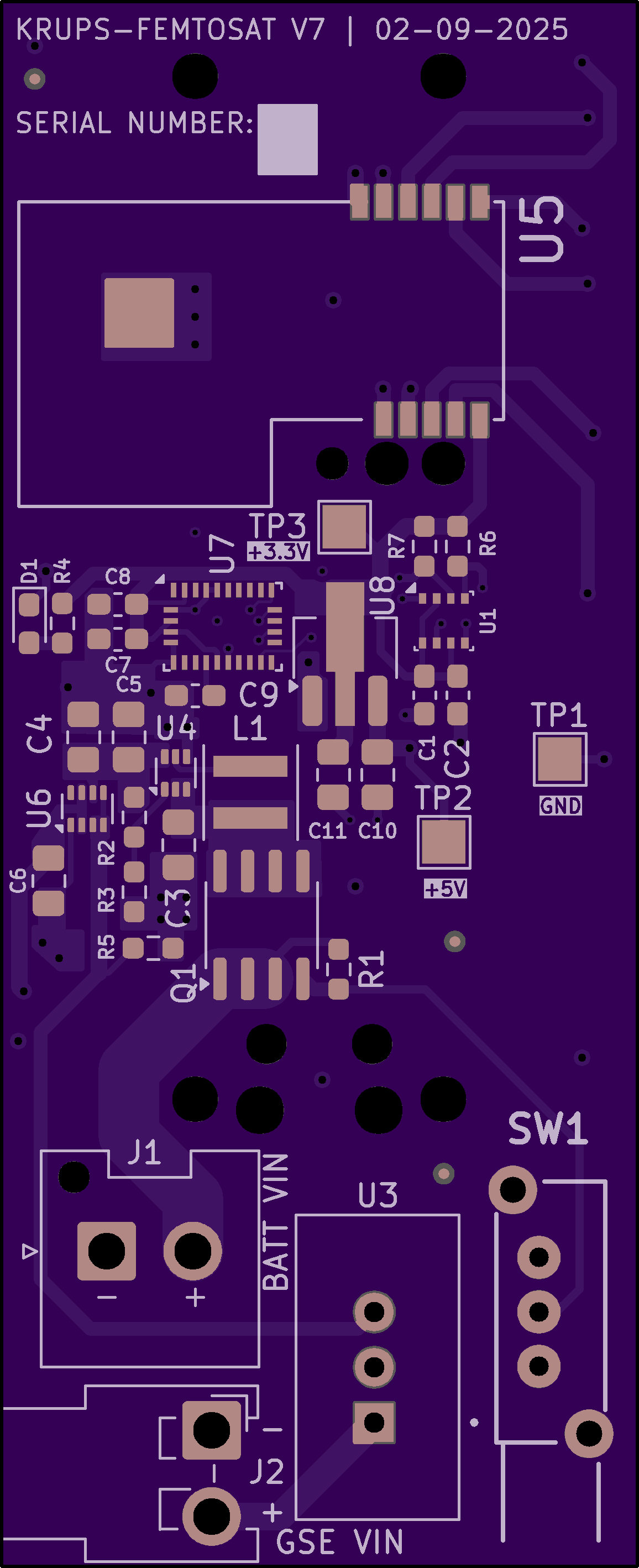

KRUPS-FemtoSat is an open source Raspberry Pi PCB design by krups, published on GitHub. It is a 4-layer board measuring 29.2 × 71.9 mm, with 32 components from 22 distinct parts.
Its main chip is the PICO_2_W, from the Raspberry Pi family. Other key parts include the BME280, TSR_2-2450, TPS61023, LR62XE and TPS2117. By type, the board carries 11 capacitors, 8 ICs, 7 resistors, 2 connectors, 1 transistor and 1 switch.
It belongs with the rf & radio and sensors designs in this gallery.
From the project
Hardware files for the 2025 RockSat-X GHOST mission
Main components on the KRUPS-FemtoSat
KRUPS-FemtoSat bill of materials (BOM)
32 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BME280 | Bosch_LGA-8_2.5x2.5mm_P0.65mm_ClockwisePinNumbering | U1 |
| 1 | PICO_2_W Pico_2_W | RaspberryPi_Pico2_W_SMD | U2 |
| 1 | TSR_2-2450 | CONV_TSR_2-2450 | U3 |
| 1 | TPS61023 | SOT-563 | U4 |
| 1 | LR62XE | LR62XE | U5 |
| 1 | TPS2117 | SOT-583-8 | U6 |
| 1 | BNO086 | LGA-28_5.2x3.8mm_P0.5mm | U7 |
| 1 | AZ1117-3.3 | SOT-89-3_Handsoldering | U8 |
| 1 | IRF7410 | SOIC-8_3.9x4.9mm_P1.27mm | Q1 |
| 1 | B2P-VH-FB-B | JST_VH_B2P-VH-FB-B_1x02_P3.96mm_Vertical | J1 |
| 1 | B2PS-VH | JST_VH_S2P-VH_1x02_P3.96mm_Horizontal | J2 |
| 1 | LC1258OANP Enclosure Detector | LC1258OANP | SW1 |
| 1 | LED | D_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | 1u | L_Coilcraft_XxL4030 | L1 |
| 5 | 0.1U 0.1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C7, C8, C9 |
| 3 | 10U 10u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3, C6, C10 |
| 3 | 22U 22u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C5, C11 |
| 2 | 100K 100k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R5 |
| 1 | 73.2K 73.2k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 1 | 10K 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 68 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4 |
| 2 | 3.9K 3.9k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6, R7 |
KRUPS-FemtoSat design files
The KiCad project lives in the krups/RockSatX-GHOST-Hardware repository on GitHub; these links point at the commit this page was built from.
KRUPS-FemtoSat: common questions
What microcontroller does the KRUPS-FemtoSat use?
The KRUPS-FemtoSat is built around the PICO_2_W, from the Raspberry Pi family.
How big is the KRUPS-FemtoSat PCB?
The KRUPS-FemtoSat measures 29.2 × 71.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the KRUPS-FemtoSat?
32 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the KRUPS-FemtoSat design files?
From the krups/RockSatX-GHOST-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the KRUPS-FemtoSat design in my own project?
The repository has no license, so all rights stay with krups. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the KRUPS-FemtoSat without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
