KRUPS-RocketStation

krups·RockSatX-GHOST-Hardware·RocketStation/KiCadProjectFiles/KRUPS-RocketStation.kicad_pcb

KRUPS-RocketStation PCB layout, top view — open source Raspberry Pi board by krups

About the KRUPS-RocketStation PCB

KRUPS-RocketStation is an open source Raspberry Pi PCB design by krups, published on GitHub. It is a 4-layer board measuring 87.6 × 56 mm, with 34 components from 26 distinct parts.

Its main chip is the TPS2117, from the Raspberry Pi family. Other key parts include the BME280, PICO_2_W, TSR_2-2450, TPS61023 and LR62XE. By type, the board carries 16 capacitors, 7 ICs, 5 connectors, 5 resistors and 1 diode.

It belongs with the sensors and rf & radio designs in this gallery.

From the project

Hardware files for the 2025 RockSat-X GHOST mission

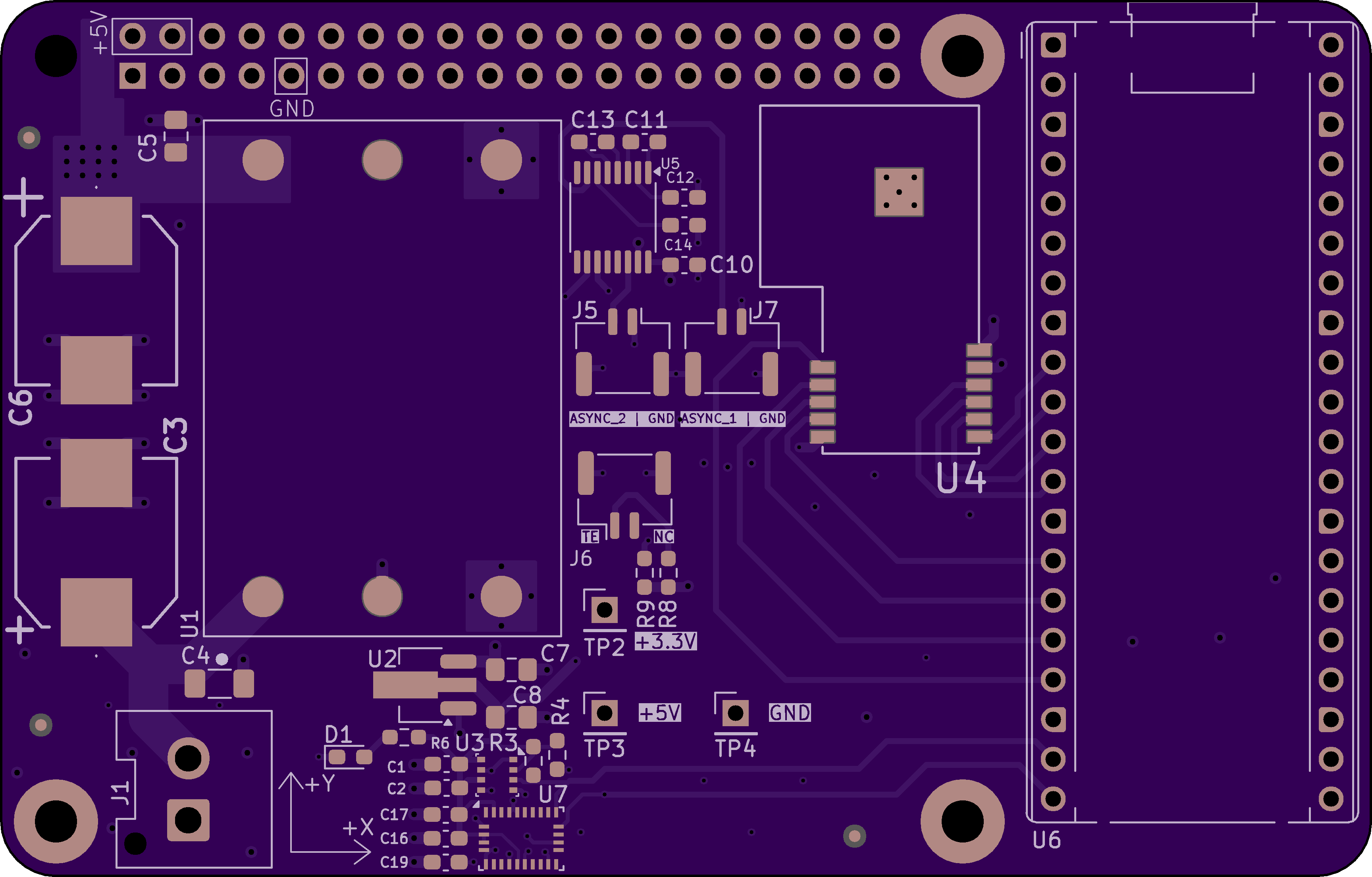

KRUPS-RocketStation, from the project README
From the project README

Main components on the KRUPS-RocketStation

BME280PICO_2_WTSR_2-2450TPS61023LR62XETPS2117BNO086

KRUPS-RocketStation bill of materials (BOM)

34 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BME280
PKU5511ESI
U1
1
PICO_2_W
AZ1117-3.3
U2
1
TSR_2-2450
BME280
U3
1
TPS61023
LR62XE
U4
1
LR62XE
SP3232
U5
1
TPS2117
Pico_2_W
U6
1
BNO086
U7
1
B2P-VH-FB-B
J1
1
RPi5_Header
J3
3
BM02B-GHS-TBT
J5, J6, J7
1
LED
D1
2
0.1U
0.1u
C1, C2
1
10U
100u
C3
1
22U
2.2u
C4
1
22U
22u
C5
1
10U
470u
C6
1
0.1U
10u
C7
1
0.1U
22u
C8
1
10U
0.1u
C10
1
22U
0.1u
C11
Show 6 more
QtyPartRefs
6
0.1u
C12, C13, C14, C16, C17, C19
1
10K
3.9k
R3
1
3.9k
R4
1
3.9K
68
R6
1
20k
R8
1
2k
R9

KRUPS-RocketStation design files

The KiCad project lives in the krups/RockSatX-GHOST-Hardware repository on GitHub; these links point at the commit this page was built from.

KRUPS-RocketStation: common questions

What microcontroller does the KRUPS-RocketStation use?

The KRUPS-RocketStation is built around the TPS2117, from the Raspberry Pi family.

How big is the KRUPS-RocketStation PCB?

The KRUPS-RocketStation measures 87.6 × 56 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the KRUPS-RocketStation?

34 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KRUPS-RocketStation design files?

From the krups/RockSatX-GHOST-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KRUPS-RocketStation design in my own project?

The repository has no license, so all rights stay with krups. Use it as a reference, and ask the author before reusing the design.
