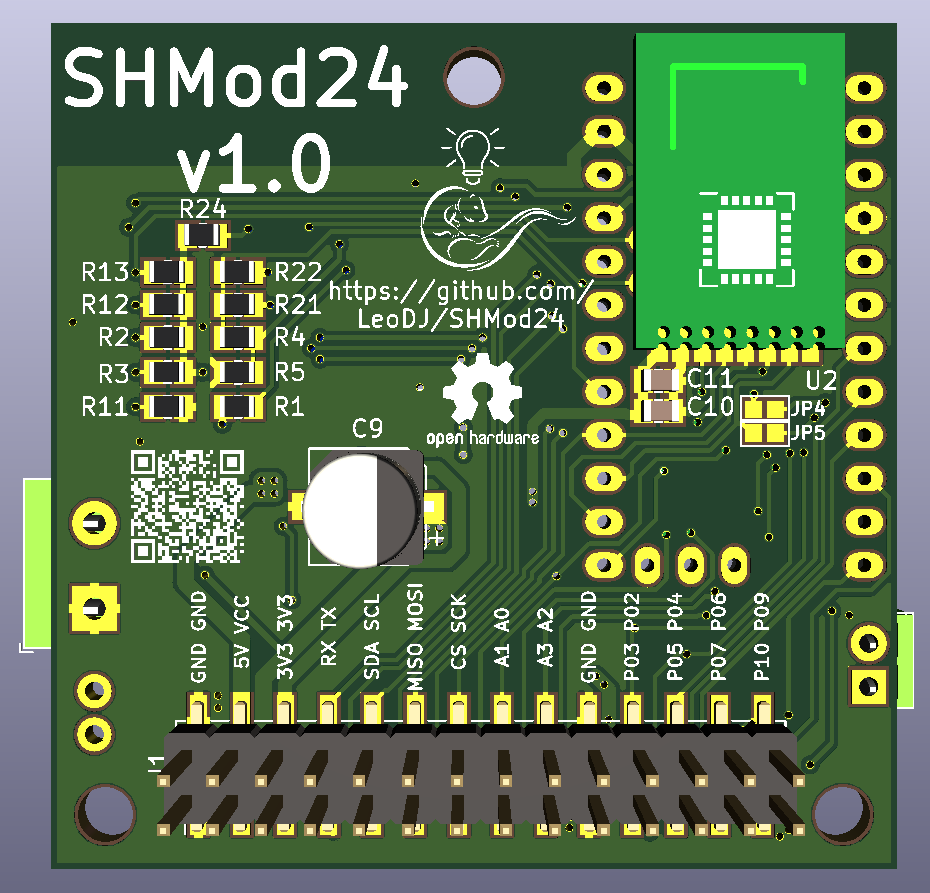

SHMod24 PCB layout, top view — open source ESP8266 board by LeoDJ

About the SHMod24 PCB

SHMod24 is an open source ESP8266 PCB design by LeoDJ, published on GitHub under the MIT license. It is a 2-layer board measuring 49.5 × 49.5 mm, with 64 components from 40 distinct parts.

Its main chip is the ESP-12, from the ESP8266 family. Other key parts include the ArduinoProMini, NRF24L01, AP2112K-3.3, TP4056 and DW01A. By type, the board carries 24 resistors, 11 capacitors, 9 ICs, 6 transistors, 5 jumpers and 3 connectors.

It belongs with the iot & wireless, power & battery and rf & radio designs in this gallery.

From the project

Smart Home Module NRF24 // All-in-one microcontroller baseboard

This PCB is a universal microcontroller board with many optionally placable components. It aims to be an universal base-board for many projects especially around home automation.

*) GPIO can be connected to this pin by bridging the mentioned jumper

ATTENTION: When the MAX3485 is mounted the Arduino doesn't want to be programmed most of the time. So make sure to pull pin P3 to 3.3V. ## BOM There are multiple different module groups that can be populated.

SHMod24, from the project README
From the project README

Main components on the SHMod24

ArduinoProMiniESP-12NRF24L01AP2112K-3.3TP4056DW01ALMR14010AMAX3485

SHMod24 bill of materials (BOM)

64 components, 40 distinct parts.

QtyPartRefs
1
ArduinoProMini
IC1
1
ESP-12
U1
2
NRF24L01
U2, U7
1
AP2112K-3.3
U3
1
TP4056
U4
1
DW01A
U5
1
LMR14010A
U6
1
MAX3485
U8
1
FS8205A
Q1
5
AO3400A
Q2, Q3, Q4, Q5, Q6
1
Conn_02x14_Odd_Even
J1
1
12V
J5
1
Screw_Terminal_01x02
J9
1
Source Select
JP1
1
VoltSense
JP2
1
Jumper_DeepSleep
JP3
2
ESP_MOSFET
JP4, JP5
1
SYM_Arrow_Tiny
SYM1
1
SYM_Arrow_Tiny
SYM2
1
D_Schottky 40V
D1
Show 20 more
QtyPartRefs
2
LED
D2, D3
1
22µH
L1
2
1µF
C1, C2
3
100n
C3, C5, C11
2
10µF
C4, C10
1
100nF
C6
1
2.2µF 50V
C7
1
22µF
C8
1
100µF
C9
8
10k
R1, R2, R3, R10, R11, R12, R13, R24
1
220k
R4
1
100k
R5
1
2k2
R6
1
100
R7
3
1k
R8, R14, R23
1
56k
R9
1
120
R15
5
10k
R16, R17, R18, R19, R20
1
47k/220k
R21
1
22k
R22
