BATDATUNIT01
About the BATDATUNIT01 PCB
BATDATUNIT01 is an open source AVR/Arduino PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 136.2 × 85.9 mm, with 206 components from 74 distinct parts.
Its main chip is the ATMEGA1284P-AU, from the AVR/Arduino family. Other key parts include the MAX14502AETL+, USBLC6-2SC6, FT260Q-T, PCA9541ABS/03,118 and AT24CS64-SSHM. By type, the board carries 75 resistors, 52 capacitors, 18 ICs, 16 diodes, 11 jumpers and 7 transistors.
It belongs with the power & battery and sensors designs in this gallery.
From the project

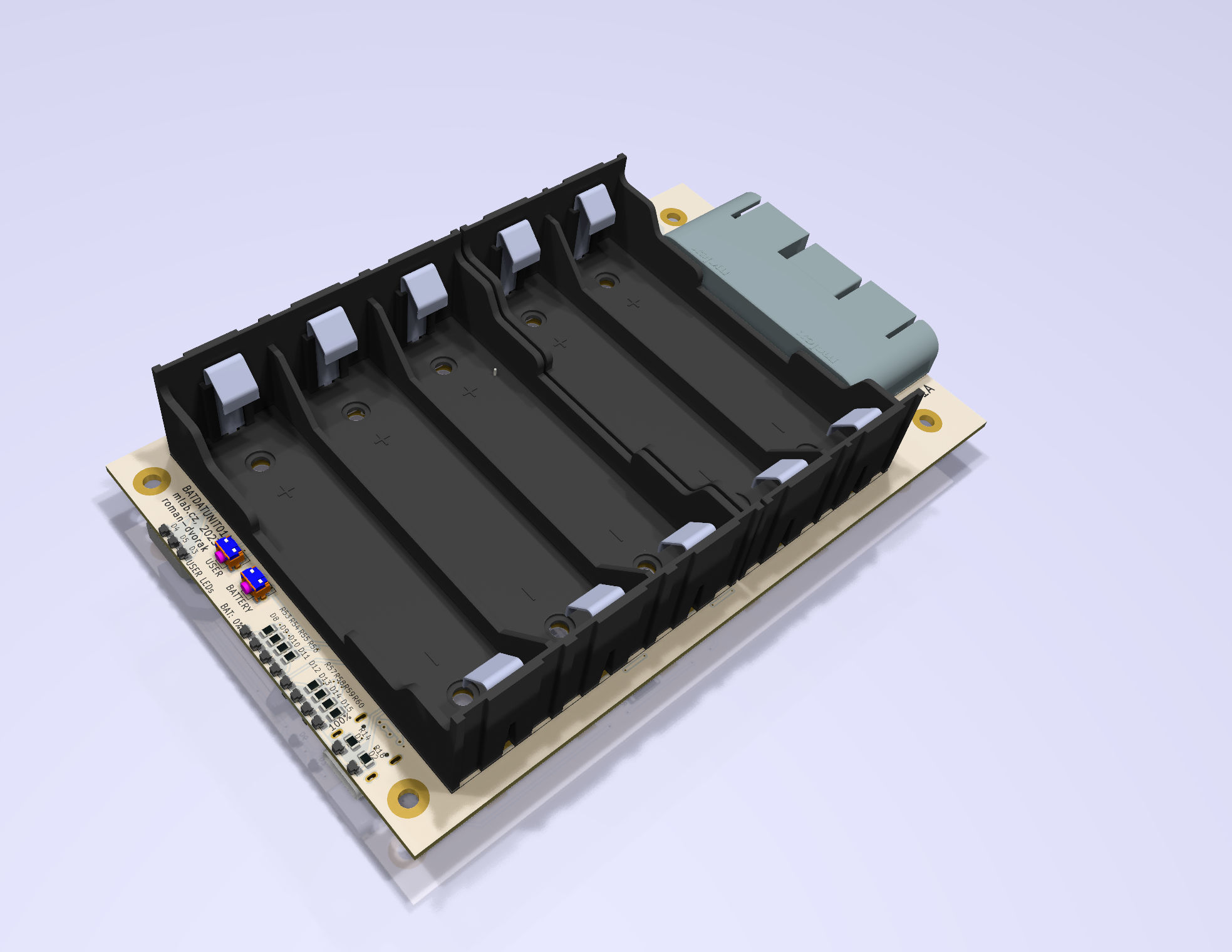

Multiple parallel Li-ion 18650 battery cell module with BMS and data storage with MCU control.
The BATDATUNIT01 is power and data storage module incorporating an ATmea1284p microcontroller paired with a five 18650 Li-ion safely rechargable accumulator cells. It is a reliable power source for extended durations, making it an integral component in various detectors or measuring systems.
- Microcontroller: ATmega1284p provides robust processing capabilities to manage complex tasks efficiently. - Battery Pack: A Set of up to five Li-ion batteries offers substantial power, facilitating long-term operations without frequent recharging. - USB-C Charging: Enables hassle-free charging with a…
Main components on the BATDATUNIT01
BATDATUNIT01 bill of materials (BOM)
206 components, 74 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX14502AETL+ | QFN40P500X500X80-41N | U1 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U2 |
| 1 | FT260Q-T | QFN-28-1EP_5x5mm_P0.5mm_EP3.35x3.35mm | U3 |
| 1 | PCA9541ABS/03,118 PCA9541ABS/01 | QFN-16-1EP_4x4mm_P0.65mm_EP2.15x2.15mm | U4 |
| 1 | AT24CS64-SSHM | SOIC-8_3.9x4.9mm_P1.27mm | U5 |
| 1 | SHT31-DIS | Sensirion_DFN-8-1EP_2.5x2.5mm_P0.5mm_EP1.1x1.7mm | U6 |
| 1 | TMUX1574DYYR | SOT-23-16 THIN | U7 |
| 1 | ATMEGA1284P-AU | TQFP-44_10x10mm_P0.8mm | U8 |
| 1 | MS561101BA03-50 | LGA-8_3x5mm_P1.25mm | U9 |
| 1 | PCF85263A | TSSOP-10_3x3mm_P0.5mm | U10 |
| 1 | TCA4307 | VSSOP-8_3.0x3.0mm_P0.65mm | U11 |
| 1 | BQ34Z100 | TSSOP-14_4.4x5mm_Pitch0.65mm | U12 |
| 1 | BQ25628E | Texas_S-WQFN-HR-18 | U13 |
| 1 | SN74HC164P | TSSOP-14_4.4x5mm_P0.65mm | U14 |
| 3 | TPS631000DRLR | SOT-583-8 | U15, U16, U17 |
| 1 | TPS22965-Q1 | WSON-8-1EP_2x2mm_P0.5mm_EP0.9x1.6mm | U18 |
| 4 | BC817-25 | SOT-23-3 | Q1, Q2, Q3, Q4 |
| 2 | BC807-25 | SOT-23-3 | Q5, Q6 |
| 1 | BSS83P | SOT-23 | Q7 |
| 1 | 19.2 MHz | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y1 |
Show 54 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 8 MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | ABS07-120-32.768KHZ-T | ABS07 | Y3 |
| 1 | USB4105-GF-A USBC_USB4105-GF-A | USBC GCT_USB4105-GF-A | J1 |
| 1 | SD_CARD-FPS009-4200-0 SD_Card-FPS009-4200-0 | FPS009-4200-0 | J2 |
| 1 | HEADER_2X03 HEADER_2x03 | SMD_2x03 | J3 |
| 1 | 46436-9327 | MOLEX_46436-9327 | J4 |
| 1 | BATT | BAT_BK-18650-PC4 | BT1 |
| 1 | BATT | BAT_BK-18650-PC6 | BT2 |
| 1 | CR2032 | BatteryHolder_Keystone_1060_1x2032 | BT3 |
| 1 | LET9032ES-03L | MagneticBuzzer_LET9032ES-03L-2.7-16-R | BZ1 |
| 5 | Fuse | Fuseholder_Littelfuse_Nano2_154x | F1, F2, F3, F4, F5 |
| 2 | Jumper_3_Bridged12 | SolderJumper-3_P1.3mm_Bridged2Bar12_RoundedPad1.0x1.5mm | JP1, JP5 |
| 1 | SolderJumper_3_Bridged123 | SolderJumper-3_P1.3mm_Bridged12_RoundedPad1.0x1.5mm | JP2 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP3 |
| 7 | Jumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP6, JP7, JP8, JP9, JP10, JP11, JP12 |
| 2 | SKRTLAE010 | SKRT | SW1, SW3 |
| 2 | KMT031 | KMT031 NGJ LHS C&K | SW2, SW4 |
| 2 | 10k NTC | R_0805_2012Metric | TH1, TH2 |
| 4 | RED | SMD_LED_RIGHT_KINGBRIGHT_1605 | D1, D5, D9, D10 |
| 7 | GREEN | SMD_LED_RIGHT_KINGBRIGHT_1605 | D2, D3, D8, D13, D14, D15, D16 |
| 4 | ORANGE | SMD_LED_RIGHT_KINGBRIGHT_1605 | D4, D7, D11, D12 |
| 1 | BAS16W | SOT-323_SC-70 | D6 |
| 4 | 1uH - DFE252012P-1R0M=P2 | L_1008_2520Metric | L1, L2, L3, L4 |
| 1 | 100UH 100uH | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L5 |
| 23 | 100n | C_0805_2012Metric | C1, C2, C3, C4, C6, C10, C13, C15 +15 |
| 1 | C0805 1u 1n | C_0805_2012Metric | C5 |
| 3 | 4u7 | C_0805_2012Metric | C7, C12, C33 |
| 1 | C0805 1u 100n | C_0805_2012Metric | C8 |
| 2 | 15p | C_0805_2012Metric | C9, C14 |
| 7 | 10u | C_0805_2012Metric | C11, C22, C28, C42, C43, C44, C47 |
| 4 | 1u | C_0805_2012Metric | C19, C24, C31, C45 |
| 5 | 22u | C_0805_2012Metric | C21, C32, C36, C37, C38 |
| 1 | 47N 47n | C_0805_2012Metric | C27 |
| 1 | 3N3 3n3 | C_0805_2012Metric | C34 |
| 3 | 47u | C_0805_2012Metric | C39, C40, C41 |
| 1 | 1n | C_0805_2012Metric | C46 |
| 1 | 6.19K 6.19k | R_0805_2012Metric | R1 |
| 5 | 5k1 | R_0805_2012Metric | R2, R4, R5, R29, R57 |
| 18 | 10k | R_0805_2012Metric | R3, R18, R21, R23, R24, R25, R28, R30 +10 |
| 11 | 100R | R_0805_2012Metric | R6, R7, R8, R9, R10, R11, R38, R41 +3 |
| 1 | 68K 68k | R_0805_2012Metric | R13 |
| 1 | 25K5 25k5 | R_0805_2012Metric | R14 |
| 9 | 1k | R_0805_2012Metric | R15, R17, R19, R20, R31, R32, R48, R49 +1 |
| 9 | 270R | R_0805_2012Metric | R16, R27, R35, R50, R54, R62, R63, R64 +1 |
| 7 | 68R | R_0805_2012Metric | R22, R26, R51, R66, R67, R68, R69 |
| 2 | 33R | R_0805_2012Metric | R33, R34 |
| 1 | 270K 270k | R_0805_2012Metric | R43 |
| 1 | 510R | R_0805_2012Metric | R53 |
| 1 | 2K4 2k4 | R_0805_2012Metric | R56 |
| 1 | 33K 33k | R_0805_2012Metric | R58 |
| 1 | 0R01 75PPM | R_2512_6332Metric | R61 |
| 2 | 511k | R_0805_2012Metric | R75, R77 |
| 3 | 91k | R_0805_2012Metric | R76, R78, R80 |
| 1 | 806K 806k | R_0805_2012Metric | R79 |
BATDATUNIT01 design files
The KiCad project lives in the mlab-modules/BATDATUNIT01 repository on GitHub; these links point at the commit this page was built from.
BATDATUNIT01: common questions
What microcontroller does the BATDATUNIT01 use?
The BATDATUNIT01 is built around the ATMEGA1284P-AU, from the AVR/Arduino family.
How big is the BATDATUNIT01 PCB?
The BATDATUNIT01 measures 136.2 × 85.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BATDATUNIT01?
206 components, from 74 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BATDATUNIT01 design files?
From the mlab-modules/BATDATUNIT01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BATDATUNIT01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
Can I test firmware for the BATDATUNIT01 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
