TEC2 PCB layout, top view — open source AVR/Arduino board by Oerdna
Simulate this board

About the TEC2 PCB

TEC2 is an open source AVR/Arduino PCB design by Oerdna, published on GitHub under the AGPL-3.0 license. It is a 4-layer board measuring 100 × 100 mm, with 108 components from 49 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the TPS562200, MAX31865xTP, IR2104, ADS1115IDGS and TS5A3166DBVR. By type, the board carries 31 resistors, 29 capacitors, 16 diodes, 13 ICs, 9 connectors and 5 transistors.

It belongs with the test & measurement designs in this gallery.

From the project

Redesigned PCB for simultaneous Peltier control and surface resistance measurement

More details about the device can be understood from the schematic drawing here. The notes are in Russian.

The controller for the complex is STM32L432KC Nucleo.

In this case are studing the I - V characteristic of an element depending on the temperature of the sample. It is important to understand the I – V characteristic near the metal-insulator phase transition (MIT), which is about 68 degrees Celsius. You must understand that the ultimate goal is to stabilize the temperature to a specific value. More about the TEC control [2]

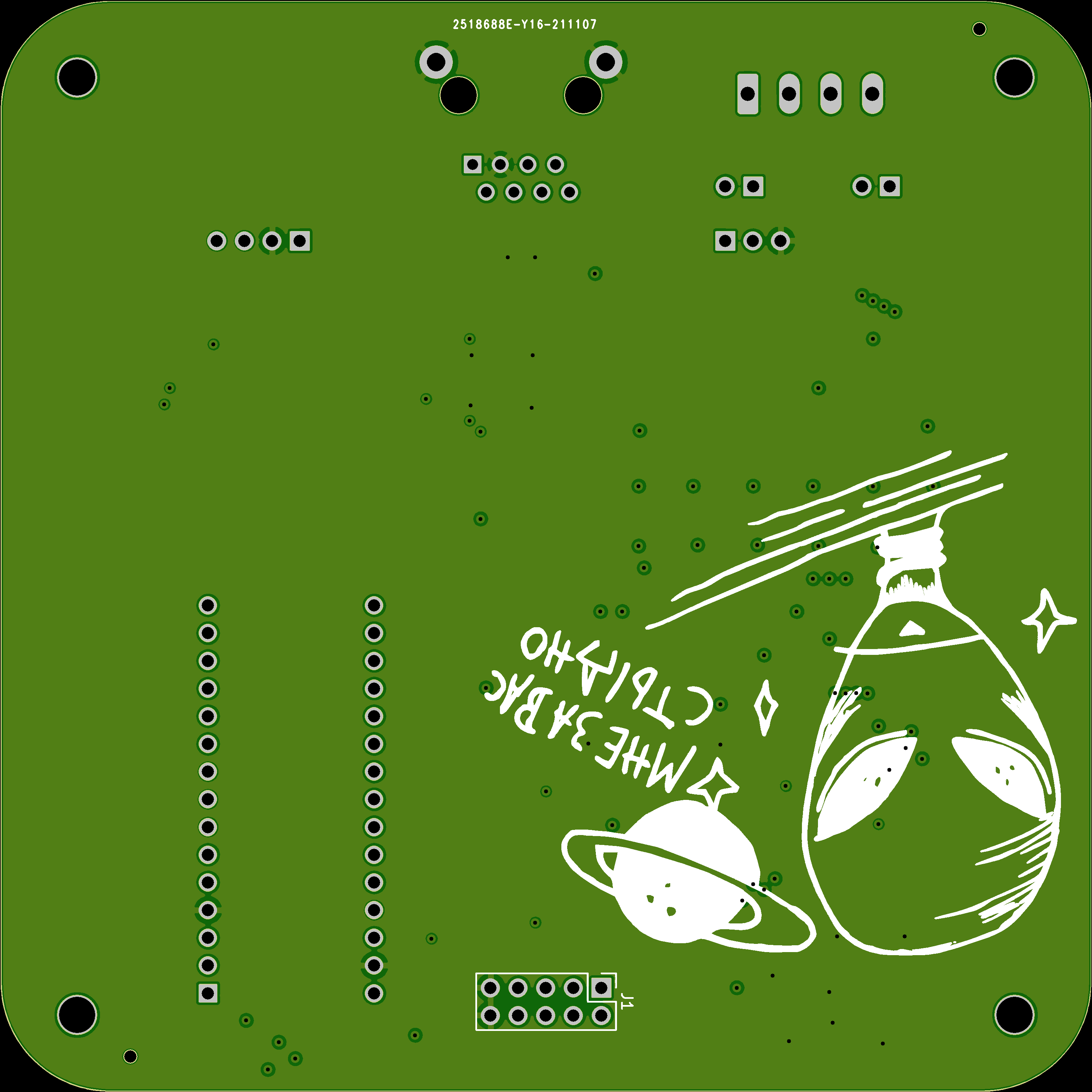

TEC2, from the project README
From the project README

Main components on the TEC2

TPS562200MAX31865xTPIR2104ADS1115IDGSTS5A3166DBVR74HC595AD8572AD8606ARZArduino_Nano_v3.x

TEC2 bill of materials (BOM)

108 components, 49 distinct parts.

QtyPartRefs
1
TPS562200
U1
1
MAX31865xTP
U2
2
IR2104
U3, U4
1
ADS1115IDGS
U5
5
TS5A3166DBVR
U6, U7, U8, U9, U10
1
74HC595
U11
1
AD8572
U12
1
AD8606ARZ
U13
1
Arduino_Nano_v3.x
A1
4
IRF7403
Q1, Q2, Q4, Q5
1
FDV303N
Q3
1
J_PCB_UPPER
J1
1
J_PCB_DOWN
J2
1
ToPT100
J3
1
IN_12V_POWER
J4
1
J_COOLER
J5
1
J_TERMO
J6
1
I2C_Port
J7
1
RJ45_Shielded
J8
1
I2C_dbg
J9
Show 29 more
QtyPartRefs
1
SJ2
JP1
1
SJ1
JP2
1
SJ3
JP3
1
5V_LED
D1
2
US2MA
D2, D12
1
12V_LED
D3
8
1N4148W
D4, D5, D6, D7, D13, D14, D15, D16
1
FUN_LED
D8
1
1N4001
D9
2
LED
D10, D11
1
4.7uH
L1
10
100nF
C1, C5, C7, C8, C9, C15, C22, C23 +2
7
10uF
C2, C3, C4, C10, C13, C24, C25
2
220uF
C6, C12
2
1uF
C11, C14
5
6nF
C16, C17, C20, C21, C29
2
62nF
C18, C19
1
470nf
C28
1
430
R1
1
56.2k
R2
7
10k
R3, R4, R5, R6, R8, R9, R26
1
390
R7
5
1k
R10, R13, R14, R15, R25
4
47
R11, R12, R16, R17
6
100
R18, R19, R20, R21, R24, R31
1
1
R22
1
10
R23
2
20k
R27, R30
2
13k
R28, R29

TEC2 design files

The KiCad project lives in the Oerdna/V2_TEC repository on GitHub; these links point at the commit this page was built from.

TEC2: common questions

What microcontroller does the TEC2 use?

The TEC2 is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the TEC2 PCB?

The TEC2 measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the TEC2?

108 components, from 49 distinct parts. The full bill of materials is listed on this page.

Where can I download the TEC2 design files?

From the Oerdna/V2_TEC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the TEC2 design in my own project?

Yes, under the terms of its AGPL-3.0 license, which Oerdna chose for the repository.

Can I test firmware for the TEC2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
