Regulator daisy
About the Regulator daisy PCB
Regulator daisy is an open source PCB design by ohmtech-rdi, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 20 × 19 mm, with 8 components from 7 distinct parts.
Other key parts include the R-78E5.0-0.5. By type, the board carries 4 capacitors, 2 connectors, 1 IC and 1 inductor.
It belongs with the audio designs in this gallery.
From the project
Software to Hardware Prototyping for Eurorack using C++, Max/Gen~ or Faust

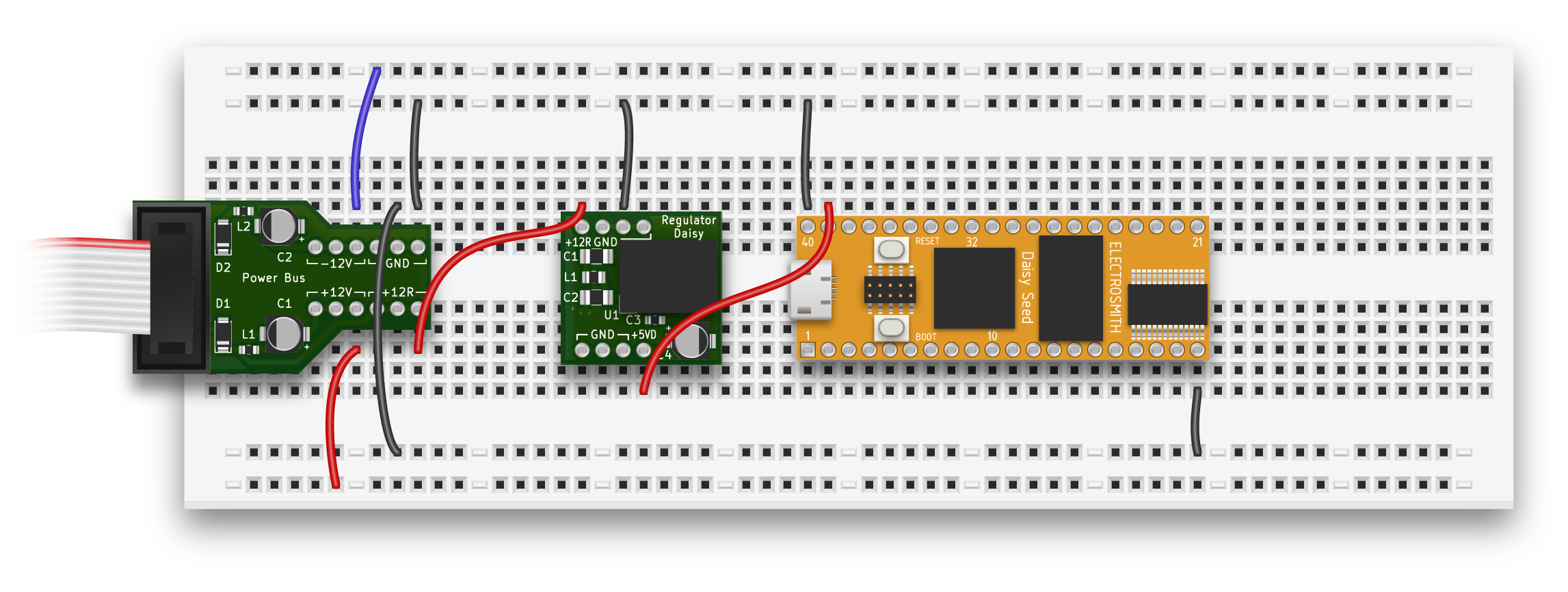

This block is a simple voltage regulator aim to power the Daisy Seed. Its design is detailed here.
- This block needs its GND to be connected to the ground. All GND pins are connected internally, - This block needs its +12R to be connected to the +12R of the power-bus, - The pin +5VD is the regulated output. It needs to be connected to the Daisy Seed VIN (Pin 39) See Daisy Seed pinout for details.
Main components on the Regulator daisy
Regulator daisy bill of materials (BOM)
8 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | R-78E5.0-0.5 | Converter_DCDC_RECOM_R-78E-0.5_THT | U1 |
| 1 | IN | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | OUT | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | 33u | L_0805_2012Metric | L1 |
| 2 | 22u | C_1206_3216Metric | C1, C2 |
| 1 | 100n | C_0603_1608Metric | C3 |
| 1 | 10u | CP_Elec_4x5.8 | C4 |
Regulator daisy design files
The KiCad project lives in the ohmtech-rdi/eurorack-blocks repository on GitHub; these links point at the commit this page was built from.
Regulator daisy: common questions
How big is the Regulator daisy PCB?
The Regulator daisy measures 20 × 19 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Regulator daisy?
8 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Regulator daisy design files?
From the ohmtech-rdi/eurorack-blocks repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Regulator daisy design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which ohmtech-rdi chose for the repository.
