Multiplexer
About the Multiplexer PCB
Multiplexer is an open source PCB design by ohmtech-rdi, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 22 × 19 mm, with 5 components from 5 distinct parts.
Other key parts include the 4051. By type, the board carries 2 connectors, 2 capacitors and 1 IC.
It belongs with the audio designs in this gallery.
From the project

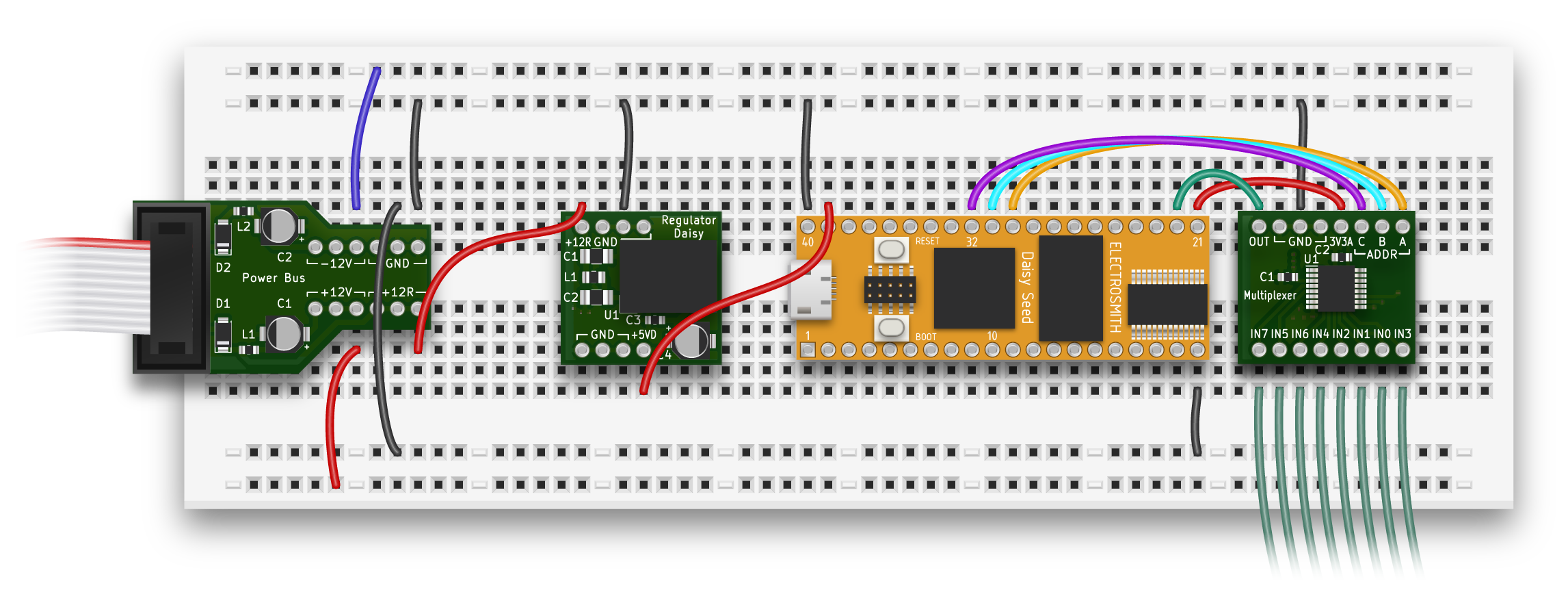

Software to Hardware Prototyping for Eurorack using C++, Max/Gen~ or Faust
This block allows to multiplex up to 8 pot or trim values into a single value. Its design is detailed here.
The number of actual Analog GPIOs on an MCU is always very limited, and one can quickly have more controls and CVs on their panel than the number of available Analog GPIOs.
Multiplexing multiple signals to one signal allows to overcome this problem, at the expense of a slower reading rate. Therefore it is suited for slowly varying signals such as the ones delivered by a potentiometer.
Main components on the Multiplexer
Multiplexer bill of materials (BOM)
5 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4051 | TSSOP-16_4.4x5mm_P0.65mm | U1 |
| 1 | BOTTOM | PinHeader_1x08_P2.54mm_Vertical | J2 |
| 1 | TOP | PinHeader_1x08_P2.54mm_Vertical | J3 |
| 1 | 1n | C_0603_1608Metric | C1 |
| 1 | 100n | C_0603_1608Metric | C2 |
Multiplexer design files
The KiCad project lives in the ohmtech-rdi/eurorack-blocks repository on GitHub; these links point at the commit this page was built from.
Multiplexer: common questions
How big is the Multiplexer PCB?
The Multiplexer measures 22 × 19 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Multiplexer?
5 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Multiplexer design files?
From the ohmtech-rdi/eurorack-blocks repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Multiplexer design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which ohmtech-rdi chose for the repository.
