Cv in
About the Cv in PCB
Cv in is an open source PCB design by ohmtech-rdi, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 25 × 19 mm, with 13 components from 13 distinct parts.
Other key parts include the MCP6001U. By type, the board carries 4 resistors, 3 connectors, 3 capacitors, 2 diodes and 1 IC.
It belongs with the audio designs in this gallery.
From the project
Software to Hardware Prototyping for Eurorack using C++, Max/Gen~ or Faust
This block is a simple analog CV input. Its design is detailed here.

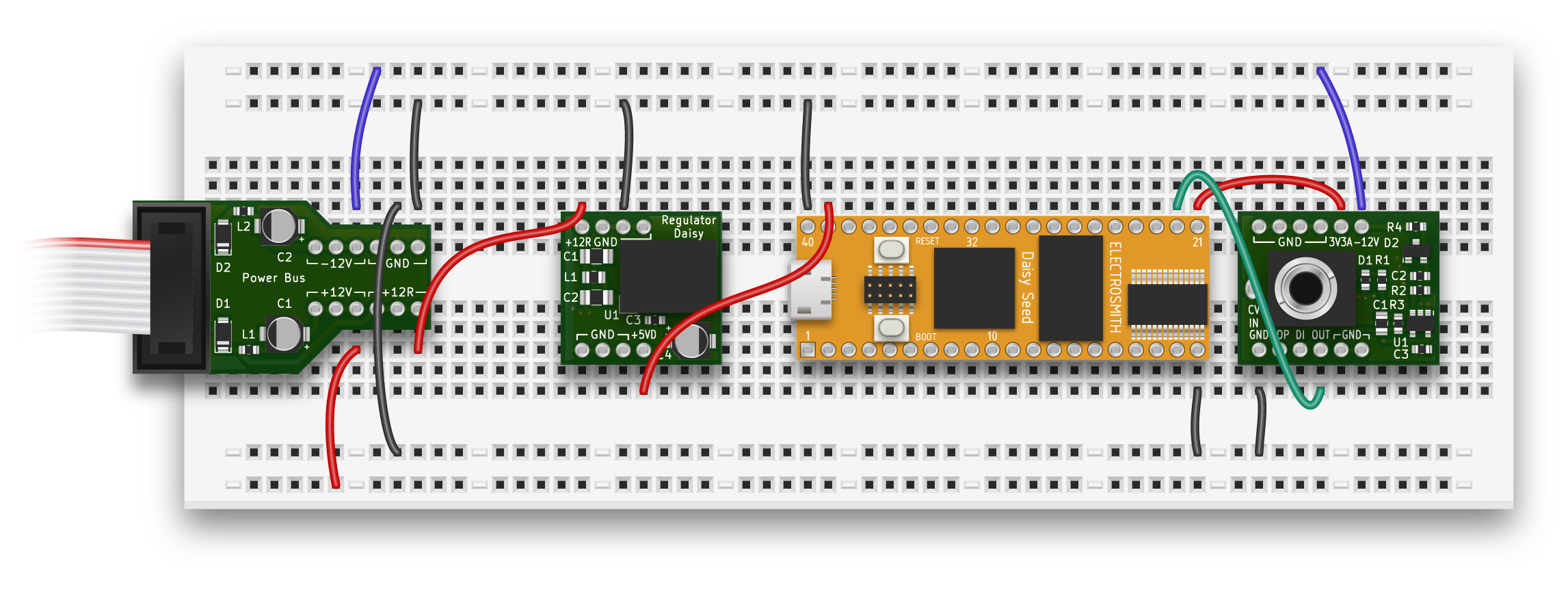

- This block needs its GND to be connected to the ground. All GND pins are connected internally, - This block needs its -12V to be connected to the -12V of the power-bus, - This block needs its 3V3A to be connected to the Daisy Seed 3V3 Analog Power I/O on Pin 21, - The NOP pin can be either connected to: - GND to send (slightly noisy) zeros to the software implementation, - Cascading the DI signal from another cv-in block, - A pseudo-random predefined signal to detect a jack connection as explained on the Mutable…
Main components on the Cv in
Cv in bill of materials (BOM)
13 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP6001U | SOT-23-5 | U1 |
| 1 | IN | ThonkiconnJack | J1 |
| 1 | OUT | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | POWER | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | D_TVS | R_0603_1608Metric | D1 |
| 1 | LM4040DBZ-10 | SOT-23 | D2 |
| 1 | 33n | C_0805_2012Metric | C1 |
| 1 | 1u | C_0603_1608Metric | C2 |
| 1 | 100n | C_0603_1608Metric | C3 |
| 1 | 100k | R_0603_1608Metric | R1 |
| 1 | 120k | R_0603_1608Metric | R2 |
| 1 | 20k | R_0603_1608Metric | R3 |
| 1 | 4.99k | R_0603_1608Metric | R4 |
Cv in design files
The KiCad project lives in the ohmtech-rdi/eurorack-blocks repository on GitHub; these links point at the commit this page was built from.
Cv in: common questions
How big is the Cv in PCB?
The Cv in measures 25 × 19 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cv in?
13 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Cv in design files?
From the ohmtech-rdi/eurorack-blocks repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Cv in design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which ohmtech-rdi chose for the repository.
