Audio in daisy
About the Audio in daisy PCB
Audio in daisy is an open source PCB design by ohmtech-rdi, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 25 × 19 mm, with 13 components from 10 distinct parts.
Other key parts include the TL072. By type, the board carries 5 resistors, 4 capacitors, 3 connectors and 1 IC.
It belongs with the audio designs in this gallery.
From the project
Software to Hardware Prototyping for Eurorack using C++, Max/Gen~ or Faust
This block is a simple analog audio input for the Daisy Seed onboard codec. Its design is detailed here.

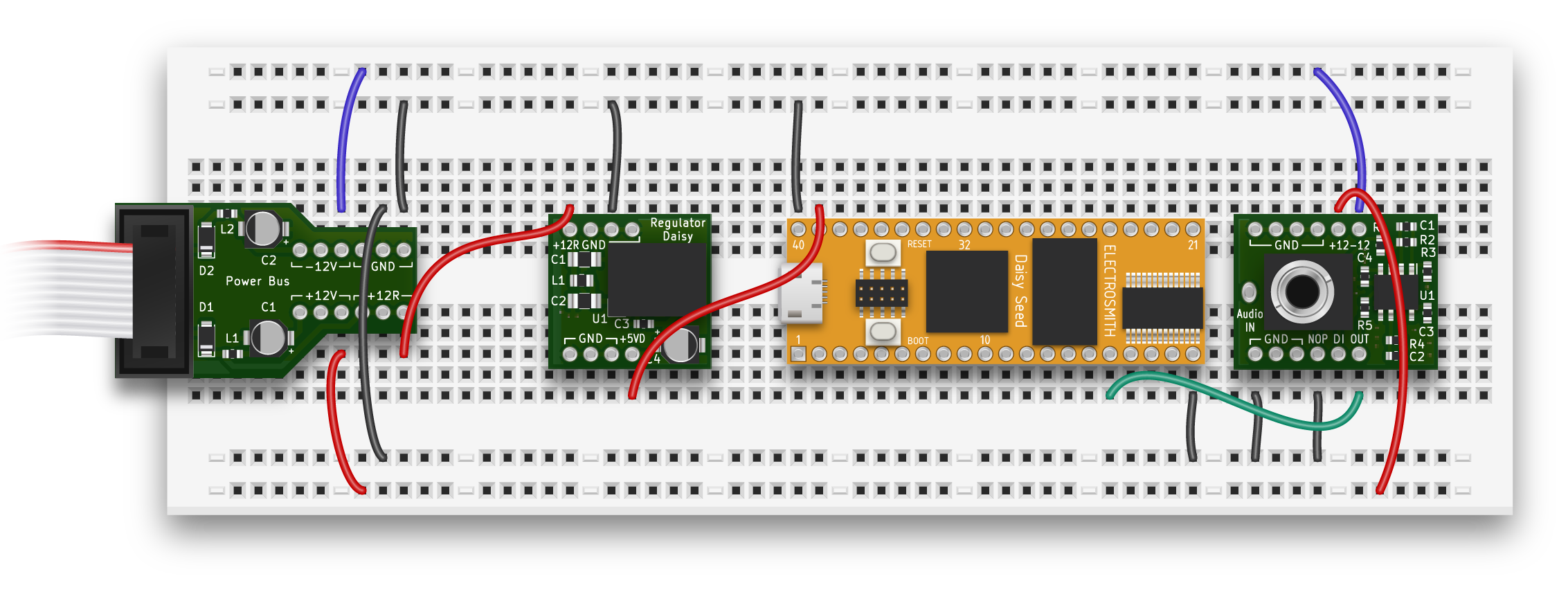

- This block needs its GND to be connected to the ground. All GND pins are connected internally, - This block needs its -12 to be connected to the -12V of the power-bus, - This block needs its +12 to be connected to the +12V of the power-bus, - The NOP pin can be either connected to: - GND to send (slightly noisy) zeros to the software implementation, - Cascading the DI signal from another audio-in-daisy block, - A pseudo-random predefined signal to detect a jack connection as explained…
Main components on the Audio in daisy
Audio in daisy bill of materials (BOM)
13 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | IN | ThonkiconnJack | J1 |
| 1 | OUT | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | POWER | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | 47p | C_0603_1608Metric | C1 |
| 1 | 560p | C_0603_1608Metric | C2 |
| 2 | 100n | C_0603_1608Metric | C3, C4 |
| 3 | 100k | R_0603_1608Metric | R1, R2, R3 |
| 1 | 10k | R_0603_1608Metric | R4 |
| 1 | 1k | R_0603_1608Metric | R5 |
Audio in daisy design files
The KiCad project lives in the ohmtech-rdi/eurorack-blocks repository on GitHub; these links point at the commit this page was built from.
Audio in daisy: common questions
How big is the Audio in daisy PCB?
The Audio in daisy measures 25 × 19 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Audio in daisy?
13 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Audio in daisy design files?
From the ohmtech-rdi/eurorack-blocks repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Audio in daisy design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which ohmtech-rdi chose for the repository.
