Panel daisy
About the Panel daisy PCB
Panel daisy is an open source PCB design by ohmtech-rdi, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 148 × 84.5 mm, with 20 components from 18 distinct parts.
Other key parts include the MCP6001U. By type, the board carries 5 resistors, 4 capacitors, 3 connectors, 2 diodes, 2 inductors and 1 IC.
It belongs with the audio designs in this gallery.
From the project
Software to Hardware Prototyping for Eurorack using C++, Max/Gen~ or Faust

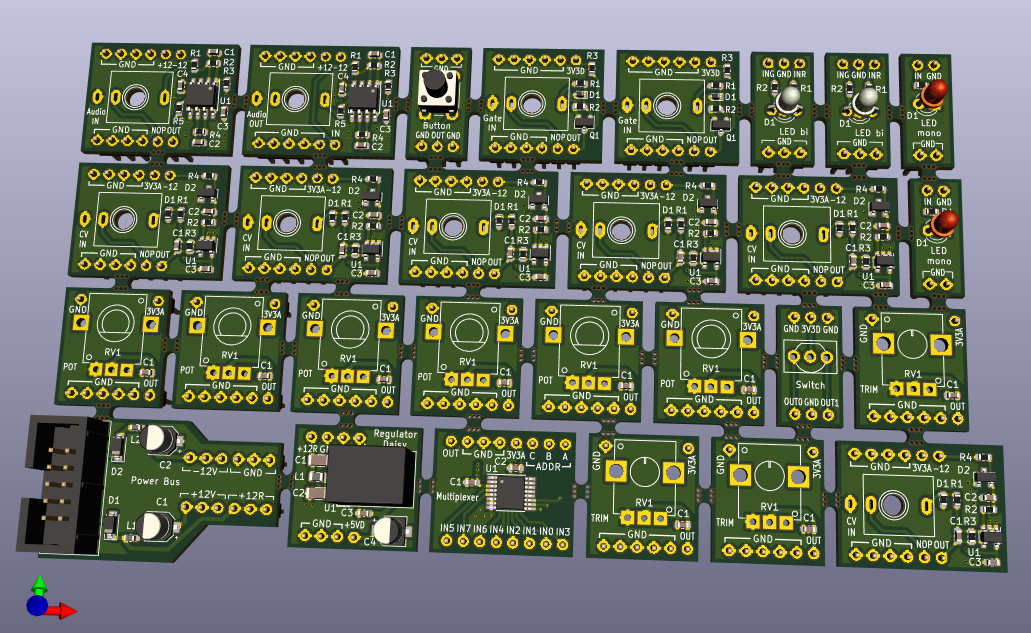

This contains "kits" as panels of the most used block for the most popular digital modules.
Blocks are collected into panels to reduce the cost of producing one panel. The more panels are ordered, the more it is going to fit any configuration of modules: - 1 panel is a good setup to start with, covering all simplest needs, - 2 panels are an excellent setup to cover about any cases, - 3 panels cover every use, except for very specific ones.
Main components on the Panel daisy
Panel daisy bill of materials (BOM)
20 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP6001U | SOT-23-5 | U1 |
| 1 | MMBT3904 | SOT-23 | Q1 |
| 1 | OUT | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 1 | GND | PinHeader_1x01_P2.54mm_Vertical | J2 |
| 1 | 3V3 | PinHeader_1x01_P2.54mm_Vertical | J3 |
| 1 | 100k | SongHueiTallTrim9 | RV1 |
| 1 | SW_Push_Dual | SW_PUSH_6mm_H7.3mm | SW1 |
| 1 | D_TVS | R_0603_1608Metric | D1 |
| 1 | LM4040 | SOT-23 | D2 |
| 1 | 33u | L_0805_2012Metric | L1 |
| 1 | FB | L_0603_1608Metric | L2 |
| 3 | 100n | C_0603_1608Metric | C1, C3, C4 |
| 1 | 1u | C_0603_1608Metric | C2 |
| 1 | 100k | R_0603_1608Metric | R1 |
| 1 | 120k | R_0603_1608Metric | R2 |
| 1 | 20k | R_0603_1608Metric | R3 |
| 1 | 4.99k | R_0603_1608Metric | R4 |
| 1 | 1k | R_0603_1608Metric | R5 |
Panel daisy design files
The KiCad project lives in the ohmtech-rdi/eurorack-blocks repository on GitHub; these links point at the commit this page was built from.
Panel daisy: common questions
How big is the Panel daisy PCB?
The Panel daisy measures 148 × 84.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Panel daisy?
20 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the Panel daisy design files?
From the ohmtech-rdi/eurorack-blocks repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Panel daisy design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which ohmtech-rdi chose for the repository.
