Audio out daisy
About the Audio out daisy PCB
Audio out daisy is an open source PCB design by ohmtech-rdi, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 25 × 19 mm, with 13 components from 9 distinct parts.
Other key parts include the TL072. By type, the board carries 5 resistors, 4 capacitors, 3 connectors and 1 IC.
It belongs with the audio designs in this gallery.
From the project
Software to Hardware Prototyping for Eurorack using C++, Max/Gen~ or Faust

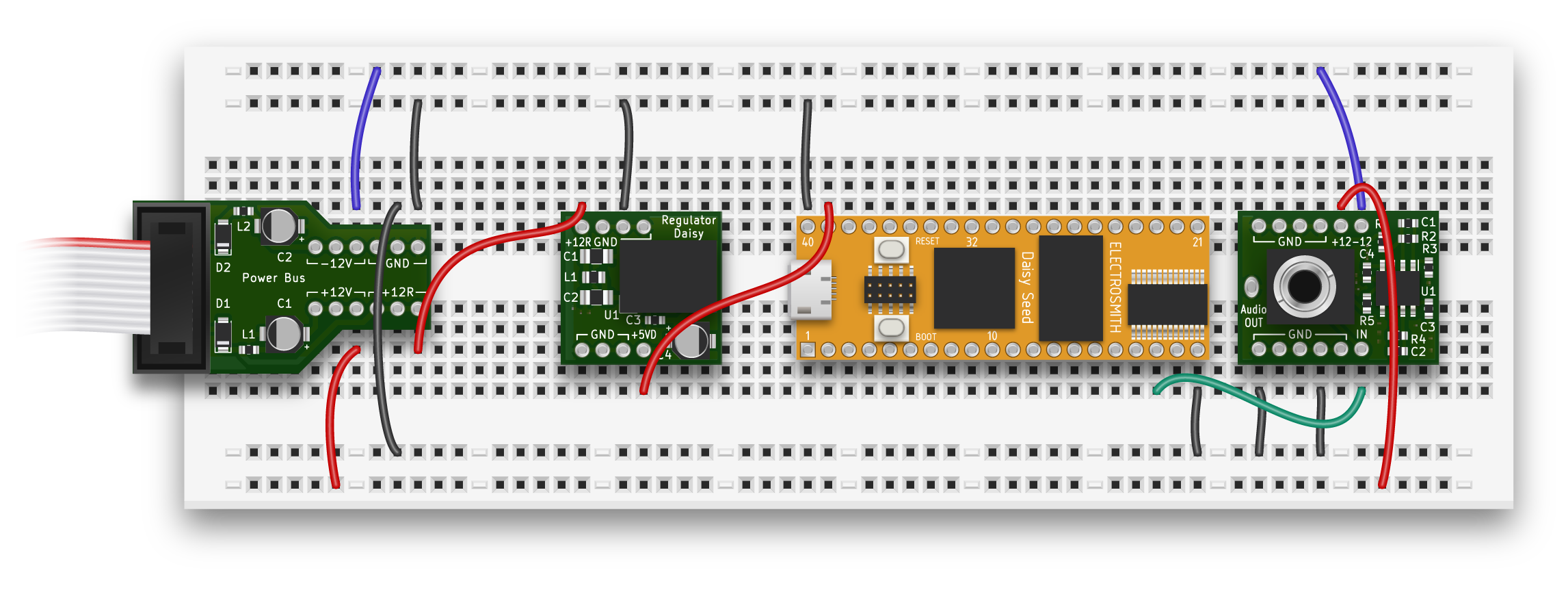

This block is a simple analog audio output for the Daisy Seed onboard codec. Its design is detailed here.
- This block needs its GND to be connected to the ground. All GND pins are connected internally, - This block needs its -12 to be connected to the -12V of the power-bus, - This block needs its +12 to be connected to the +12V of the power-bus, - The signal IN is the audio output signal. It should be connected to either Pin 18 or Pin 19. See Daisy Seed pinout for details.
Main components on the Audio out daisy
Audio out daisy bill of materials (BOM)
13 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | IN | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 1 | OUT | ThonkiconnJack | J2 |
| 1 | POWER | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 2 | 47p | C_0603_1608Metric | C1, C2 |
| 2 | 100n | C_0603_1608Metric | C3, C4 |
| 1 | 10k | R_0603_1608Metric | R1 |
| 3 | 100k | R_0603_1608Metric | R2, R3, R4 |
| 1 | 1k | R_0603_1608Metric | R5 |
Audio out daisy design files
The KiCad project lives in the ohmtech-rdi/eurorack-blocks repository on GitHub; these links point at the commit this page was built from.
Audio out daisy: common questions
How big is the Audio out daisy PCB?
The Audio out daisy measures 25 × 19 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Audio out daisy?
13 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Audio out daisy design files?
From the ohmtech-rdi/eurorack-blocks repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Audio out daisy design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which ohmtech-rdi chose for the repository.
