About the Firefish PCB
Firefish is an open source Microchip SAM PCB design by pimbongaerts, published on GitHub under the Custom license license. It is a 2-layer board measuring 72.2 × 42.8 mm, with 95 components from 42 distinct parts.
Its main chip is the ATSAMD51J19A-AU, from the Microchip SAM family. Other key parts include the MAX3232CPWRG4, ADXL345BCCZ, MX25L12833FM2I-10G, TCMT1100 and BU33SD5WG. By type, the board carries 32 resistors, 31 capacitors, 12 ICs, 7 connectors, 5 diodes and 4 inductors.

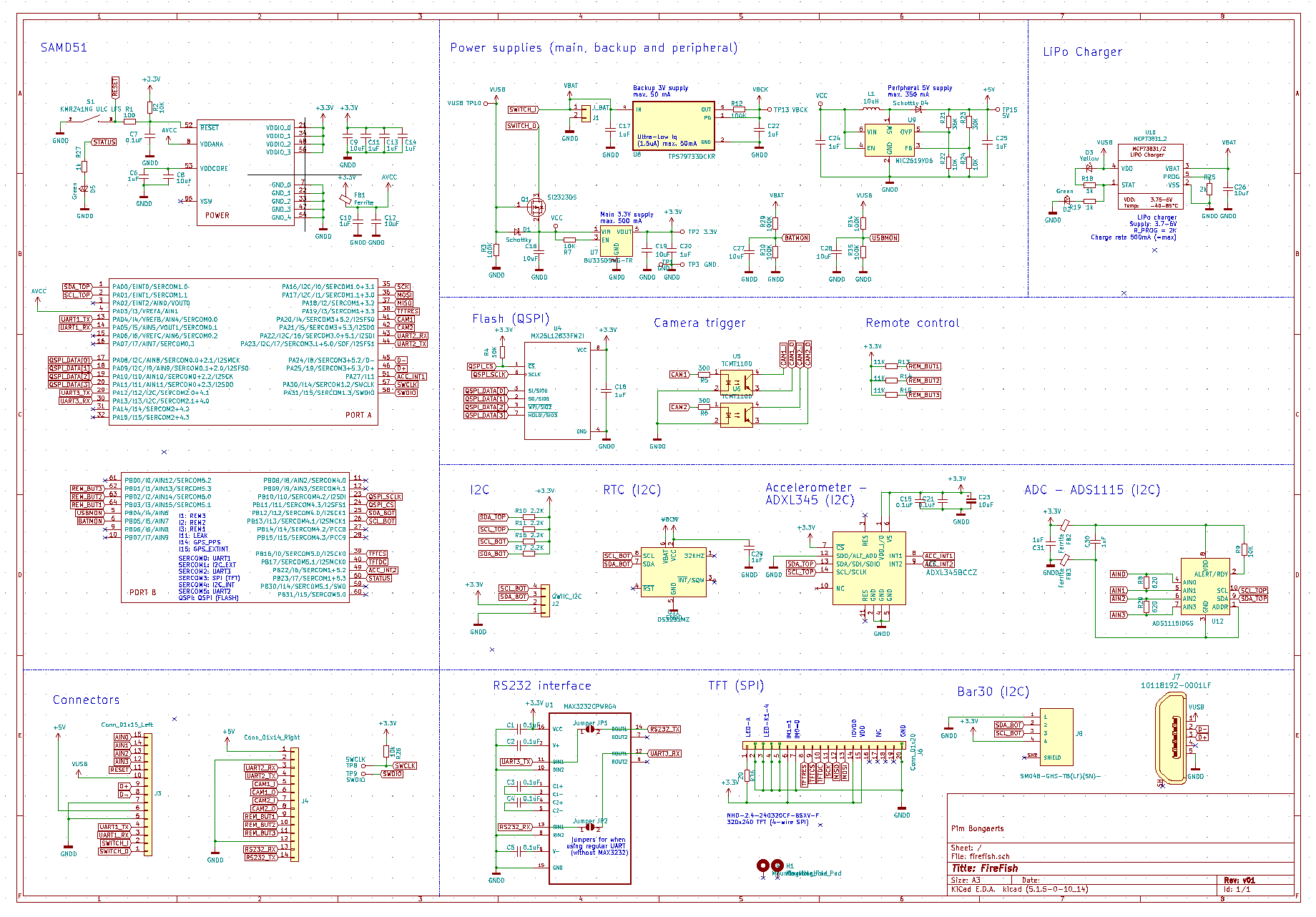

From the project
Underwater sonar/USBL interface for photogrammetry surveys.
Canonical KiCad 8 design for the FireFish board (ATSAMD51J19A), plus the fabrication outputs used for the PCBWay build. Licensed CERN-OHL-S v2 (see repo LICENSE.md).

Main components on the Firefish
Firefish bill of materials (BOM)
95 components, 42 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX3232CPWRG4 Texas Instruments | SOP65P640X120-16N | U1 |
| 1 | ATSAMD51J19A-AU ATSAMD51J64-TQFP(10X10) Microchip Technology | TQFP64-10X10 | U2 |
| 1 | ADXL345BCCZ Analog Devices Inc. | LGA-14_3x5mm_RevA | U3 |
| 1 | MX25L12833FM2I-10G MX25L12833FM2I MXIC(Macronix) | SOIC127P790X216-8N | U4 |
| 2 | TCMT1100 Vishay Intertech | SOP-4_4.4x2.6mm_P1.27mm | U5, U6 |
| 1 | BU33SD5WG BU33SD5WG-TR ROHM Semicon | SOT95P280X125-5N | U7 |
| 1 | TPS79733DCKR Texas Instruments | SOT65P210X110-5N | U8 |
| 1 | MIC2619YD6 Microchip Technology | TSOT-23-6 | U9 |
| 1 | MCP73831T-2ACI/OT MCP73831_2 Microchip Tech | SOT23-5 | U10 |
| 1 | DS3231MZ+TRL DS3231MZ Analog Devices Inc./Maxim Integrated | SOIC-8_3.9x4.9mm_P1.27mm | U11 |
| 1 | ADS1115IDGSR ADS1115IDGS Texas Instruments | MSOP-10_3x3mm_P0.5mm | U12 |
| 1 | SI2323DS-T1 SI2323DS Vishay Siliconix | SOT-23 | Q1 |
| 1 | 502443-0270 J_BAT Molex | Molex_CLIK-Mate_502443-0270_1x02-1MP_P2.00mm_Vertical | J1 |
| 1 | SM04B-SRSS-TB QWIIC_I2C JST | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J2 |
| 1 | 502443-1570 Conn_01x15_Left Molex | Molex_CLIK-Mate_502443-1570_1x15-1MP_P2.00mm_Vertical | J3 |
| 1 | 502443-1470 Conn_01x14_Right Molex | Molex_CLIK-Mate_502443-1470_1x14-1MP_P2.00mm_Vertical | J4 |
| 1 | 52271-2069 Conn_01x20 Molex | Molex-52271-2069-Manufacturer_Recommended | J6 |
| 1 | 10118192-0001LF Amphenol ICC (FCI) | USB_Micro_B_Female_10118192 | J7 |
| 1 | SM04B-GHS-TB SM04B-GHS-TB(LF)(SN)- JST | JST_SM04B-GHS-TB(LF)(SN)- | J8 |
| 2 | Jumper | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1, JP2 |
Show 22 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | KMR211NGLFS KMR241NG ULC LFS C&K | SW_KMR211NGLFS | S1 |
| 2 | Schottky Jiangsu Changjing Electronics Technology Co., Ltd. | D_SOD-123F | D1, D4 |
| 2 | KT-0805G Green Hubei KENTO Elec | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2, D5 |
| 1 | KT-0805Y Yellow Hubei KENTO Elec | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D3 |
| 3 | MMZ2012Y102BT000 Ferrite TDK | 0805 | FB1, FB2, FB3 |
| 1 | LQH32PN100MNCL 10uH Murata Electronics | IND_LQH32PN100MN0L | L1 |
| 8 | 0.1uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C2, C3, C4, C5, C7, C15, C21 |
| 14 | 1uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C6, C10, C11, C13, C14, C17, C18, C20 +6 |
| 8 | 10uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C8, C9, C12, C16, C19, C26, C27, C28 |
| 1 | 10uF | CP_EIA-3216-18_Kemet-A | C23 |
| 1 | 100 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1 |
| 7 | 10K | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R2, R4, R7, R9, R22, R24, R26 |
| 6 | 100K | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R3, R12, R29, R30, R34, R35 |
| 2 | 300 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R5, R6 |
| 2 | 620 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R8, R20 |
| 4 | 2.2K | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R10, R11, R16, R17 |
| 3 | 11K | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R13, R14, R15 |
| 3 | 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R18, R19, R27 |
| 1 | 36K | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R21 |
| 1 | 30K | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R23 |
| 1 | 2k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R25 |
| 1 | 20 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R36 |
Firefish design files
The KiCad project lives in the pimbongaerts/firefish repository on GitHub; these links point at the commit this page was built from.
Firefish: common questions
What microcontroller does the Firefish use?
The Firefish is built around the ATSAMD51J19A-AU, from the Microchip SAM family.
How big is the Firefish PCB?
The Firefish measures 72.2 × 42.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Firefish?
95 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Firefish design files?
From the pimbongaerts/firefish repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Firefish design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Firefish without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
