Wireslesslock
About the Wireslesslock PCB
Wireslesslock is an open source ESP32 PCB design by Shehroz30, published on GitHub under the MIT license. It is a 4-layer board measuring 50 × 50 mm, with 67 components from 45 distinct parts.
Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the BQ24040DSQR, USBLC6-2SC6, TPS63020DSJR, TPS55340RTER and SIM68M. By type, the board carries 26 capacitors, 17 resistors, 8 ICs, 5 diodes, 3 inductors and 2 transistors.
It belongs with the iot & wireless, rf & radio and power & battery designs in this gallery.
From the project
An ESP32-S3 hosts a web page over WiFi; the Open control energizes a latching solenoid in a padlock body. The page also reports accelerometer and GPS readings.
An ESP32-S3 hosts a web page over WiFi; the Open control energizes a latching solenoid in a padlock body. The page also reports accelerometer and GPS readings.

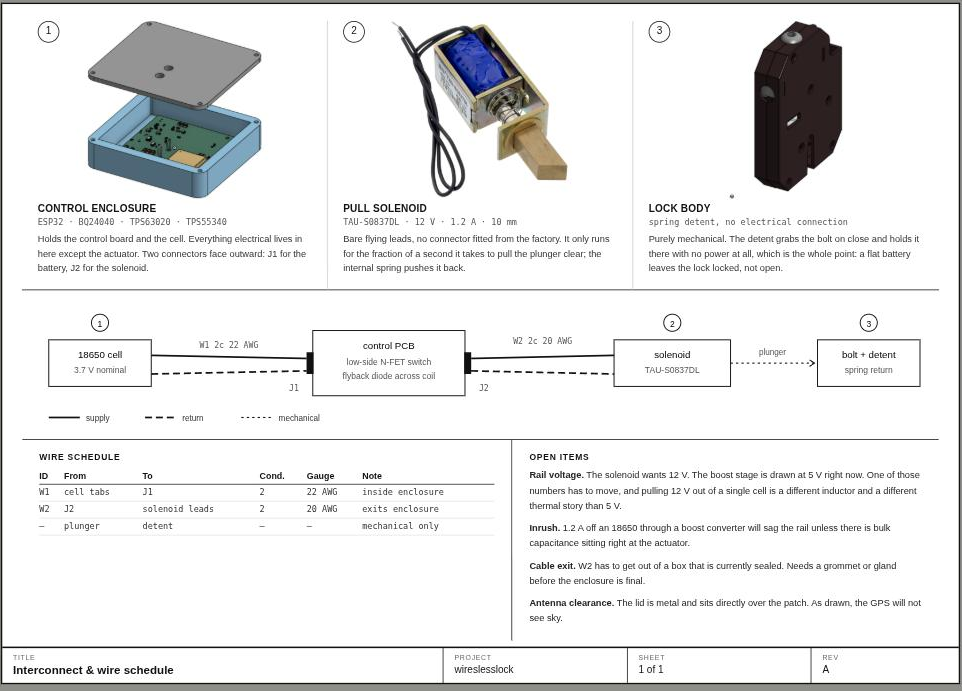

The design covers two parts: the control PCB and the padlock. The rest is an existing bike lock frame.
An ESP32-S3 hosts a web page over WiFi; the Open control energizes a latching solenoid in a padlock body. The page also reports accelerometer and GPS readings.
Main components on the Wireslesslock
Wireslesslock bill of materials (BOM)
67 components, 45 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BQ24040DSQR | WSON-10_L2.0-W2.0-P0.40-BL-EP | U1 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U2 |
| 1 | TPS63020DSJR | VSON-14_L4.0-W3.0-P0.50-BL-EP_TI_DSJ | U3 |
| 1 | TPS55340RTER TI(德州仪器) | VQFN-16_L3.0-W3.0-P0.50-BL-EP1.7 | U4 |
| 1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | U5 |
| 1 | SIM68M SIMCOM(芯讯通无线科技) | GPSM-SMD_18P-L10.1-W9.7-P1.10 | U6 |
| 1 | LIS2DH12TR ST(意法半导体) | LGA-12_L2.0-W2.0-P0.50-BL | U7 |
| 1 | GPS1003 Rainsun(霖昱微) | ANT-SMD_L10.0-W3.0 | U8 |
| 1 | AO3400A | SOT-23 | Q1 |
| 1 | DTC143Z | SOT-323_SC-70 | Q2 |
| 1 | MC-311D | USB-C-SMD_MC-311D | J1 |
| 1 | C157932 BATTERY | CONN-TH_S2B-PH-K-S-GW | J2 |
| 2 | TS-1088-AR02016 | SW-SMD_L3.9-W3.0-P4.45 | SW2, SW3 |
| 1 | VCC_SOL | TestPoint_Loop_D3.80mm_Drill2.8mm | TP1 |
| 1 | GND_SOL | TestPoint_Loop_D3.80mm_Drill2.8mm | TP2 |
| 3 | LED | LED_0603_1608Metric | D1, D2, D5 |
| 1 | C8678 D_Schottky | SMA_L4.3-W2.7-LS5.1-RD | D3 |
| 1 | S1M | SMA_L4.3-W2.7-LS5.1-RD | D4 |
| 1 | 10UH 10uH | IND-SMD_L7.2-W6.6_GPSR07X0 | L1 |
| 1 | 2.2UH 2.2uH | L1008 | L2 |
Show 25 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 18NH 18nH | L_0402_1005Metric | L4 |
| 2 | 1UF 1uf | C_0603_1608Metric | C1, C2 |
| 5 | 100NF 100nF | C_0603_1608Metric | C3, C8, C18, C26, C27 |
| 3 | 10UF 10uf | C_0603_1608Metric | C4, C6, C28 |
| 4 | 4.7UF 4.7uF | C_1206_3216Metric | C5, C12, C14, C16 |
| 4 | 0.1UF 0.1uF | C_0603_1608Metric | C7, C11, C19, C21 |
| 1 | 0.047UF 0.047uF | C_0603_1608Metric | C9 |
| 1 | 100NF 100nF | C_0402_1005Metric | C10 |
| 3 | 22UF 22uf | C_0805_2012Metric | C13, C15, C17 |
| 1 | 22UF 22uF | C_1206_3216Metric | C20 |
| 1 | 0 | C_0402_1005Metric | C22 |
| 1 | 4.7UF 4.7uF | C_0402_1005Metric | C23 |
| 1 | 560 | R_0603_1608Metric | R1 |
| 2 | 5.1K 5.1k | R_0402_1005Metric | R2, R3 |
| 2 | 1k | R_0603_1608Metric | R4, R5 |
| 3 | 10K 10k | R_0603_1608Metric | R7, R13, R16 |
| 1 | 2k | R_0603_1608Metric | R8 |
| 1 | 1M | R_0603_1608Metric | R9 |
| 1 | 180K 180k | R_0603_1608Metric | R10 |
| 1 | 75K 75k | R_0603_1608Metric | R11 |
| 1 | 86.6K | R_0603_1608Metric | R12 |
| 1 | 10K 10k | R_0402_1005Metric | R17 |
| 1 | 220 | R_0402_1005Metric | R18 |
| 1 | 0 | R_0402_1005Metric | R19 |
| 1 | 1k | R_0402_1005Metric | R20 |
Wireslesslock design files
The KiCad project lives in the Shehroz30/wireslesslock repository on GitHub; these links point at the commit this page was built from.
- Layoutwireslesslock.kicad_pcb
- Schematicwireslesslock.kicad_sch
- BOMBOM.csv
Wireslesslock: common questions
What microcontroller does the Wireslesslock use?
The Wireslesslock is built around the ESP32-S3-WROOM-1, from the ESP32 family.
How big is the Wireslesslock PCB?
The Wireslesslock measures 50 × 50 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Wireslesslock?
67 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Wireslesslock design files?
From the Shehroz30/wireslesslock repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Wireslesslock design in my own project?
Yes, under the terms of its MIT license, which Shehroz30 chose for the repository.
Can I test firmware for the Wireslesslock without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
