About the Sra dev board 2026
Sra dev board 2026 is an open source ESP32 PCB design by SRA-VJTI, published on GitHub under the MIT license. It is a 2-layer board measuring 90.2 × 90 mm, with 145 components from 48 distinct parts.
Its main chip is the ESP32-WROOM-32E, from the ESP32 family. Other key parts include the CH340C, TB6612FNG H-bridge Motor Driver, MP1584, AMS1117-3.3 and 74HC595. By type, the board carries 54 resistors, 38 diodes, 19 connectors, 16 capacitors, 9 ICs and 4 switches.
It belongs with the robotics & motion, dev boards & breakouts and power & battery designs in this gallery.
From the project
ESP32-based Development Board for Robotics and Embedded Applications

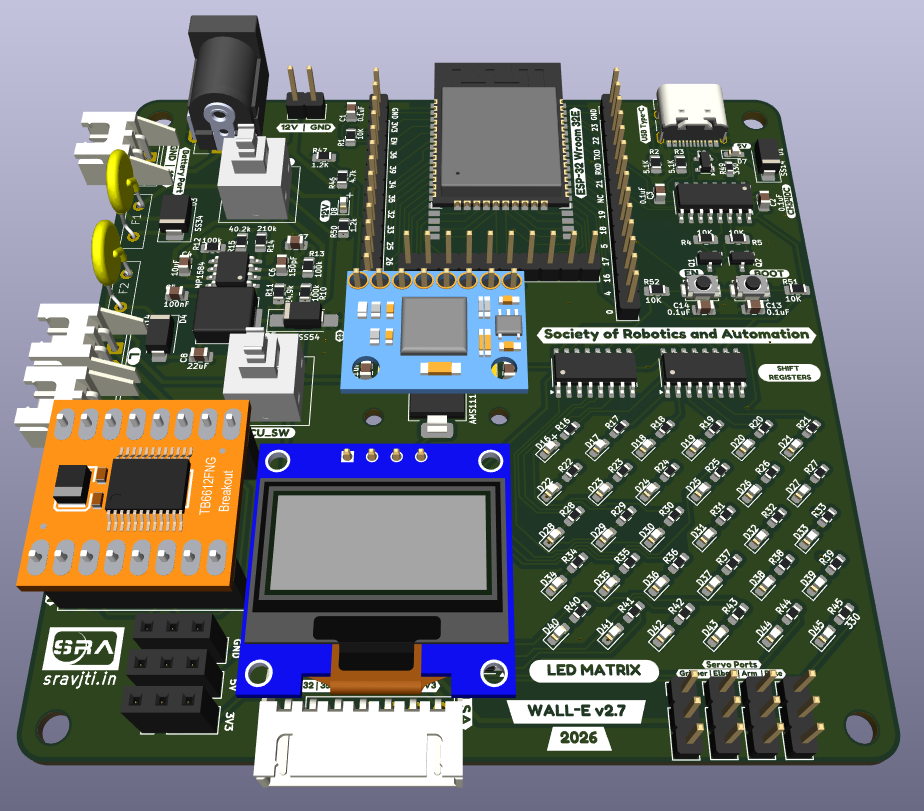

The SRA board is a development board based on ESP32 with on-board peripherals like a programmable LED matrix, switches, sensor ports for Line Sensor Array and MPU-6050, protection circuit for over-current and reverse voltage, and motor drivers.
- SRA Board 2026 - Table of Contents - Board Images - About the Project - Getting Started with a Development Board - Notable problems in the current SRA Board - Improvements Suggested for Future Iterations - Potential Future Enhancements - 3D Models - Milestones - Contributors - Acknowledgements and Resources - License

Main components on the Sra dev board 2026
Sra dev board 2026 bill of materials (BOM)
145 components, 48 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-WROOM-32E | ESP32-WROOM-32E | U1 |
| 1 | CH340C | SOIC-16_3.9x9.9mm_P1.27mm | U2 |
| 1 | TB6612FNG H-bridge Motor Driver | TB6612FNG | U3 |
| 1 | MP1584 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.41x3.3mm | U4 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U5 |
| 4 | 74HC595 | SOIC-16_3.9x9.9mm_P1.27mm | U6, U7, U8, U9 |
| 2 | SS8050 | SOT-23 | Q1, Q2 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J1 |
| 3 | B2B-XH-A_LF__SN_ | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J2, J3, J6 |
| 1 | Barrel_Jack_Switch | BarrelJack_Wuerth_6941xx301002 | J4 |
| 1 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 4 | CONN_01X03_MALE Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J7, J8, J9, J10 |
| 1 | CONN_01X08_FEMALE Conn_01x08_Female | PinHeader_1x08_P2.54mm_Vertical | J11 |
| 1 | CONN_01X04_FEMALE Conn_01x04_Female | PinHeader_1x04_P2.54mm_Vertical | J12 |
| 1 | CONN_01X07_JST Conn_01x07_JST | PinHeader_1x07_P2.54mm_Vertical | J13 |
| 2 | CONN_01X14 Conn_01x14 | PinHeader_1x14_P2.54mm_Vertical | J14, J15 |
| 1 | CONN_01X10 Conn_01x10 | PinHeader_1x10_P2.54mm_Vertical | J16 |
| 3 | CONN_01X03 Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J20, J21, J22 |
| 1 | 3A | Fuse_Littelfuse-LVR100 | F1 |
| 1 | 1A | Fuse_Littelfuse-LVR100 | F2 |
Show 28 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SW_Push_DPDT | SW_Push_2P2T_Toggle_CK_PVA2OAH5xxxxxxV2 | SW1, SW2 |
| 1 | SW_0 | SW_Push_SPST_NO_Alps_SKRK | SW3 |
| 1 | SW_EN | SW_Push_SPST_NO_Alps_SKRK | SW4 |
| 2 | SS14 | D_SMA | D1, D4 |
| 1 | SP0503BAHT | SOT-143 | D2 |
| 1 | SS34 | D_SMB | D3 |
| 1 | D_Schottky | D_SMA_Handsoldering | D5 |
| 33 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D6, D7, D8, D16, D17, D18, D19, D20 +25 |
| 1 | 15UH 15uH | L_Sunlord_MWSA0603S | L1 |
| 8 | 0.1UF 0.1uF | C_0805_2012Metric | C1, C3, C10, C12, C13, C14, C25, C26 |
| 1 | 0.1uF | C_0805_2012Metric | C2 |
| 1 | 10UF 10uF | C_0805_2012Metric | C4 |
| 1 | 100NF 100nF | C_0805_2012Metric | C5 |
| 1 | 150PF 150pF | C_0805_2012Metric | C6 |
| 1 | NS | C_0805_2012Metric | C7 |
| 1 | 22UF 22uF | C_0805_2012Metric | C8 |
| 1 | 10UF 10uF | CP_EIA-3216-10_Kemet-I_HandSolder | C9 |
| 1 | 22UF 22uF | CP_EIA-3216-10_Kemet-I_HandSolder | C11 |
| 5 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R4, R5, R51, R52 |
| 2 | 5.1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R3 |
| 4 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R7, R8, R9 |
| 3 | 100K 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R10, R12, R13 |
| 1 | 24.9K 24.9k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R11 |
| 1 | 210K 210k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R14 |
| 1 | 40.2K 40.2k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R15 |
| 32 | 330R 330 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R16, R17, R18, R19, R20, R21, R22, R23 +24 |
| 3 | 4.7K 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R46, R60, R61 |
| 2 | 1.2K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R47, R50 |
Sra dev board 2026 design files
The KiCad project lives in the SRA-VJTI/sra-board-hardware-design repository on GitHub; these links point at the commit this page was built from.
Sra dev board 2026: common questions
What microcontroller does the Sra dev board 2026 use?
The Sra dev board 2026 is built around the ESP32-WROOM-32E, from the ESP32 family.
How big is the Sra dev board 2026?
The Sra dev board 2026 measures 90.2 × 90 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sra dev board 2026?
145 components, from 48 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sra dev board 2026 design files?
From the SRA-VJTI/sra-board-hardware-design repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sra dev board 2026 design in my own project?
Yes, under the terms of its MIT license, which SRA-VJTI chose for the repository.
Can I test firmware for the Sra dev board 2026 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
