Kinky lynx PCB layout, top view — open source board by tpcarlson

About the Kinky lynx PCB

Kinky lynx is an open source PCB design by tpcarlson, published on GitHub. It is a 2-layer board measuring 40.3 × 128.5 mm, with 129 components from 29 distinct parts.

Other key parts include the TL074 and LM321. By type, the board carries 57 resistors, 25 connectors, 18 diodes, 16 capacitors, 10 ICs and 3 transistors.

It belongs with the audio designs in this gallery.

From the project

Mostly Eurorack projects

A mashup of Mutable Instruments' Kinks and Links all on one board.

(TBC) As measured by the joranalogue Test 3, around x mA on +12v and y mA on -12v at peak. The 5v rail is unused.

This is just a copy of the Kinks and Links schematics jammed together on one PCB, with a couple of very small component changes to allow for easier assembly.

All fairly common parts. Some of the capacitors are quite small (0402 sized) which will make hand soldering a challenge, I had my boards assembled by the PCB fab. I used two pin bicolour LEDs, but you can substitute them for a normal 3mm LED.

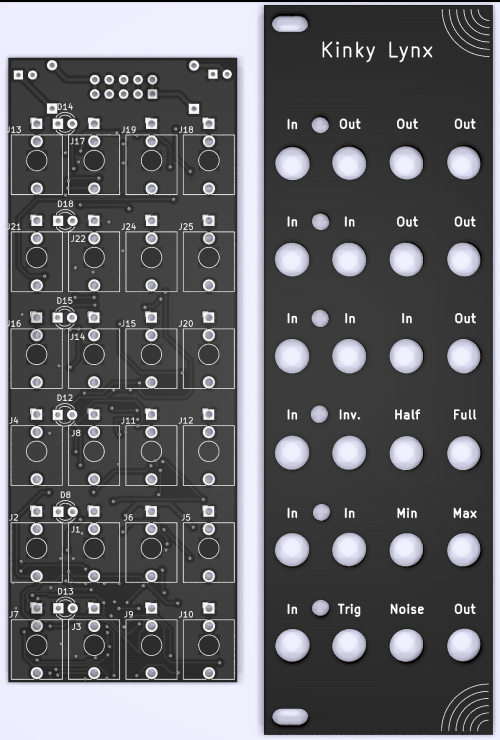

Kinky lynx, from the project README
From the project README

Main components on the Kinky lynx

TL074LM321

Kinky lynx bill of materials (BOM)

129 components, 29 distinct parts.

QtyPartRefs
4
TL074
U1, U2, U6, U8
6
LM321
U3, U4, U5, U7, U9, U10
2
MMBT3904
Q1, Q2
1
MMBFJ309LT1G
Q3
23
AudioJack2
J1, J2, J3, J4, J5, J6, J8, J9 +15
1
AudioJack2_SwitchT
J7
1
Conn_02x05_Odd_Even
J23
10
1N4148
D1, D2, D3, D4, D5, D6, D7, D9 +2
6
LED_Dual_2pin
D8, D12, D13, D14, D15, D18
2
D_Schottky
D16, D17
1
4.7u (ceramic/tant)
C1
1
100p
C2
9
100n
C3, C9, C10, C11, C12, C13, C14, C15 +1
1
10n
C4
2
10p
C5, C8
2
10u
C6, C7
4
220k
R1, R2, R3, R4
1
470k
R5
7
180
R6, R7, R18, R24, R33, R35, R36
17
100k
R8, R16, R17, R23, R27, R28, R29, R38 +9
Show 9 more
QtyPartRefs
4
1M
R9, R10, R21, R25
6
200k
R11, R14, R19, R30, R31, R32
1
4.7k
R12
6
1k
R13, R26, R34, R41, R48, R57
2
10k
R15, R20
1
1.5M
R22
1
10M
R37
1
33k
R42
6
51
R43, R44, R45, R49, R55, R56

Kinky lynx design files

The KiCad project lives in the tpcarlson/synth-diy repository on GitHub; these links point at the commit this page was built from.

Kinky lynx: common questions

How big is the Kinky lynx PCB?

The Kinky lynx measures 40.3 × 128.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kinky lynx?

129 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kinky lynx design files?

From the tpcarlson/synth-diy repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Kinky lynx design in my own project?

The repository has no license, so all rights stay with tpcarlson. Use it as a reference, and ask the author before reusing the design.
