About the ChrisBox PCB
ChrisBox is an open source ESP32 PCB design by TUDA-MUST, published on GitHub under the CC-BY-4.0 license. It is a 4-layer board measuring 78 × 46.3 mm, with 177 components from 33 distinct parts.
Its main chip is the ESP32-S3-MINI-1-N8, from the ESP32 family. Other key parts include the TP4056, TPS73616DBV, ADS1220XPW, AD8605ARTZ and USBLC6-2P6. By type, the board carries 81 capacitors, 49 resistors, 16 ICs, 8 LEDs, 7 connectors and 3 transistors.
It belongs with the audio designs in this gallery.
From the project

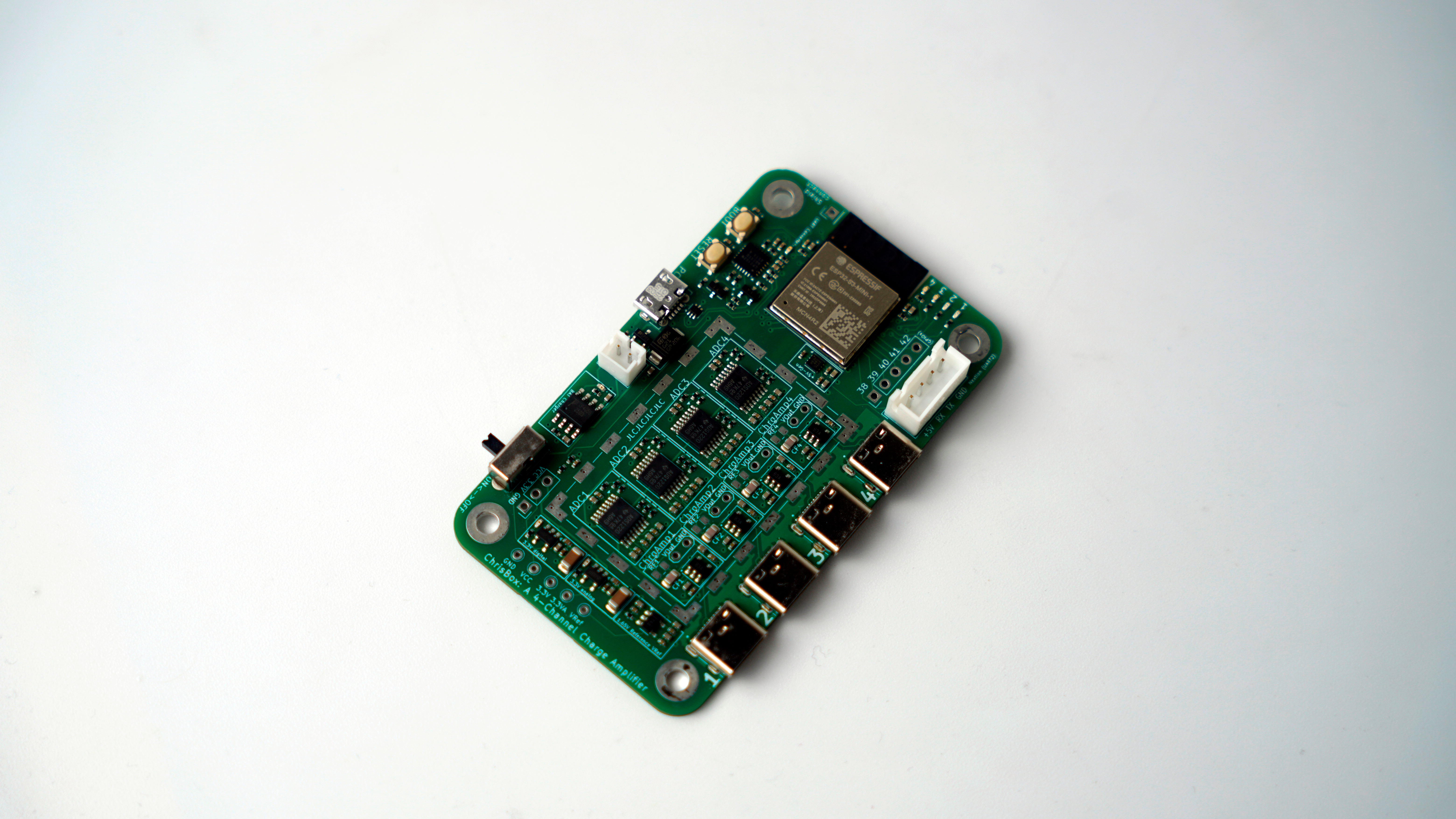

4 Channel Charge Amplifier PCB
Welcome to the PCB folder of ChrisBox! The ChrisBox PCB is designed with KiCad. The Project files and generated Exports are found here.
- ./exports - The .step-export of the ChrisBox PCB. - ./interactive bom - The interactive HTML BOM (made with Interactive Html Bom). It is useful for handsoldering or just looking up which component has to go where. - ./jlcpcb - Output data from the KiCAD JLCPCB tools. This data can be used for ordering a PCB with components. Always re-check the data yourself! - ./models - Additional footprints and models, which are not included in KiCad and its plugins…
Main components on the ChrisBox
ChrisBox bill of materials (BOM)
177 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TP4056 | SOP-8 | IC1 |
| 1 | TPS73616DBV | SOT-23-5 | U1 |
| 1 | ESP32-S3-MINI-1-N8 | XCVR_ESP32-S3-MINI-1-N8 | U2 |
| 4 | ADS1220XPW ADS1220xPW | TSSOP-16_4.4x5mm_P0.65mm | U3, U5, U7, U9 |
| 4 | AD8605ARTZ | SOT-23-5 | U4, U6, U8, U10 |
| 1 | USBLC6-2P6 | SOT-666 | U11 |
| 1 | CP2102N-AXX-XQFN24 CP2102N-Axx-xQFN24 | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm | U12 |
| 2 | AP2112K-3.3 | SOT-23-5 | U13, U14 |
| 1 | LM2775DSG | WSON-8-1EP_2x2mm_P0.5mm_EP0.9x1.6mm_ThermalVias | U15 |
| 2 | SS8050-G | TRANS_SS8050-G | Q1, Q2 |
| 1 | DMG2305 | SOT-23 | Q3 |
| 1 | C131337 JST-PH | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | X1 |
| 1 | CONN_01X04_SOCKET Conn_01x04_Socket | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J3 |
| 1 | RFShield_TwoPieces | Laird_Technologies_BMI-S-205-F_38.10x25.40mm_HandSolder_SelfMade | J6 |
| 4 | TYPE-C-31-M-12 | HRO_TYPE-C-31-M-12 | J7, J8, J9, J10 |
| 1 | C505111 USB_B_Micro | USB_Micro-B_Molex-105017-0001 | J11 |
| 2 | SKRPABE010 | SW_SKRPABE010 | BOOT_SWITCH1, RESET_SWITCH1 |
| 4 | 360P 360p | C_0805_2012Metric | CF1, CF2, CF3, CF4 |
| 4 | 2G | R_0805_2012Metric | RF1, RF2, RF3, RF4 |
| 1 | SK-12D02-VG3 | SK12D02VG3 | S1 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | LED | LED_0402_1005Metric | LED_CHRG1, LED_INFO1, LED_INFO2, LED_INFO3, LED_INFO4, LED_PWR1, LED_PWR2, LED_PWR3 |
| 1 | C163541 D_Schottky | D_SMA | D1 |
| 36 | 10U 10u | C_0402_1005Metric | C1, C3, C5, C11, C14, C16, C17, C19 +28 |
| 36 | 100N 100n | C_0402_1005Metric | C2, C4, C6, C9, C10, C12, C13, C18 +28 |
| 2 | 100U 100u | C_1206_3216Metric | C7, C8 |
| 5 | 1u | C_0402_1005Metric | C15, C72, C74, C76, C78 |
| 2 | 4.7U 4.7u | C_0402_1005Metric | C66, C68 |
| 7 | 470 | R_0402_1005Metric | R1, R2, R4, R5, R36, R51, R53 |
| 21 | 47 | R_0402_1005Metric | R3, R13, R14, R15, R16, R17, R19, R20 +13 |
| 7 | 10K 10k | R_0402_1005Metric | R6, R7, R40, R44, R47, R49, R52 |
| 7 | 1k | R_0402_1005Metric | R12, R18, R24, R30, R37, R43, R48 |
| 6 | 0 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R38, R39, R41, R42, R45, R50 |
| 1 | 4K7 4k7 | R_0402_1005Metric | R46 |
ChrisBox design files
The KiCad project lives in the TUDA-MUST/ChrisBox repository on GitHub; these links point at the commit this page was built from.
ChrisBox: common questions
What microcontroller does the ChrisBox use?
The ChrisBox is built around the ESP32-S3-MINI-1-N8, from the ESP32 family.
How big is the ChrisBox PCB?
The ChrisBox measures 78 × 46.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the ChrisBox?
177 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ChrisBox design files?
From the TUDA-MUST/ChrisBox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ChrisBox design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which TUDA-MUST chose for the repository.
Can I test firmware for the ChrisBox without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
