Revision-Project-4 layer-PCB-with layout, top view — open source ESP32 board by Waqar-98

About the Revision-Project-4 layer-PCB-with

Revision-Project-4 layer-PCB-with is an open source ESP32 PCB design by Waqar-98, published on GitHub. It is a 4-layer board measuring 89.9 × 52.8 mm, with 84 components from 42 distinct parts.

Its main chip is the ESP32-C3-WROOM-02-H4, from the ESP32 family. Other key parts include the MCP73871-4CCI/ML, LM1117MPX-3.3/NOPB, CP2102N-A02-GQFN20, USBLC6-2SC6 and W25Q32JVSSIQ. By type, the board carries 33 resistors, 25 capacitors, 8 ICs, 6 diodes, 4 connectors and 3 transistors.

It belongs with the sensors, iot & wireless and power & battery designs in this gallery.

From the project

A battery-powered, USB-C rechargeable ESP32-C3 sensor node integrating environmental (temperature/humidity/pressure), ambient light, and sound sensing, with onboard USB-to-UART programming, microSD data logging, and an I2C display header. This repository is a revision of the orig

A battery-powered, USB-C rechargeable ESP32-C3 sensor node integrating environmental (temperature/humidity/pressure), ambient light, and sound sensing, with onboard USB-to-UART programming, microSD data logging, and an I2C display header. This repository is a revision of the original 2-layer design, re-laid-out as a 4-layer PCB (dedicated inner power/ground planes) for improved signal integrity and routing.

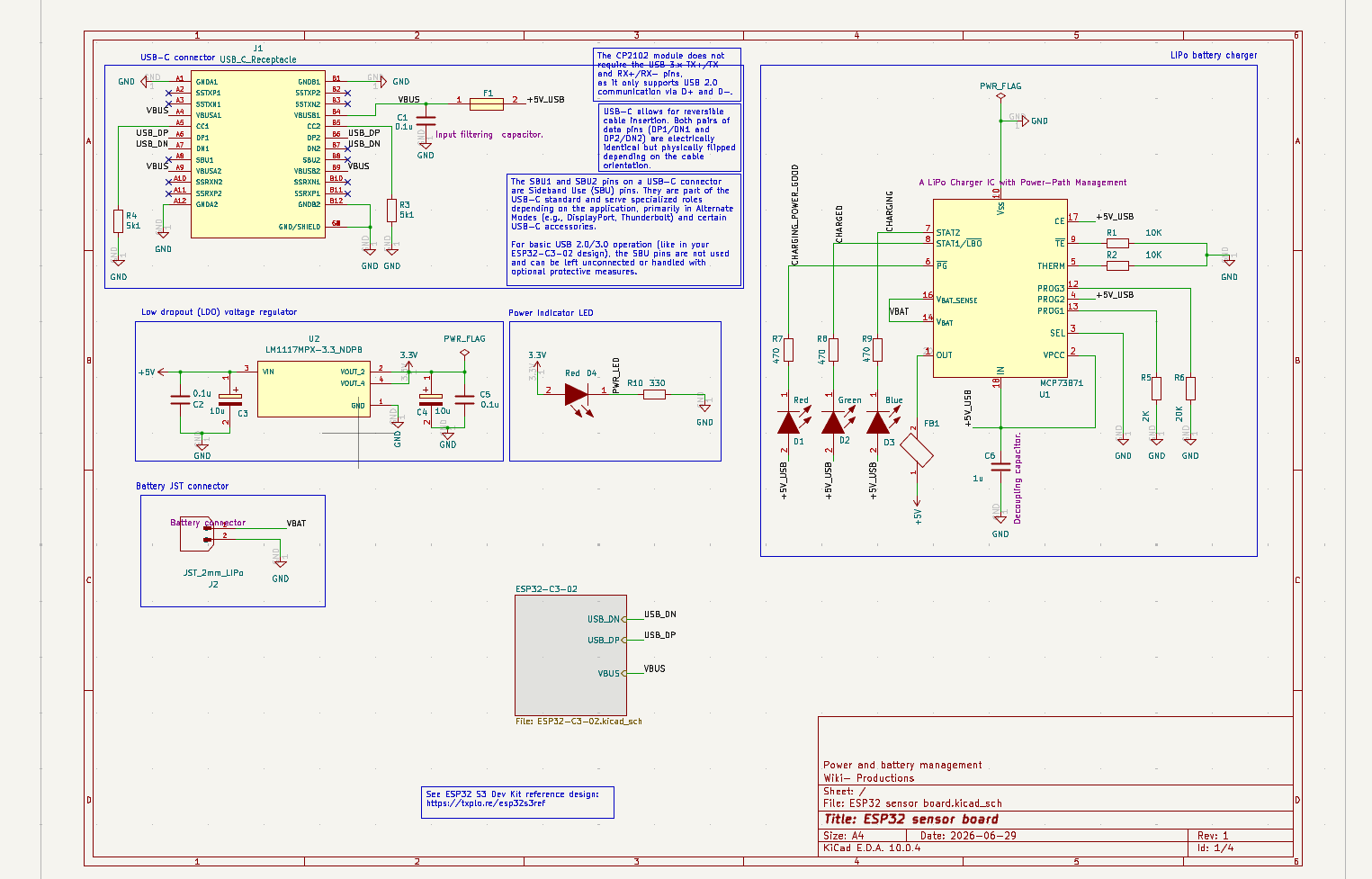

Revision-Project-4 layer-PCB-with, from the project README
From the project README

Main components on the Revision-Project-4 layer-PCB-with

MCP73871-4CCI/MLLM1117MPX-3.3/NOPBESP32-C3-WROOM-02-H4CP2102N-A02-GQFN20USBLC6-2SC6W25Q32JVSSIQBME280MAX4466EXK+T

Revision-Project-4 layer-PCB-with bill of materials (BOM)

84 components, 42 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP73871-4CCI/ML
MCP73871
U1
1
LM1117MPX-3.3/NOPB
LM1117MPX-3.3_NOPB
U2
1
ESP32-C3-WROOM-02-H4
U3
1
CP2102N-A02-GQFN20
U4
1
USBLC6-2SC6
U5
1
W25Q32JVSSIQ
U6
1
BME280
U7
1
MAX4466EXK+T
U8
1
TEMT6000X01
Q1
2
BC817
Q2, Q3
1
USB_C_Receptacle
J1
1
GSD090012SEU
J3
1
B4B-XH-AM
J4
1
Conn_01x05
J6
1
0ZCH0110AF2E
F1
1
CMC-5042PF-AC
MK1
2
1101NE
SW1, SW2
3
LTST-C170KRKT
Red
D1, D4, D6
2
LTST-C170GKT
Green
D2, D5
1
LTST-C170TBKT
Blue
D3
Show 22 more
QtyPartRefs
1
FBMJ2125HM330-T
FB1
12
0.1u
C1, C2, C5, C8, C10, C13, C14, C15 +4
4
T491A106K010AT7280
10u
C3, C4, C7, C12
3
1u
C6, C11, C22
1
T491A106K010AT7280
4.7u
C9
3
10n
C17, C24, C25
1
10u
C19
1
100p
C20
7
10K
R1, R2, R19, R23, R32, R33, R34
2
5k1
R3, R4
3
2K
R5, R26, R28
1
20K
R6
3
470
R7, R8, R9
3
330
R10, R14, R18
2
1K
R11, R30
1
22K1
R12
1
47K5
R13
4
50
R15, R16, R20, R22
1
35WR100KLFTR
R17
2
4K7
R24, R25
2
1M
R27, R29
1
22K
R31

Revision-Project-4 layer-PCB-with design files

The KiCad project lives in the Waqar-98/Revision-Project-4_layer-PCB-with-schematic repository on GitHub; these links point at the commit this page was built from.

Revision-Project-4 layer-PCB-with: common questions

What microcontroller does the Revision-Project-4 layer-PCB-with use?

The Revision-Project-4 layer-PCB-with is built around the ESP32-C3-WROOM-02-H4, from the ESP32 family.

How big is the Revision-Project-4 layer-PCB-with?

The Revision-Project-4 layer-PCB-with measures 89.9 × 52.8 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Revision-Project-4 layer-PCB-with?

84 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Revision-Project-4 layer-PCB-with design files?

From the Waqar-98/Revision-Project-4_layer-PCB-with-schematic repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Revision-Project-4 layer-PCB-with design in my own project?

The repository has no license, so all rights stay with Waqar-98. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Revision-Project-4 layer-PCB-with without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
