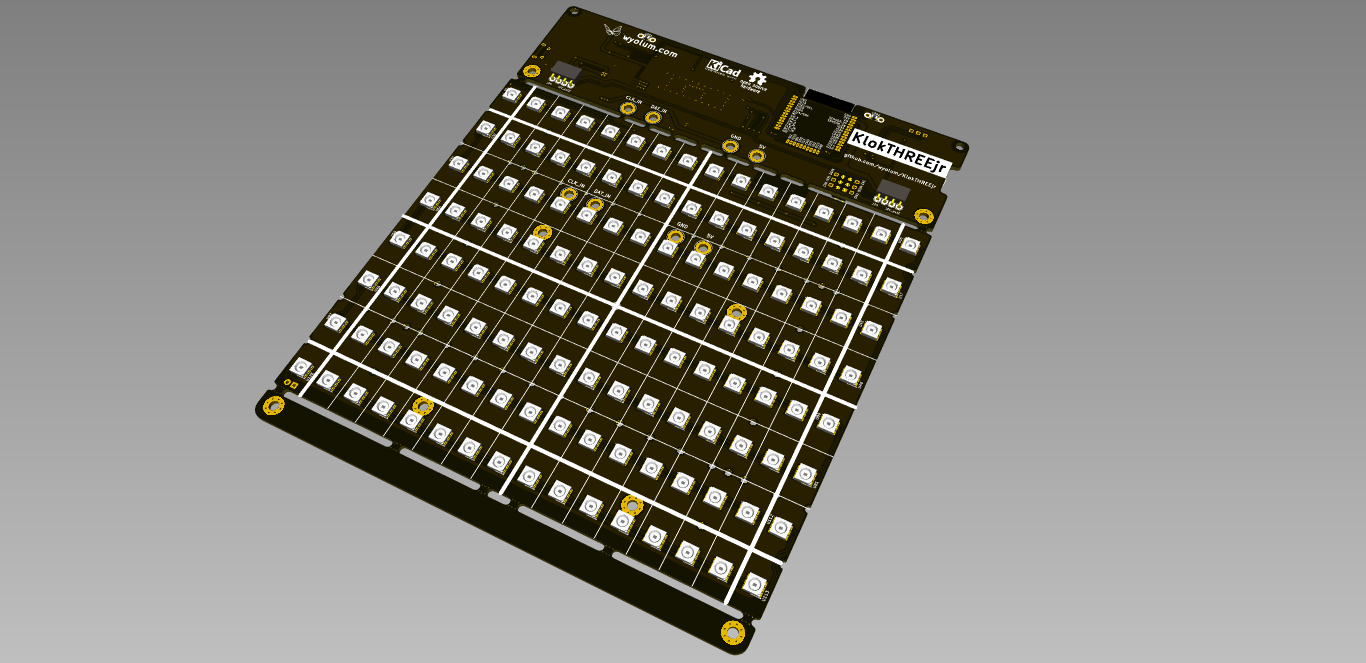

About the KlokTHREEjr PCB
KlokTHREEjr is an open source ESP32 PCB design by wyolum, published on GitHub. It is a 2-layer board measuring 162.6 × 194.3 mm, with 273 components from 50 distinct parts.
Its main chip is the ESP-wroom-32, from the ESP32 family. Other key parts include the APA102, DS3231N, 1117-33 and CP2102N-A01-GQFN28. By type, the board carries 132 ICs, 31 capacitors, 21 resistors, 19 connectors, 6 switches and 3 test points.
It belongs with the displays & leds designs in this gallery.
From the project
RGB LED matrix for text and animation display.
[CERN Open Hardware Licence v1.2 ]:http://www.ohwr.org/attachments/2388/cernohlv12.txt

Main components on the KlokTHREEjr
KlokTHREEjr bill of materials (BOM)
273 components, 50 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 128 | APA102 | APA102 | U1, U2, U3, U4, U5, U6, U7, U8 +120 |
| 1 | ESP-wroom-32 | esp_wroom_32 | U129 |
| 1 | DS3231N | DS3231 | U130 |
| 1 | 1117-33 | SOT-223-3_TabPin2 | U131 |
| 1 | CP2102N-A01-GQFN28 | QFN-28-1EP_5x5mm_Pitch0.5mm | U132 |
| 1 | DDC114TU | SOT-363_SC-70-6 | Q1 |
| 2 | CLK_IN | 1pin | J1, J9 |
| 2 | DAT_IN | 1pin | J2, J10 |
| 2 | 5V | 1pin | J7, J15 |
| 2 | GND | 1pin | J8, J16 |
| 1 | MISO | BreakOutPad | J17 |
| 1 | 3V3 | BreakOutPad | J18 |
| 1 | SCK | BreakOutPad | J19 |
| 1 | SPI | Header_ISP | J20 |
| 1 | MOSI | BreakOutPad | J21 |
| 1 | RST | BreakOutPad | J22 |
| 1 | GND | BreakOutPad | J23 |
| 1 | I2C_ext1 | Header_4x1 | J24 |
| 1 | I2C_ext2 | Header_4x1 | J25 |
| 1 | USB_micro | USB_Micro-B_Molex-105017-0001 | P1 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OUT_CLK_DAT | Pin_Header_Straight_1x02 | P2 |
| 8 | Mouse_Bite | mouse-bite-2.54mm-slot_OSH | BITE1, BITE2, BITE3, BITE4, BITE5, BITE6, BITE7, BITE8 |
| 1 | Batt_RTC | CR2032_SMD2 | BT1 |
| 44 | hole_baffle | hole_baffle_2mm | HB1, HB2, HB3, HB4, HB5, HB6, HB7, HB8 +36 |
| 1 | LED_PWR_EN | R_0402 | JP1 |
| 2 | LDR | r_0805_ldr_2 | LDR1, LDR2 |
| 1 | SW-ENTER | SW_SMD | S1 |
| 1 | SW-INC | SW_SMD | S2 |
| 1 | SW-EN | SW_SMD | S3 |
| 1 | SW-BOOT | SW_SMD | S4 |
| 1 | SW-DEC | SW_SMD | S5 |
| 1 | SW-MODE | SW_SMD | S6 |
| 1 | ~RST | BreakOutPad | TP1 |
| 1 | SQR | BreakOutPad | TP2 |
| 1 | 32kHz | BreakOutPad | TP3 |
| 1 | RClamp0854P.TCT | SOT-143 | D1 |
| 1 | LED_PWR | LED-0805 | D2 |
| 2 | 330E | r_0805 | L1, L2 |
| 22 | 100nF | c_0805 | C1, C2, C3, C4, C5, C6, C7, C8 +14 |
| 3 | 10uF/25V | c_2917 | C17, C23, C25 |
| 1 | 22uF/25V | c_2917 | C18 |
| 3 | 1nF | c_0805 | C19, C20, C21 |
| 1 | 100uF/6V3 | c_2917 | C27 |
| 1 | 1uF/10V | c_0805 | C28 |
| 5 | 470R | r_0805 | R1, R2, R16, R18, R22 |
| 9 | 10k | r_0805 | R3, R6, R7, R10, R11, R12, R13, R24 +1 |
| 1 | 1k | r_0805 | R4 |
| 2 | 4K7 | r_0805 | R8, R9 |
| 2 | 0R NC | r_0805 | R19, R20 |
| 2 | 0R | r_0805 | R21, R23 |
KlokTHREEjr design files
The KiCad project lives in the wyolum/KlokTHREEjr repository on GitHub; these links point at the commit this page was built from.
KlokTHREEjr: common questions
What microcontroller does the KlokTHREEjr use?
The KlokTHREEjr is built around the ESP-wroom-32, from the ESP32 family.
How big is the KlokTHREEjr PCB?
The KlokTHREEjr measures 162.6 × 194.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KlokTHREEjr?
273 components, from 50 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the KlokTHREEjr design files?
From the wyolum/KlokTHREEjr repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the KlokTHREEjr design in my own project?
The repository has no license, so all rights stay with wyolum. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the KlokTHREEjr without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
