FPGA-Board

About the FPGA-Board

FPGA-Board is an open source FPGA PCB design by AbdulAjadi1, published on GitHub. It is a 8-layer board measuring 132.6 × 97.9 mm, with 569 components from 154 distinct parts.

Its main chip is the XC7Z020-1CLG400I__, from the FPGA family. Other key parts include the IS43TR16256B-125KBLI, PCA9306TDCURQ1, FT2232HQ, TOTX1950AF and TORX1950AF. By type, the board carries 241 resistors, 211 capacitors, 38 ICs, 23 connectors, 17 diodes and 8 inductors.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

All that pertains to FPGA development board

A custom-designed 8-layer FPGA development board based on the Xilinx Zynq-7000 SoC, featuring DDR3 memory, high-speed interfaces, and multi-rail power architecture. Designed from schematic through PCB layout and hardware bring-up.

This project is a custom FPGA development board inspired by the Digilent Arty Z7 platform, designed around the Xilinx Zynq-7000 SoC. The board serves as a general-purpose hardware development and learning platform, with an emphasis on FPGA and ARM (PS/PL) co-design, sound, power and signal-integrity practices, manufacturable industry-style PCB layout, and realistic…

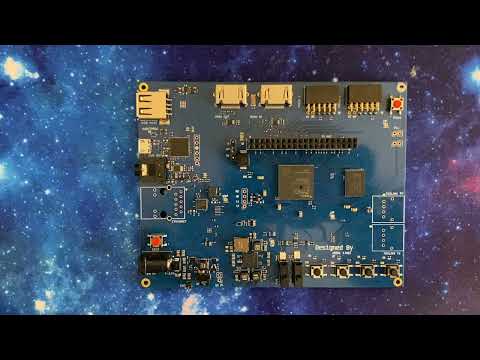

FPGA-Board, from the project README — From the project README

Main components on the FPGA-Board

IS43TR16256B-125KBLIXC7Z020-1CLG400I__PCA9306TDCURQ1FT2232HQTOTX1950AFTORX1950AFSIP32510DT-T1-GE3 TPD1E05U06DPYR NC7SZ125M5X RTL8211F-CG TXS02612RTWRTLV62130RGTT93LC56B-I/SN REF3012 W25Q128JVSIQNL17SZ17XV5T2GNC7WZ07P6X TPS65400RGZT TPD4E05U06DQAR TPS2051BDBVRTUSB1210BRHBTMBT3904DW1T1GAD8592ARM

FPGA-Board bill of materials (BOM)

569 components, 154 distinct parts.

Qty	Part	Footprint	Refs
1	IS43TR16256B-125KBLI	BGA96C80P9X16_900X1300X120	IC1
1	XC7Z020-1CLG400I__	CLG400_ZYNQ-7000_AMD	U1
2	PCA9306TDCURQ1	DCU8	U2, U8
1	FT2232HQ	64QFN_FT2232HQ_FTD	U3
1	TOTX1950AF	TOTX1950AF_TOS	U5
1	TORX1950AF	TORX1950AF_TOS	U6
1	SIP32510DT-T1-GE3	SIP32510DT-T1-GE3_VIS	U9
6	TPD1E05U06DPYR	DIO_TPD1E05U06DPYR	U10, U34, U35, U37, U38, U39
1	NC7SZ125M5X	SC-74A_318BQ_ONS	U11
1	RTL8211F-CG	RTL8211F-CG_RTK	U12
1	TXS02612RTWR	RTW24_2P45X2P45	U13
1	TLV62130RGTT	TLV62130RGTT	U14
1	93LC56B-I/SN	SOIC8-N_MC_MCH	U15
1	REF3012	SOT-23	U16
1	W25Q128JVSIQ	SOIC127P790X216-8N	U17
2	NL17SZ17XV5T2G	SOT553-5_ONS	U18, U19
3	NC7WZ07P6X	NC7WZ07P6X	U20, U21, U23
1	TPS65400RGZT	RGZ0048B	U22
5	TPD4E05U06DQAR	IC_TPD4E05U06DQAR	U24, U27, U28, U29, U30
1	TPS2051BDBVR	DBV0005A_L	U25

Show 134 more

Qty	Part	Footprint	Refs
1	TUSB1210BRHBT	RHB32_3P45X3P45	U26
3	MBT3904DW1T1G	SOT236	U31, U32, U33
1	AD8592ARM	RM_10_ADI	U36
2	DMG2305UX-13	DMG2305UX_13	Q7, Q10
2	FDV301N	FDV301N	Q8, Q9
1	ABMM-25.000MHZ-B2-T	XTAL_ABMM-25.000MHZ-B2-T	Y1
1	SG-8018CE_50.0000M-TJHPA	OSC_SG-8018CE_50.0000M-TJHPA	Y2
1	SIT1602AC-12-33E-12.000000G	SIT1602AC1233E12000000G	Y3
1	ABM8G-26.000MHZ-18-D2Y-T	CRYSTAL_ABM8G_ABR	Y4
1	PJ-102AH	CUI_PJ-102AH	J1
1	GND	PinHeader_1x01_P2.54mm_Vertical	J2
1	Conn_01x03_Pin	PinHeader_1x03_P2.54mm_Vertical	J3
1	Conn_01x04_Pin	PinHeader_1x04_P2.54mm_Vertical	J4
3	Conn_01x02_Pin	PinHeader_1x02_P2.54mm_Vertical	J5, J8, J17
1	ADC_CONN	PinSocket_1x04_P2.54mm_Vertical	J6
1	JTAG Header	PinHeader_1x06_P2.54mm_Vertical	J7
1	SJ1-3525NG	CUI_SJ1-3525NG	J9
2	10029449-001RLF	AMPHENOL_10029449-001RLF	J10, J11
1	HFJ11-1G01ERL	HALO_FASTJACK	J12
1	503398-1892	MOLEX_503398-1892	J13
1	PRT-14017	CONN_PRT-14017_SPK	J14
1	USB-A-S-X-X-SM2	SAMTEC_USB-A-S-X-X-SM2	J15
1	10118194-0001LF	AMPHENOL_10118194-0001LF	J16
1	+3V3	PinHeader_1x01_P2.54mm_Vertical	J18
1	+1V5	PinHeader_1x01_P2.54mm_Vertical	J20
1	+1V0	PinHeader_1x01_P2.54mm_Vertical	J21
1	VCC_1V8IO	PinHeader_1x01_P2.54mm_Vertical	J22
2	PMOD-Device-x2-Type-Generic-Alt	CONN_PPPC062LJBN-RC_SUL	P1, P2
1	PTS645SK50SMTR92LFS	SW_PTS645SK50SMTR92LFS	BTNR1
2	1SS352	USC_TOS	CR1, CR2
2	BZT52C12-7-F	SOD123_DIO	CR3, CR7
1	PMEG1030EJ	SOD323F_NXP	CR6
1	PTS120630V012	PTS120630V012	F1
1	PRG18BB330MB1RB	FUSE_PRG-18_MUR	F2
8	600Ohm/100Mhz	BEADC1608X95N	FL1, FL2, FL3, FL4, FL5, FL6, FL8, FL9
1	PTS645SK50SMTR92LFS	SW_PTS645SK50SMTR92LFS	S1
1	BTN1	TS-1002S-050xxC_XNP	S6
1	BTN0	TS-1002S-050xxC_XNP	S7
1	BTN2	TS-1002S-050xxC_XNP	S8
1	BTN3	TS-1002S-050xxC_XNP	S9
2	SW_SPDT	SW_EG1218	SW0, SW1
11	LED	LED_0402_1005Metric	D1, D3, D4, D5, D6, D9, D10, D11 +3
1	MBRS340T3G	DIOM7959X261N	D2
2	SMLVN6RGB	LED_SMLV56_ROM	D7, D8
2	BAS16XV2T1G	SODFL1608X70N	D26, D27
1	SMBJ15CA-E3/52 SMBJ15CA-E3_52	DIOM5436X244N	D37
1	47uH Sunlord	IND_TAIYO_CBC2012_TAY	L1
1	120Ohm / 100Mhz	IND_BLM18_0603_MUR	L2
2	NR5040T2R2N/2.2uH	IND_TAIYO_NR5040_TAY	L3, L4
1	SRP6540-1R5M 1.5uH	IND_SRP6540-1R5M	L5
2	NR5040T4R7N/ 4.7uH	IND_TAIYO_NR5040_TAY	L6, L7
1	NR4018T3R3M	NR4018T3R3M	L8
59	100nF	C_0201_0603Metric	C1, C2, C4, C9, C12, C13, C14, C17 +51
1	820pF 5%	C_0402	C3
5	10nF	C_0201_0603Metric	C5, C8, C34, C35, C184
4	1uF 10V	C_0402	C6, C21, C144, C182
33	4.7uF	C_0402	C7, C20, C27, C58, C64, C67, C69, C72 +25
5	100nF 10V	C_0402	C10, C11, C30, C183, C186
1	1nF	C_0402	C16
30	470nF	C_0201_0603Metric	C26, C82, C83, C87, C88, C89, C90, C91 +22
1	22nF	C_0402	C29
10	10uF 10V	C_0805	C31, C137, C143, C192, C193, C194, C195, C196 +2
16	47nF	C_0201_0603Metric	C36, C37, C38, C39, C40, C41, C42, C43 +8
3	GA342DR7GF102KW02L	CAPC4520X220N	C52, C66, C222
2	27pF	C_0201_0603Metric	C60, C61
11	100uF	C_0805	C85, C128, C129, C130, C131, C132, C133, C134 +3
1	4.7nF	C_0402	C116
2	47uF	C_0805	C125, C138
9	22uF/10V	C_0805	C139, C140, C141, C142, C156, C164, C167, C170 +1
1	3.3uF/10V	C_0603	C145
1	1.5nF	C_0201_0603Metric	C147
4	33nF	C_0201_0603Metric	C148, C154, C157, C160
4	10pF	C_0201_0603Metric	C149, C151, C153, C159
1	150pF	C_0201_0603Metric	C150
1	1.2nF	C_0201_0603Metric	C152
1	330pF	C_0201_0603Metric	C158
2	1nF 5%	C_0402	C175, C178
1	150pF 5%	C_0402	C177
1	T491B157M006AT	CAPMP3.7X2.8_2.1N_KEM	C180
1	2.2uF	C_0402	C188
4	330	R_0402	R1, R2, R13, R14
21	0	R_0402	R3, R16, R67, R68, R69, R70, R71, R72 +13
8	40.2 1%	R_0402	R4, R8, R234, R235, R236, R237, R238, R239
1	100 1%	R_0402	R5
2	80.6 1%	R_0402	R6, R7
1	1.3K 1%	R_0402	R9
3	2K 1%	R_0402	R10, R196, R210
26	10K 1%	R_0402	R11, R15, R17, R18, R19, R20, R21, R22 +18
1	10.7K 1%	R_0402	R12
2	86.6	R_0402	R30, R58
2	150	R_0402	R31, R59
2	75	R_0402	R32, R60
14	2.2K	R_0402	R33, R34, R35, R55, R56, R57, R61, R62 +6
9	20K 1%	R_0402	R36, R37, R38, R40, R42, R48, R49, R85 +1
10	1K	R_0402	R39, R41, R46, R47, R127, R128, R129, R130 +2
2	200	R_0402	R44, R184
17	49.9	R_0402	R50, R134, R135, R136, R137, R138, R139, R140 +9
12	22	R_0201_0603Metric	R51, R111, R112, R113, R118, R119, R120, R121 +4
1	5.6K	R_0402	R52
11	4.7K	R_0201_0603Metric	R53, R54, R96, R116, R155, R160, R167, R169 +3
5	100K	R_0402	R83, R98, R197, R214, R215
4	4.7k	R_0402	R84, R93, R176, R177
1	13.3K/1%	R_0402	R87
1	69.8K/1%	R_0402	R88
1	62k/1%	R_0402	R90
2	15K	R_0402	R92, R187
1	680	R_0201_0603Metric	R94
1	240 1%	R_0402	R95
1	33K	R_0402	R97
1	180K	R_0402	R100
1	75K	R_0402	R101
1	150K	R_0402	R102
1	8.87K/1%	R_0402	R103
2	10.2K/1%	R_0402	R104, R108
1	16K/1%	R_0402	R106
1	31.6K/1%	R_0402	R107
1	8.2K/1%	R_0402	R109
1	30K/1%	R_0402	R110
30	220	R_0402	R114, R115, R189, R190, R191, R192, R216, R217 +22
2	140	R_0402	R122, R123
5	1.5K	R_0402	R125, R126, R132, R133, R170
2	27K	R_0402	R142, R143
3	1MEG	R_0402	R153, R181, R198
3	1.2K	R_0201_0603Metric	R157, R158, R159
6	0	R_0201_0603Metric	R161, R162, R163, R164, R165, R166
1	2.49K 1%	R_0402	R172
3	390	R_0402	R173, R174, R175
1	47K	R_0402	R185
1	82	R_0402	R188
2	26.1K 1%	R_0402	R194, R195
1	330K	R_0402	R199
2	510	R_0201_0603Metric	R205, R208
1	12K	R_0201_0603Metric	R213
2	200k	R_0402	R240, R241

FPGA-Board design files

The KiCad project lives in the AbdulAjadi1/FPGA-Board repository on GitHub; these links point at the commit this page was built from.

LayoutFPGA-BOARD.kicad_pcb
SchematicFPGA-BOARD.kicad_sch

FPGA-Board: common questions

What microcontroller does the FPGA-Board use?

The FPGA-Board is built around the XC7Z020-1CLG400I__, from the FPGA family.

How big is the FPGA-Board?

The FPGA-Board measures 132.6 × 97.9 mm, has 8 copper layers and is 1.6436 mm thick.

How many components are on the FPGA-Board?

569 components, from 154 distinct parts. The full bill of materials is listed on this page.

Where can I download the FPGA-Board design files?

From the AbdulAjadi1/FPGA-Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FPGA-Board design in my own project?

The repository has no license, so all rights stay with AbdulAjadi1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the FPGA-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
